B72242L Series

Catalog

VARISTOR 510V 65KA ENCASED DISC

Part	Mounting Type	Package / Case	Maximum DC Volts [Max]	Capacitance @ Frequency	Energy	Current - Surge	Operating Temperature [Max]	Operating Temperature [Min]	Maximum AC Volts [Max]	Varistor Voltage (Typ)	Varistor Voltage (Min) [Min]	Varistor Voltage (Max) [Max]	Number of Circuits	Package / Case [diameter]	Varistor Voltage (Max)
EPCOS - TDK Electronics B72242L0321K100	Chassis Mount	Encased Disc	420 V	1 kHz 2300 pF	640 J	65 kA	85 °C	-25 °C	320 V	510 V	459 V	561 V	1
EPCOS - TDK Electronics B72242L0381K100	Chassis Mount	Disc	505 V	1900 pF	800 J	65 kA	85 C	-40 ¯C	385 V	620 V	558 V		1	40 mm
EPCOS - TDK Electronics B72242L0381K102	Chassis Mount	Disc	505 V	1900 pF	800 J	65 kA	85 C	-40 ¯C	385 V	620 V	558 V		1	40 mm
EPCOS - TDK Electronics B72242L0271K102	Chassis Mount	Encased Disc	350 V	2700 pF	550 J	65 kA	85 °C	-25 °C	275 V	430 V	387 V		1		473 V

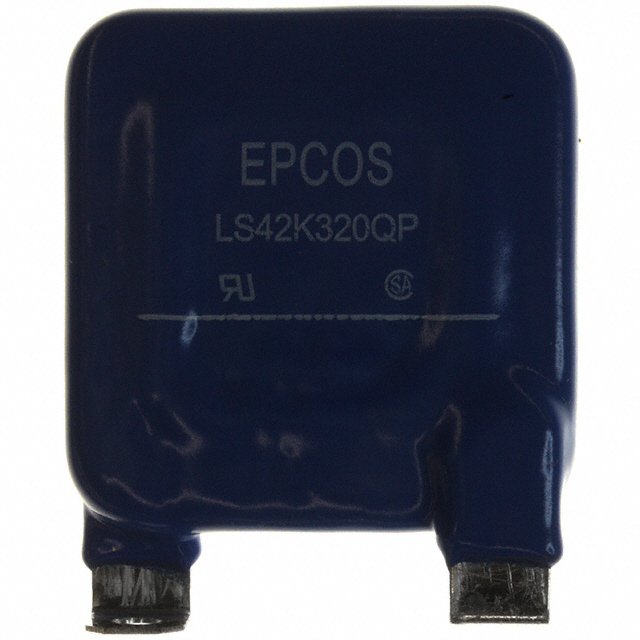

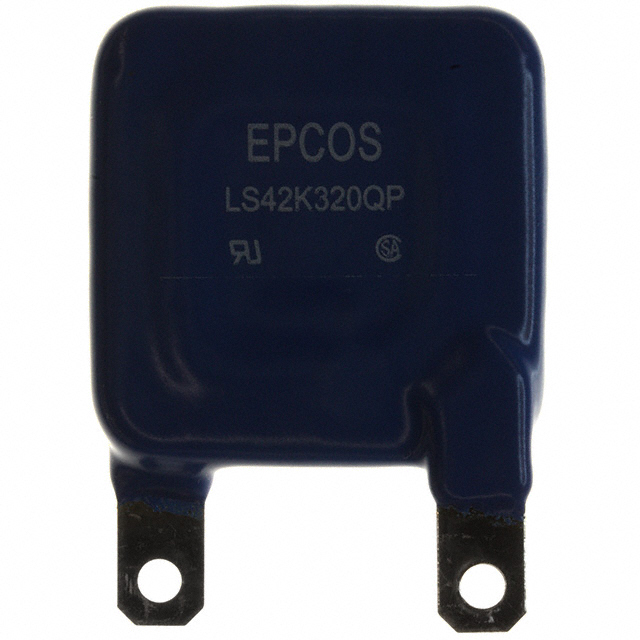

EPCOS - TDK Electronics B72242L0321K102	Chassis Mount	Encased Disc	420 V	1 kHz 2300 pF	640 J	65 kA	85 °C	-25 °C	320 V	510 V	459 V	561 V	1
EPCOS - TDK Electronics B72242L0461K102	Chassis Mount	Disc	615 V	1600 pF	960 J	65 kA	85 C	-40 ¯C	460 V	750 V	675 V	825 V	1	40 mm

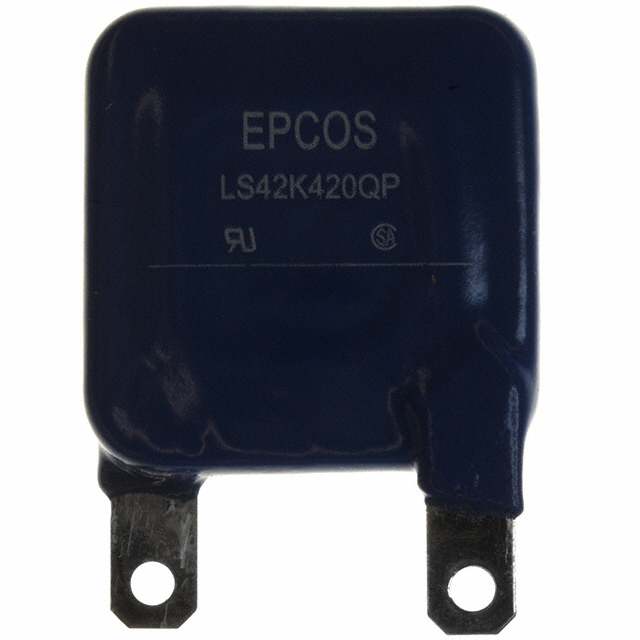

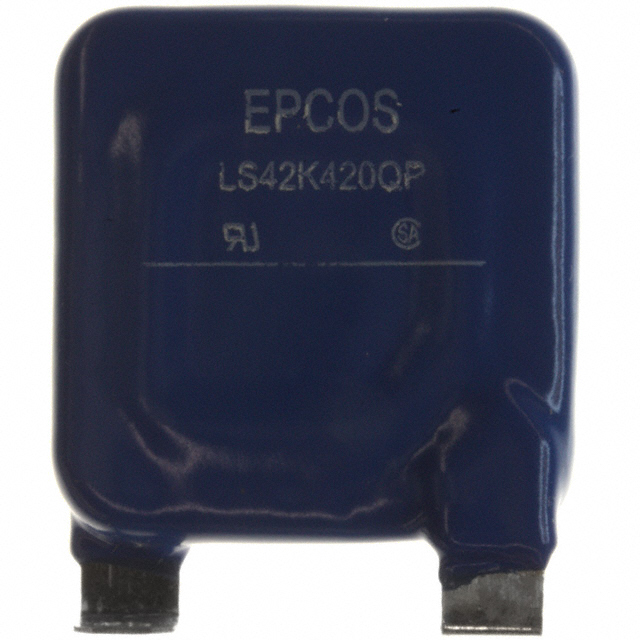

EPCOS - TDK Electronics B72242L0421K102	Chassis Mount	Encased Disc	560 V	1 kHz 1800 pF	910 J	65 kA	85 °C	-25 °C	420 V	680 V	612 V	748 V	1
EPCOS - TDK Electronics B72242L0461K100	Chassis Mount	Disc	615 V	1600 pF	960 J	65 kA	85 C	-40 ¯C	460 V	750 V	675 V	825 V	1	40 mm

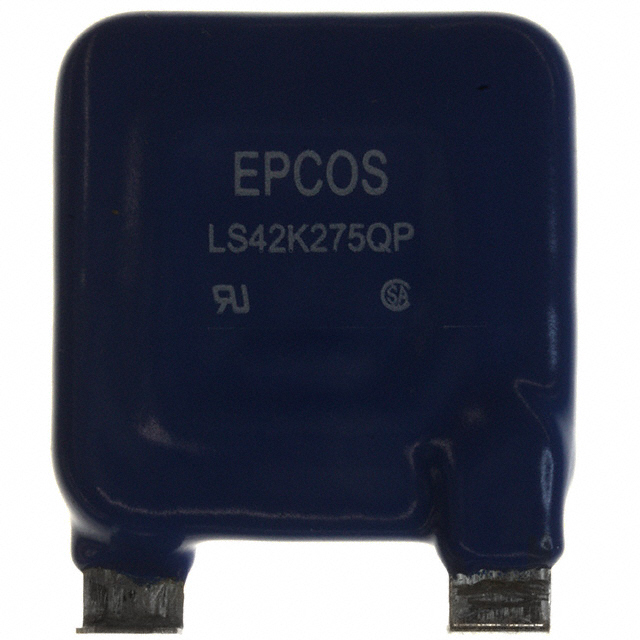

EPCOS - TDK Electronics B72242L0271K100	Chassis Mount	Encased Disc	350 V	2700 pF	550 J	65 kA	85 °C	-25 °C	275 V	430 V	387 V		1		473 V
EPCOS - TDK Electronics B72242L0441K102	Chassis Mount	Disc	585 V	1700 pF	950 J	65 kA	85 C	-40 ¯C	440 V	715 V	643.5 V	786.5 V	1	40 mm
