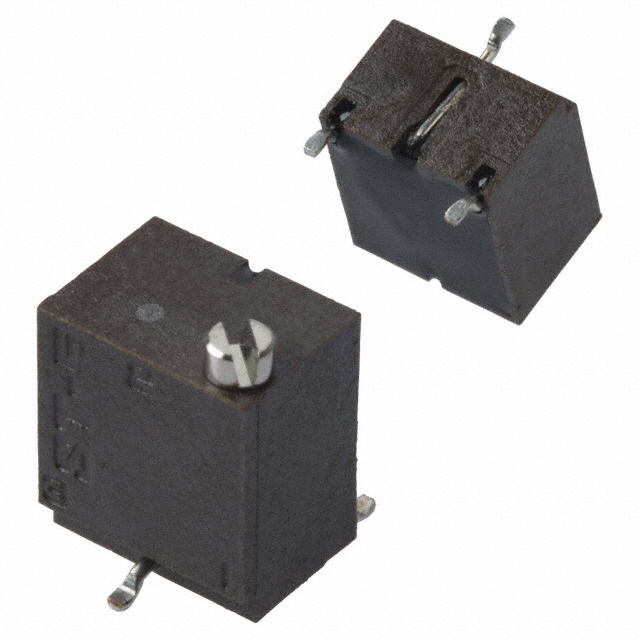

ST5ETW Series

Manufacturer: Nidec Components Corporation

Catalog

TRIMMER POT, CERMET, 20K, 14TURN, SMD

Part	Tolerance	Power (Watts)	Power (Watts)	Adjustment Type	Temperature Coefficient	Number of Turns	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Termination Style	Resistive Material	Resistance
Nidec Components Corporation ST-5ETW203	10 %	0.25 W	0.25 W	Top Adjustment	100 ppm/°C	14	Surface Mount	4.3 mm	0.236 in	6 mm	0.169 "	Gull Wing	Cermet	20 kOhms
Nidec Components Corporation ST-5ETW503	10 %	0.25 W	0.25 W	Top Adjustment	100 ppm/°C	14	Surface Mount	4.3 mm	0.236 in	6 mm	0.169 "	Gull Wing	Cermet	50000 Ohms
Nidec Components Corporation ST-5ETW504	10 %	0.25 W	0.25 W	Top Adjustment	100 ppm/°C	14	Surface Mount	4.3 mm	0.236 in	6 mm	0.169 "	Gull Wing	Cermet
Nidec Components Corporation ST-5ETW101	10 %	0.25 W	0.25 W	Top Adjustment	100 ppm/°C	14	Surface Mount	4.3 mm	0.236 in	6 mm	0.169 "	Gull Wing	Cermet	100 Ohms
Nidec Components Corporation ST-5ETW502	10 %	0.25 W	0.25 W	Top Adjustment	100 ppm/°C	14	Surface Mount	4.3 mm	0.236 in	6 mm	0.169 "	Gull Wing	Cermet	5 kOhms
Nidec Components Corporation ST-5ETW105	10 %	0.25 W	0.25 W	Top Adjustment	100 ppm/°C	14	Surface Mount	4.3 mm	0.236 in	6 mm	0.169 "	Gull Wing	Cermet	1 MOhms
Nidec Components Corporation ST-5ETW501	10 %	0.25 W	0.25 W	Top Adjustment	100 ppm/°C	14	Surface Mount	4.3 mm	0.236 in	6 mm	0.169 "	Gull Wing	Cermet	0.5 kOhms
Nidec Components Corporation ST-5ETW102	10 %	0.25 W	0.25 W	Top Adjustment	100 ppm/°C	14	Surface Mount	4.3 mm	0.236 in	6 mm	0.169 "	Gull Wing	Cermet	1000 Ohms
Nidec Components Corporation ST-5ETW500	10 %	0.25 W	0.25 W	Top Adjustment	250 ppm/°C	14	Surface Mount	4.3 mm	0.236 in	6 mm	0.169 "	Gull Wing	Cermet	50 Ohms
Nidec Components Corporation ST-5ETW103	10 %	0.25 W	0.25 W	Top Adjustment	100 ppm/°C	14	Surface Mount	4.3 mm	0.236 in	6 mm	0.169 "	Gull Wing	Cermet	10000 Ohms
