737-042 Series
Manufacturer: EDAC Inc.
Beta
⌘K

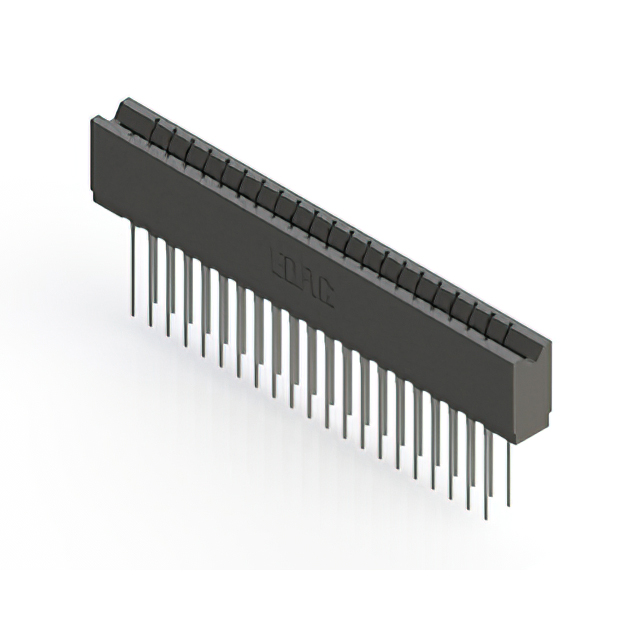

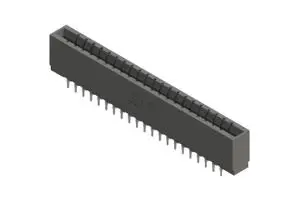

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 42 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Termination Rows [custom] | Material - Insulation | Card Type | Termination | Contact Type | Contact Finish | Number of Positions/Bay/Row [custom] | Pitch | Pitch | Number of Rows [custom] | Gender | Mounting Type | Color | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Card Thickness [Max] | Card Thickness [Min] | Read Out | Termination Rows | Number of Rows | Number of Positions/Bay/Row |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyester Thermoplastic | Non Specified - Dual Edge | Press-Fit | Cantilever | Gold | 21 | 3.96 mm | 0.156 in | 2 | Female | Through Hole | Black | Copper Alloy | 30 Áin | 0.76 Ám | -40 C | 105 ░C | 42 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | Non Specified - Dual Edge | Press-Fit | Cantilever | Gold | 21 | 3.96 mm | 0.156 in | 2 | Female | Through Hole | Black | Copper Alloy | 30 Áin | 0.76 Ám | -40 C | 105 ░C | 42 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | Non Specified - Dual Edge | Press-Fit | Cantilever | Gold | 21 | 3.96 mm | 0.156 in | 2 | Female | Through Hole | Black | Copper Alloy | 30 Áin | 0.76 Ám | -40 C | 105 ░C | 42 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | |||
 EDAC Inc. | Polyester Thermoplastic | Non Specified - Single Edge | Press-Fit | Cantilever | Gold | 3.96 mm | 0.156 in | Female | Through Hole | Black | Copper Alloy | 30 Áin | 0.76 Ám | -40 C | 105 ░C | 42 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 1 | 1 | 42 | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | Non Specified - Dual Edge | Press-Fit | Cantilever | Gold | 21 | 3.96 mm | 0.156 in | 2 | Female | Through Hole | Black | Copper Alloy | 30 Áin | 0.76 Ám | -40 C | 105 ░C | 42 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | Non Specified - Dual Edge | Press-Fit | Cantilever | Gold | 21 | 3.96 mm | 0.156 in | 2 | Female | Through Hole | Black | Copper Alloy | 30 Áin | 0.76 Ám | -40 C | 105 ░C | 42 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | |||
 EDAC Inc. | Polyester Thermoplastic | Non Specified - Single Edge | Press-Fit Wire Wrap | Cantilever | Gold | 3.96 mm | 0.156 in | Female | Through Hole | Black | Copper Alloy | 30 Áin | 0.76 Ám | -40 C | 105 ░C | 42 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 1 | 1 | 42 | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | Non Specified - Dual Edge | Press-Fit Wire Wrap | Cantilever | Gold | 21 | 3.96 mm | 0.156 in | 2 | Female | Through Hole | Black | Copper Alloy | 30 Áin | 0.76 Ám | -40 C | 105 ░C | 42 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | Non Specified - Dual Edge | Press-Fit | Cantilever Make Before Break | Gold | 21 | 3.96 mm | 0.156 in | 2 | Female | Through Hole | Black | Copper Alloy | 30 Áin | 0.76 Ám | -40 C | 105 ░C | 42 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | |||
 EDAC Inc. | Polyester Thermoplastic | Non Specified - Single Edge | Press-Fit | Cantilever | Gold | 3.96 mm | 0.156 in | Female | Through Hole | Black | Copper Alloy | 30 Áin | 0.76 Ám | -40 C | 105 ░C | 42 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 1 | 1 | 42 |
