170780 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

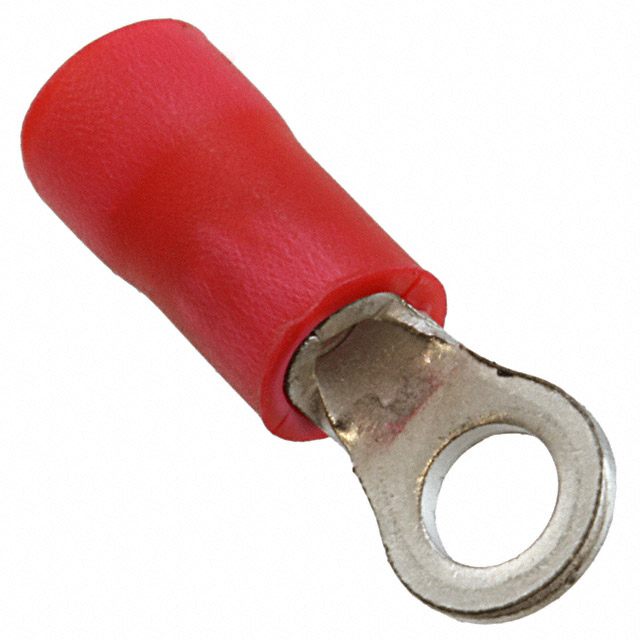

CONN RING CIRC 18-22AWG #5 CRIMP
| Part | Thickness | Thickness | Stud/Tab Size | Insulation | Mounting Type | Contact Finish | Wire Gauge [Max] | Wire Gauge [Min] | Terminal Type | Contact Material | Width - Outer Edges [y] | Width - Outer Edges [y] | Termination | Color | Length - Overall [x] | Length - Overall [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 0.031 in | 0.79 mm | 5 Stud | Insulated | Free Hanging (In-Line) | Tin | 22 AWG | 17.5 AWG | Circular | Copper | 5.5 mm | 0.217 in | Crimp | Red | 0.689 in | 17.5 mm |
