V7-9W2 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K

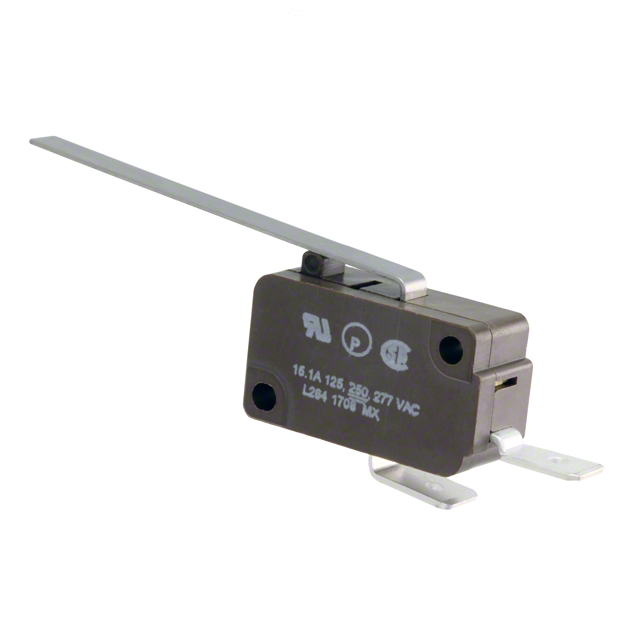

SWITCH SNAP ACT SPST-NO 15A 125V
| Part | Operating Position | Operating Position | Differential Travel | Differential Travel | Release Force | Mounting Type | Mechanical Life | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Pretravel | Pretravel | Actuator Type | Electrical Life | Circuit | Operating Force | Switch Function | Overtravel [custom] | Overtravel [custom] | Voltage Rating - AC | Current Rating (Amps) | Differential Travel [x] | Differential Travel [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 15.3 mm | 0.602 in | 1.4 mm | 0.055 in | 4 gf | Chassis Mount | 10000000 Cycles | 177 °C | -40 C | Quick Connect - 0.250" (6.3mm) | 0.25 in | 6.35 mm | Lever Straight | 100000 Cycles | SPST-NO | 90 gf | Off-Mom | 0.125 in | 3.2 mm | 125 V | 15 A | ||
 Honeywell Sensing and Productivity Solutions | 14.7 mm | 0.579 in | 25 gf | Chassis Mount | 10000000 Cycles | 177 °C | -40 C | Quick Connect - 0.250" (6.3mm) | 0.047 in | 1.2 mm | Round (Pin Plunger) | 100000 Cycles | SPST-NO | 300 gf | Off-Mom | 0.05 " | 1.27 mm | 125 V | 15 A | 0.01 in | 0.25 mm |
