LM2750 Series

2.7-V to 5.6-VIN low-noise switched-capacitor boost doubler

Catalog

2.7-V to 5.6-VIN low-noise switched-capacitor boost doubler

Part	Mounting Type	Voltage - Output (Max) [Max]	Supplier Device Package	Package / Case	Number of Outputs	Output Configuration	Frequency - Switching	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Current - Output	Voltage - Input (Min) [Min]	Voltage - Output (Min/Fixed)	Function	Output Type	Output Type	Utilized IC / Part	Main Purpose	Board Type	Outputs and Type	Outputs and Type	Regulator Topology	Supplied Contents	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output [Min]	Voltage - Output [Max]

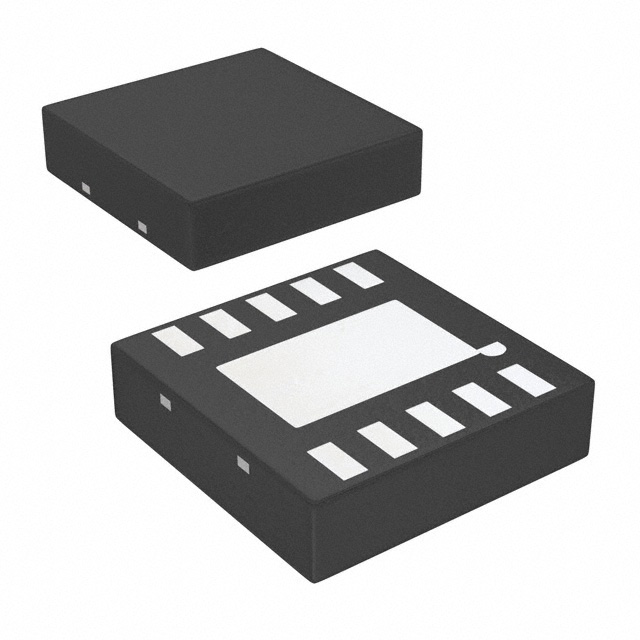

Texas Instruments LM2750SDX-ADJ	Surface Mount	5.2 V	10-WSON (3x3)	10-WFDFN Exposed Pad	1	Positive	1.7 MHz	-40 °C	125 °C	5.6 V	120 mA	2.7 V	3.8 V	Step-Up	Adjustable
Texas Instruments LM2750LDX-ADJ/NOPB	Surface Mount	5.2 V	10-WSON (3x3)	10-WFDFN Exposed Pad	1	Positive	1.7 MHz	-40 °C	125 °C	5.6 V	120 mA	2.7 V	3.8 V	Step-Up	Adjustable
Texas Instruments LM2750LD-5.0/NOPB	Surface Mount		10-WSON (3x3)	10-WFDFN Exposed Pad	1	Positive	1.7 MHz	-40 °C	125 °C	5.6 V	120 mA	2.7 V	5 V	Step-Up		1.81 mOhm
Texas Instruments LM2750SD-ADJ/NOPB	Surface Mount	5.2 V	10-WSON (3x3)	10-WFDFN Exposed Pad	1	Positive	1.7 MHz	-40 °C	125 °C	5.6 V	120 mA	2.7 V	3.8 V	Step-Up	Adjustable
Texas Instruments LM2750SDX-ADJ/NOPB	Surface Mount	5.2 V	10-WSON (3x3)	10-WFDFN Exposed Pad	1	Positive	1.7 MHz	-40 °C	125 °C	5.6 V	120 mA	2.7 V	3.8 V	Step-Up	Adjustable
Texas Instruments LM2750SD-ADJ	Surface Mount	5.2 V	10-WSON (3x3)	10-WFDFN Exposed Pad	1	Positive	1.7 MHz	-40 °C	125 °C	5.6 V	120 mA	2.7 V	3.8 V	Step-Up	Adjustable
Texas Instruments LM2750LD-ADJ/NOPB	Surface Mount	5.2 V	10-WSON (3x3)	10-WFDFN Exposed Pad	1	Positive	1.7 MHz	-40 °C	125 °C	5.6 V	120 mA	2.7 V	3.8 V	Step-Up	Adjustable
Texas Instruments LM2750LD-5.0	Surface Mount		10-WSON (3x3)	10-WFDFN Exposed Pad	1	Positive	1.7 MHz	-40 °C	125 °C	5.6 V	120 mA	2.7 V	5 V	Step-Up		1.81 mOhm
Texas Instruments LM2750LD-ADJEV							1.7 MHz				120 mA						LM2750	DC/DC Step Up	Fully Populated	Non-Isolated	1	Boost	Board(s)	5.6 V	2.7 V	3.8 V	5.2 V
Texas Instruments LM2750LD-ADJ	Surface Mount	5.2 V	10-WSON (3x3)	10-WFDFN Exposed Pad	1	Positive	1.7 MHz	-40 °C	125 °C	5.6 V	120 mA	2.7 V	3.8 V	Step-Up	Adjustable

Catalog

2.7-V to 5.6-VIN low-noise switched-capacitor boost doubler

Key Features

• Wide Input Voltage Range: 2.7 V to 5.6 VInductorless Solution: Application Requires Only Three Small Ceramic CapacitorsFixed 5-V Output and Adjustable Output Voltage Options Available85% Peak Efficiency70% Average Efficiency Over Li-Ion Input Range (2.9 V to 4.2 V)Output Current up to 120 mA With 2.9 V ≤ VIN≤ 5.6 VOutput Current up to 40 mA With 2.7 V ≤ VIN≤ 2.9 VFixed 1.7-MHz Switching Frequency for a Low-Noise, Low-Ripple Output SignalPre-Regulation Minimizes Input Current Ripple, Keeping the Battery Line(VIN) Virtually Noise-FreeShutdown Supply Current Less Than 2 µATiny WSON Package With Outstanding Power Dissipation: Usually No Derating RequiredWide Input Voltage Range: 2.7 V to 5.6 VInductorless Solution: Application Requires Only Three Small Ceramic CapacitorsFixed 5-V Output and Adjustable Output Voltage Options Available85% Peak Efficiency70% Average Efficiency Over Li-Ion Input Range (2.9 V to 4.2 V)Output Current up to 120 mA With 2.9 V ≤ VIN≤ 5.6 VOutput Current up to 40 mA With 2.7 V ≤ VIN≤ 2.9 VFixed 1.7-MHz Switching Frequency for a Low-Noise, Low-Ripple Output SignalPre-Regulation Minimizes Input Current Ripple, Keeping the Battery Line(VIN) Virtually Noise-FreeShutdown Supply Current Less Than 2 µATiny WSON Package With Outstanding Power Dissipation: Usually No Derating Required

Description

The LM2750 is a regulated switched-capacitor doubler that produces a low-noise output voltage. The 5-V output voltage option (LM2750-5.0) can supply up to 120 mA of output current over a 2.9-V to 5.6-V input range, as well as up to 40 mA of output current when the input voltage is as low as 2.7 V. An adjustable output voltage option with similar output current capabilities is also available (LM2750-ADJ). The LM2750 has been placed in TI's 10-pin WSON, a package with excellent thermal properties that keeps the part from overheating under almost all rated operating conditions. A perfect fit for space-constrained, battery-powered applications, the LM2750 requires only three external components: one input capacitor, one output capacitor, and one flying capacitor. Small, inexpensive ceramic capacitors are recommended for use. In conjunction with the1.7-MHz fixed switching frequency of the LM2750, these capacitors yield low output-voltage ripple, which is beneficial for systems requiring a low-noise supply. Pre-regulation minimizes input current ripple, thus reducing input noise to negligible levels. A tightly controlled soft-start feature limits inrush currents during part activation. Shutdown completely disconnects the load from the input. Output current limiting and thermal shutdown circuitry protect both the LM2750 and other connected devices in the event of output shorts or excessive current loads. The LM2750 is a regulated switched-capacitor doubler that produces a low-noise output voltage. The 5-V output voltage option (LM2750-5.0) can supply up to 120 mA of output current over a 2.9-V to 5.6-V input range, as well as up to 40 mA of output current when the input voltage is as low as 2.7 V. An adjustable output voltage option with similar output current capabilities is also available (LM2750-ADJ). The LM2750 has been placed in TI's 10-pin WSON, a package with excellent thermal properties that keeps the part from overheating under almost all rated operating conditions. A perfect fit for space-constrained, battery-powered applications, the LM2750 requires only three external components: one input capacitor, one output capacitor, and one flying capacitor. Small, inexpensive ceramic capacitors are recommended for use. In conjunction with the1.7-MHz fixed switching frequency of the LM2750, these capacitors yield low output-voltage ripple, which is beneficial for systems requiring a low-noise supply. Pre-regulation minimizes input current ripple, thus reducing input noise to negligible levels. A tightly controlled soft-start feature limits inrush currents during part activation. Shutdown completely disconnects the load from the input. Output current limiting and thermal shutdown circuitry protect both the LM2750 and other connected devices in the event of output shorts or excessive current loads.
