747548 Series

Catalog

CONN D-SUB RCPT 25POS IDC

Part	Contact Material	Wire Gauge [Max]	Wire Gauge [Min]	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Color	Number of Rows [custom]	Material Flammability Rating	Features	Contact Finish	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Termination	Connector Type	Current Rating (Amps)	Mounting Type	Shell Size, Connector Layout	Shell Size, Connector Layout [x]	Number of Positions	Connector Style	Contact Type	Contact Finish Thickness
TE Connectivity AMP Connectors 747548-2	Phosphor Bronze	26 AWG	22 AWG	Thermoplastic	-55 C	105 ░C	250 V	Black	2	UL94 V-0	Backshell Shielded	Gold	Housing/Shell (Unthreaded)	30 Áin	0.76 Ám	Discrete Wire IDC	Receptacle Female Sockets	Varies by Wire Gauge	Free Hanging (In-Line)	B DB	3	25	D-Sub	Signal

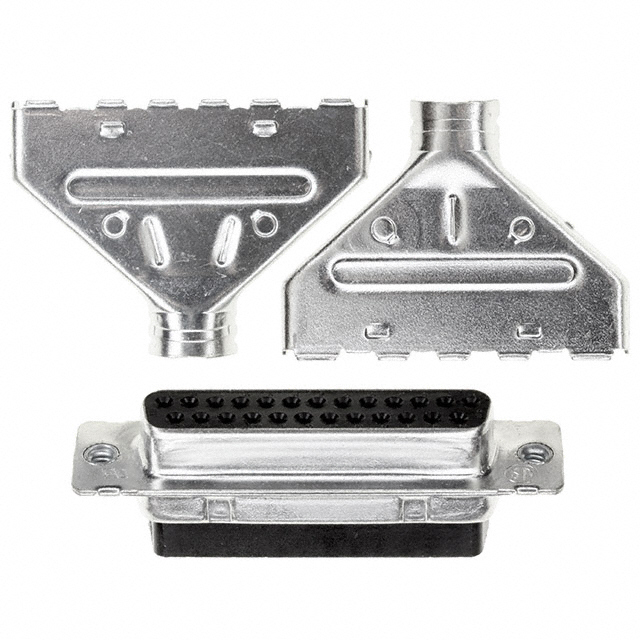

TE Connectivity AMP Connectors 747548-9	Phosphor Bronze	26 AWG	22 AWG	Thermoplastic	-55 C	105 ░C	250 V	Black	2	UL94 V-0	Backshell Shielded	Gold	Housing/Shell (Unthreaded)			Discrete Wire IDC	Receptacle Female Sockets	Varies by Wire Gauge	Free Hanging (In-Line)	B DB	3	25	D-Sub	Signal	Flash
TE Connectivity AMP Connectors 747548-5	Phosphor Bronze	26 AWG	22 AWG	Thermoplastic	-55 C	105 ░C	250 V	Black	2	UL94 V-0	Backshell Shielded	Gold	Housing/Shell (Unthreaded)			Discrete Wire IDC	Receptacle Female Sockets	Varies by Wire Gauge	Free Hanging (In-Line)	B DB	3	25	D-Sub	Signal	Flash
