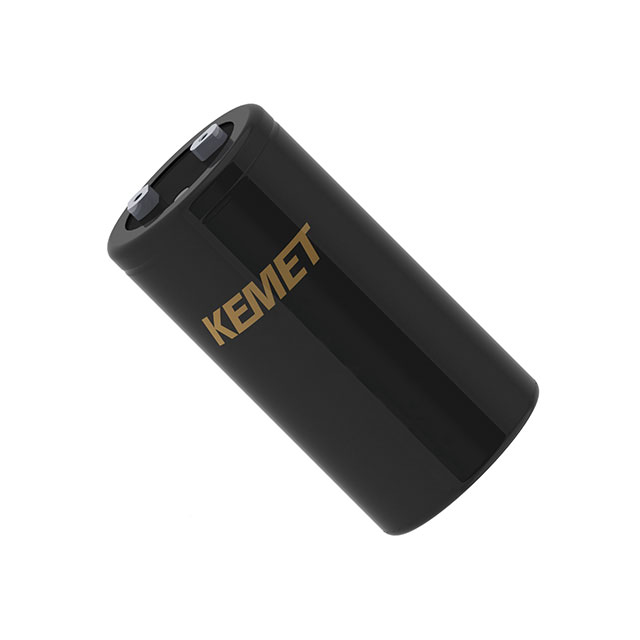

ALS81 Series

Manufacturer: KEMET

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SCREW TERMINAL 63V 220000UF 20% 9000HRS

Part	Tolerance	Polarization	Capacitance	Ripple Current @ High Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage - Rated	Impedance	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ Low Frequency	Lifetime @ Temp.	ESR (Equivalent Series Resistance)	Mounting Type	Lead Spacing	Lead Spacing	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET ALS81U224NS063	20 %	Polar	220 mF	29.9 A	7.717 in	196 mm	63 V	8 mOhms	77 mm	3.031 in	Radial Can - Screw Terminals	-40 C	105 ░C	28.6 A	9000 Hrs	7 mOhm	Chassis Mount	1.252 in	31.8 mm	General Purpose
KEMET ALS81H163NW250	20 %	Polar	16000 µF	24.4 A			250 V	14 mOhms	77 mm	3.031 in	Radial Can - Screw Terminals	-40 C	105 ░C	18.8 A	9000 Hrs	19 mOhm	Chassis Mount	1.252 in	31.8 mm	General Purpose	171 mm	6.732 in
KEMET ALS81C332LM450	20 %	Polar	3.3 mF	20.2 A	5.236 "	133 mm	450 V	31 mOhms	63.5 mm	2.5 in	Radial Can - Screw Terminals	-40 C	105 ░C	11.3 A	8000 Hrs	49 mOhm	Chassis Mount	1.122 in	28.5 mm	General Purpose
KEMET ALS81A124NF063	20 %	Polar	0.12 F		4.213 in	107 mm	63 V	10 mOhms	77 mm	3.031 in	Radial Can - Screw Terminals	-40 C	105 ░C	23.2 A	9000 Hrs	9 mOhm	Chassis Mount	1.252 in	31.8 mm	General Purpose
KEMET ALS81U163NF200	20 %	Polar	16000 µF	19.9 A	4.213 in	107 mm	200 VDC	19 mOhms	77 mm	3.031 in	Radial Can - Screw Terminals	-40 C	105 ░C	15.8 A	9000 Hrs	25 mOhm	Chassis Mount	1.252 in	31.8 mm	General Purpose
KEMET ALS81C332MF450	20 %	Polar	3.3 mF	19.5 A	4.213 in	107 mm	450 V	31 mOhms	66 mm	2.598 in	Radial Can - Screw Terminals	-40 C	105 ░C	10.9 A	8000 Hrs	50 mOhm	Chassis Mount	1.122 in	28.5 mm	General Purpose
KEMET ALS81C223QM200	20 %	Polar	22000 µF	25.7 A	5.236 "	133 mm	200 VDC	15 mOhms	90 mm	3.543 in	Radial Can - Screw Terminals	-40 C	105 ░C	20.6 A	9000 Hrs	18 mOhm	Chassis Mount	1.252 in	31.8 mm	General Purpose
KEMET ALS81C183QP250	20 %	Polar	18000 µF	27.7 A			250 V	13 mOhms	90 mm	3.543 in	Radial Can - Screw Terminals	-40 C	105 ░C	21.4 A	9000 Hrs	17 mOhm	Chassis Mount	1.252 in	31.8 mm	General Purpose	148 mm	5.827 in
KEMET ALS81C113QT500	20 %	Polar	11 mF	31.4 A			500 V	18 mOhms	90 mm	3.543 in	Radial Can - Screw Terminals	-40 C	105 ░C	22.4 A	9000 Hrs	23 mOhm	Chassis Mount	1.252 in	31.8 mm	General Purpose
KEMET ALS81G823NS100	20 %	Polar	82000 µF	29.4 A	7.717 in	196 mm	100 V	9 mOhms	77 mm	3.031 in	Radial Can - Screw Terminals	-40 C	105 ░C	27.6 A	9000 Hrs	8 mOhm	Chassis Mount	1.252 in	31.8 mm	General Purpose
