CMLB135T Series
Manufacturer: Delta Electronics/Cyntec
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

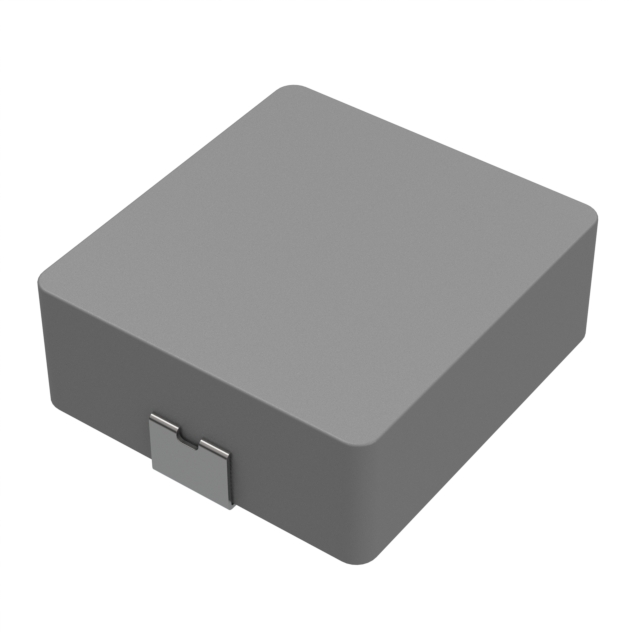

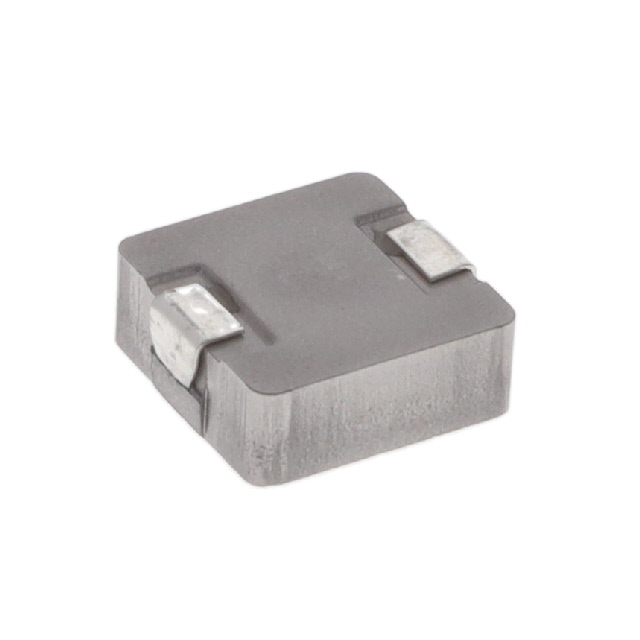

FIXED IND 1UH 26A 2.2 MOHM SMD
| Part | Material - Core | Operating Temperature (Max) | Operating Temperature (Min) | Current Rating | DC Resistance (DCR) (Max) | Size / Dimension Width | Size / Dimension Length | Package / Case | Mounting Type | Current - Saturation (Isat) | Height - Seated (Max) | Inductance | Tolerance | Inductance Frequency - Test | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics/Cyntec | Metal | 125 °C | -55 °C | 26 A | 2.2 mOhm | 0.496 in | 0.53 in | Nonstandard | Surface Mount | 32.5 A | 0.197 in | 1 µH | 20 % | 100 kHz | Shielded |
 Delta Electronics/Cyntec | Metal | 125 °C | -55 °C | 5.8 A | 35 mOhm | 0.496 in | 0.53 in | Nonstandard | Surface Mount | 6.8 A | 0.197 in | 15 µH | 20 % | 100 kHz | Shielded |
Delta Electronics/Cyntec | Metal | 125 °C | -55 °C | 37 A | 1.1 mOhm | 0.496 in | 0.53 in | Nonstandard | Surface Mount | 47.4 A | 0.197 in | 470 nH | 20 % | 100 kHz | Shielded |
Delta Electronics/Cyntec | Metal | 125 °C | -55 °C | 15.5 A | 7 mOhm | 0.496 in | 0.53 in | Nonstandard | Surface Mount | 19.5 A | 0.197 in | 3.3 µH | 20 % | 100 kHz | Shielded |
