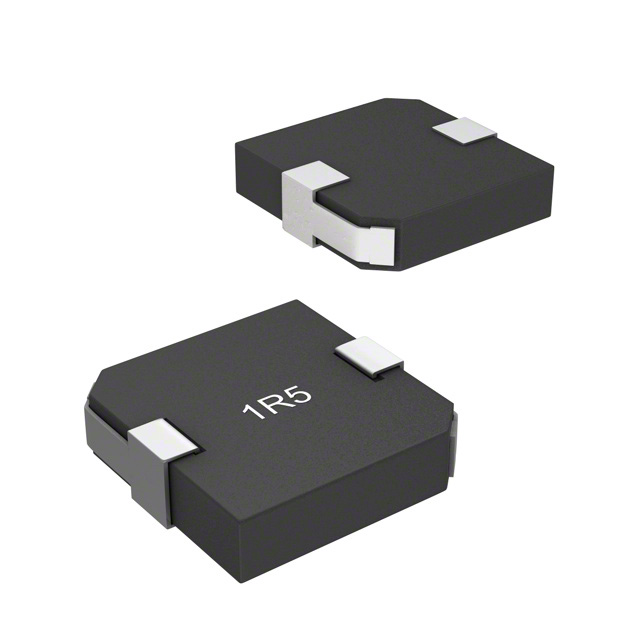

SRP1235 Series

Catalog

FIXED IND 680NH 28A 2.5 MOHM SMD

Part	Mounting Type	Shielding	Package / Case	Current - Saturation (Isat)	Inductance Frequency - Test	Height - Seated (Max)	Height - Seated (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Material - Core	Inductance	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Tolerance	DC Resistance (DCR) [Max]	Frequency - Self Resonant
Bourns Inc. SRP1235-R68M	Surface Mount	Shielded	Nonstandard	40 A	100 kHz	3.7 mm	0.146 in	-55 C	150 °C	28 A	Iron	0.68 µH	0.547 in	13.9 mm	0.531 in	13.5 mm	20 %	2.5 mOhm	72 MHz
Bourns Inc. SRP1235-3R3M	Surface Mount	Shielded	Nonstandard	18 A	100 kHz	3.7 mm	0.146 in	-55 C	150 °C	12 Amps	Iron	3.3 µH	0.547 in	13.9 mm	0.531 in	13.5 mm	20 %	12 mOhm	20 MHz
Bourns Inc. SRP1235-R22M	Surface Mount	Shielded	Nonstandard	50 A	100 kHz	3.7 mm	0.146 in	-55 C	150 °C	38.5 A	Iron	220 nH	0.547 in	13.9 mm	0.531 in	13.5 mm	20 %	1.3 mOhm	94 MHz
Bourns Inc. SRP1235-R60M	Surface Mount	Shielded	Nonstandard	42 A	100 kHz	3.7 mm	0.146 in	-55 C	150 °C	29 A	Iron	600 nH	0.547 in	13.9 mm	0.531 in	13.5 mm	20 %	2.5 mOhm	73 MHz
Bourns Inc. SRP1235-R33M	Surface Mount	Shielded	Nonstandard	50 A	100 kHz	3.7 mm	0.146 in	-55 C	150 °C	36.5 A	Iron	330 nH	0.547 in	13.9 mm	0.531 in	13.5 mm	20 %	1.5 mOhm	90 MHz
Bourns Inc. SRP1235-1R5M	Surface Mount	Shielded	Nonstandard	28 A	100 kHz	3.7 mm	0.146 in	-55 C	150 °C	19 A	Iron	1.5 µH	0.547 in	13.9 mm	0.531 in	13.5 mm	20 %	5.5 mOhm	37 MHz
