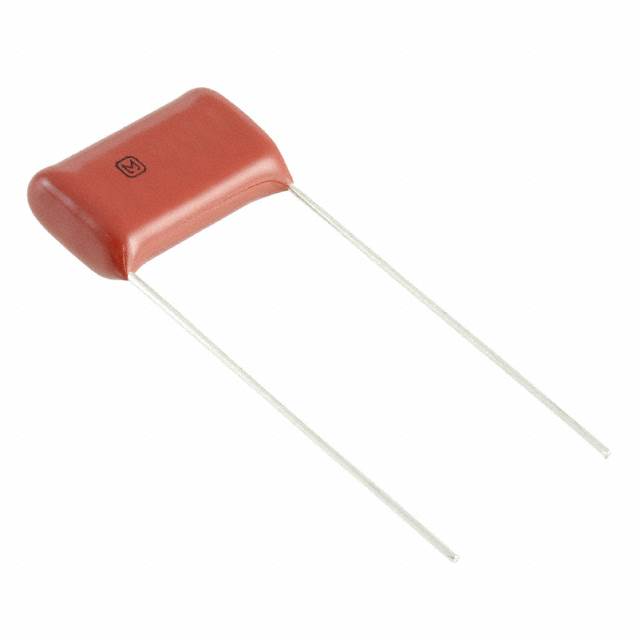

ECQ-E6683 Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP FILM 0.068UF 5% 630VDC RAD

Part	Dielectric Material	Capacitance	Lead Spacing	Lead Spacing	Package / Case	Termination	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max)
Panasonic Electronic Components ECQ-E6683JF3	Polyester Metallized	0.068 µF	0.197 "	5 mm	Radial	PC Pins	5.8 mm	18.5 mm	0.228 in	0.728 in	Through Hole	-40 C	105 ░C	5 %	General Purpose	16 mm	0.63 in
Panasonic Electronic Components ECQ-E6683RKF	Polyester Metallized	0.068 µF	0.591 in	15 mm	Radial	PC Pins	5.8 mm	18.5 mm	0.228 in	0.728 in	Through Hole	-40 C	105 ░C	10 %	General Purpose	16 mm	0.63 in
Panasonic Electronic Components ECQ-E6683KF	Polyester Metallized	0.068 µF	0.591 in	15 mm	Radial	PC Pins	5.8 mm	18.5 mm	0.228 in	0.728 in	Through Hole	-40 C	105 ░C	10 %	General Purpose			0.472 in	12 mm
Panasonic Electronic Components ECQ-E6683KZ	Polyester Metallized	0.068 µF	0.531 "	13.5 mm	Radial	PC Pins	7.5 mm	16.5 mm	0.295 in	0.65 in	Through Hole	-40 C	85 °C	10 %	General Purpose	16 mm	0.63 in
Panasonic Electronic Components ECQ-E6683KFW	Polyester Metallized	0.068 µF	0.394 in	10 mm	Radial	PC Pins	5.8 mm	18.5 mm	0.228 in	0.728 in	Through Hole	-40 C	105 ░C	10 %	General Purpose	16 mm	0.63 in
Panasonic Electronic Components ECQ-E6683KFB	Polyester Metallized	0.068 µF	0.394 in	10 mm	Radial	PC Pins	5.8 mm	18.5 mm	0.228 in	0.728 in	Through Hole	-40 C	105 ░C	10 %	General Purpose	16 mm	0.63 in
Panasonic Electronic Components ECQ-E6683KF3	Polyester Metallized	0.068 µF	0.197 "	5 mm	Radial	PC Pins	5.8 mm	18.5 mm	0.228 in	0.728 in	Through Hole	-40 C	105 ░C	10 %	General Purpose	16 mm	0.63 in
Panasonic Electronic Components ECQ-E6683RJF	Polyester Metallized	0.068 µF	0.591 in	15 mm	Radial	PC Pins	5.8 mm	18.5 mm	0.228 in	0.728 in	Through Hole	-40 C	105 ░C	5 %	General Purpose	16 mm	0.63 in
