854-22 Series

Catalog

CONN SPRING PISTON 15POS SMD

Part	Number of Contacts	Mounting Type	Number of Rows	Contact Finish	Material	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Contacts [custom]

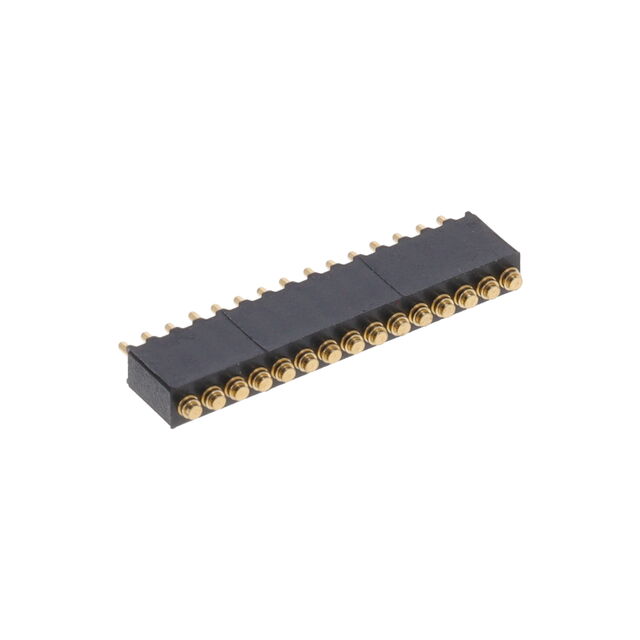

Mill-Max Manufacturing Corp. 854-22-015-30-001101	15	Surface Mount	1	Gold	Brass Alloy	0.05 in	1.27 mm	20 µin	0.51 µm	Piston
Mill-Max Manufacturing Corp. 854-22-018-20-001101		Right Angle Through Hole	1	Gold	Copper Alloy	0.05 in	1.27 mm	10 Áin	0.25 Ám	Piston

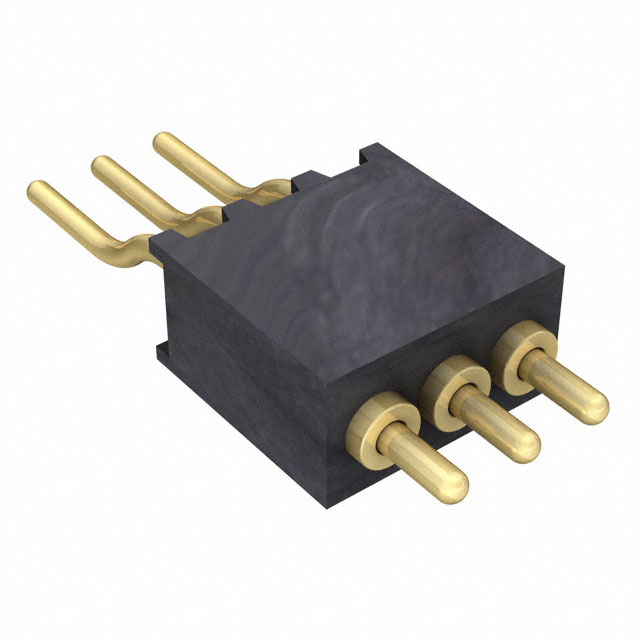

Mill-Max Manufacturing Corp. 854-22-003-40-001101	3	Right Angle Surface Mount	1	Gold	Copper Alloy	0.05 in	1.27 mm	10 Áin	0.25 Ám	Piston
Mill-Max Manufacturing Corp. 854-22-008-40-601101	8	Right Angle Surface Mount	1	Gold	Copper Alloy	0.05 in	1.27 mm	20 µin	0.51 µm	Piston

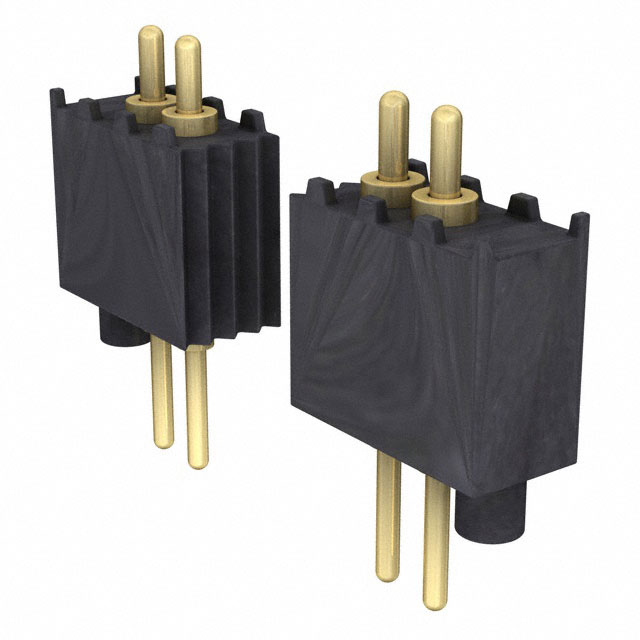

Mill-Max Manufacturing Corp. 854-22-010-10-001101	10	Through Hole	1	Gold	Brass Alloy	0.05 in	1.27 mm	20 µin	0.51 µm	Piston
Mill-Max Manufacturing Corp. 854-22-017-40-001101		Right Angle Surface Mount	1	Gold	Copper Alloy	0.05 in	1.27 mm	10 Áin	0.25 Ám	Piston	17
Mill-Max Manufacturing Corp. 854-22-014-20-601101		Right Angle Through Hole	1	Gold	Copper Alloy	0.05 in	1.27 mm	20 µin	0.51 µm	Piston	14
Mill-Max Manufacturing Corp. 854-22-016-20-601101	16	Right Angle Through Hole	1	Gold	Copper Alloy	0.05 in	1.27 mm	20 µin	0.51 µm	Piston
Mill-Max Manufacturing Corp. 854-22-006-10-001101	6	Through Hole	1	Gold	Brass Alloy	0.05 in	1.27 mm	20 µin	0.51 µm	Piston

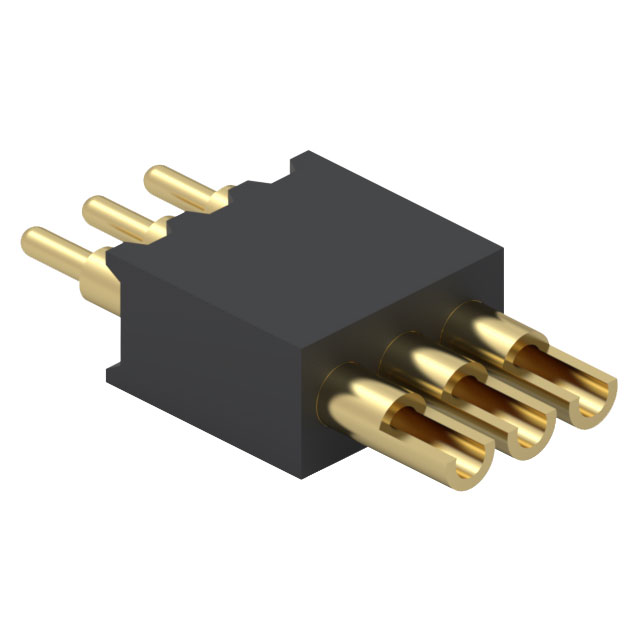

Mill-Max Manufacturing Corp. 854-22-003-10-003101	3	Solder Cup Through Hole	1	Gold	Brass Alloy	0.05 in	1.27 mm	20 µin	0.51 µm	Piston
