846-064 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 64POS 0.125

...

Part	Material - Insulation	Termination Rows [custom]	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Read Out	Gender	Card Type	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Contact Type	Flange Feature [diameter]	Flange Feature [diameter]	Number of Rows [custom]	Number of Positions/Bay/Row	Features	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Material	Termination	Color	Contact Finish	Flange Feature
EDAC Inc. 846-064-556-804	Diallyl Phthalate (DAP)	2	64	0.25 Ám	10 Áin	Dual	Female	Non Specified - Dual Edge	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	0.156 "	3.96 mm	2	32	Card Extender	125 °C	-40 C	Board Edge Straddle Mount	Copper Alloy	Solder	Green	Gold

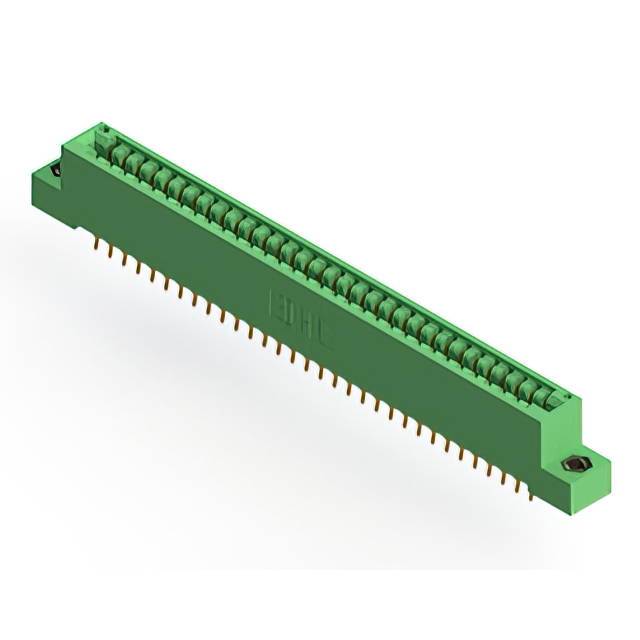

EDAC Inc. 846-064-556-207	Diallyl Phthalate (DAP)	2	64	0.25 Ám	10 Áin	Dual	Female	Non Specified - Dual Edge	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever			2	32	Card Extender	125 °C	-40 C	Board Edge Straddle Mount	Copper Alloy	Solder	Green	Gold	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 846-064-558-207	Diallyl Phthalate (DAP)	2	64	0.25 Ám	10 Áin	Dual	Female	Non Specified - Dual Edge	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever			2	32		125 °C	-40 C	Right Angle Through Hole	Copper Alloy	Solder	Green	Gold	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 846-064-522-208	Diallyl Phthalate (DAP)	2	64	0.25 Ám	10 Áin	Dual	Female	Non Specified - Dual Edge	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever			2	32		125 °C	-40 C	Through Hole	Copper Alloy	Solder	Green	Gold	4-40 Flush Mount Threaded Insert Top Opening

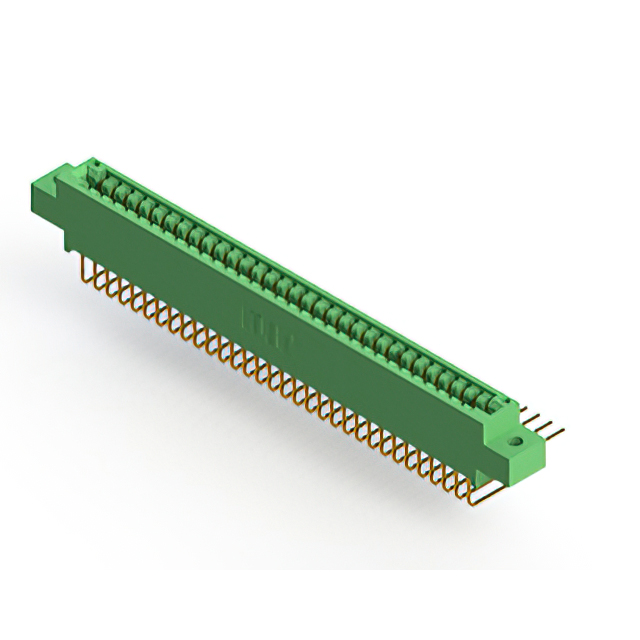

EDAC Inc. 846-064-558-802	Diallyl Phthalate (DAP)	2	64	0.25 Ám	10 Áin	Dual	Female	Non Specified - Dual Edge	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	0.128 "	3.25 mm	2	32		125 °C	-40 C	Right Angle Through Hole	Copper Alloy	Solder	Green	Gold

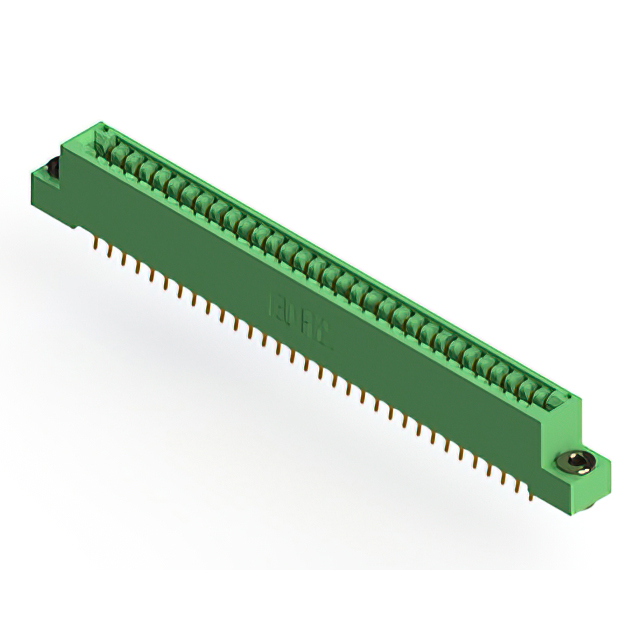

EDAC Inc. 846-064-556-203	Diallyl Phthalate (DAP)	2	64	0.25 Ám	10 Áin	Dual	Female	Non Specified - Dual Edge	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	0.116 "	2.95 mm	2	32	Card Extender	125 °C	-40 C	Board Edge Straddle Mount	Copper Alloy	Solder	Green	Gold	Floating Bobbin Flush Mount
EDAC Inc. 846-064-558-808	Diallyl Phthalate (DAP)	2	64	0.25 Ám	10 Áin	Dual	Female	Non Specified - Dual Edge	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever			2	32		125 °C	-40 C	Right Angle Through Hole	Copper Alloy	Solder	Green	Gold	4-40 Threaded Insert Top Mount Opening
EDAC Inc. 846-064-526-804	Diallyl Phthalate (DAP)	2	64	0.25 Ám	10 Áin	Dual	Female	Non Specified - Dual Edge	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	0.156 "	3.96 mm	2	32		125 °C	-40 C	Through Hole	Copper Alloy	Solder	Green	Gold
EDAC Inc. 846-064-526-212	Diallyl Phthalate (DAP)	2	64	0.25 Ám	10 Áin	Dual	Female	Non Specified - Dual Edge	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	0.128 "	3.25 mm	2	32		125 °C	-40 C	Through Hole	Copper Alloy	Solder	Green	Gold	Flush Mount Side Opening Unthreaded
EDAC Inc. 846-064-520-804	Diallyl Phthalate (DAP)	2	64	0.25 Ám	10 Áin	Dual	Female	Non Specified - Dual Edge	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	0.156 "	3.96 mm	2	32		125 °C	-40 C	Through Hole	Copper Alloy	Solder	Green	Gold
