6500-1071 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

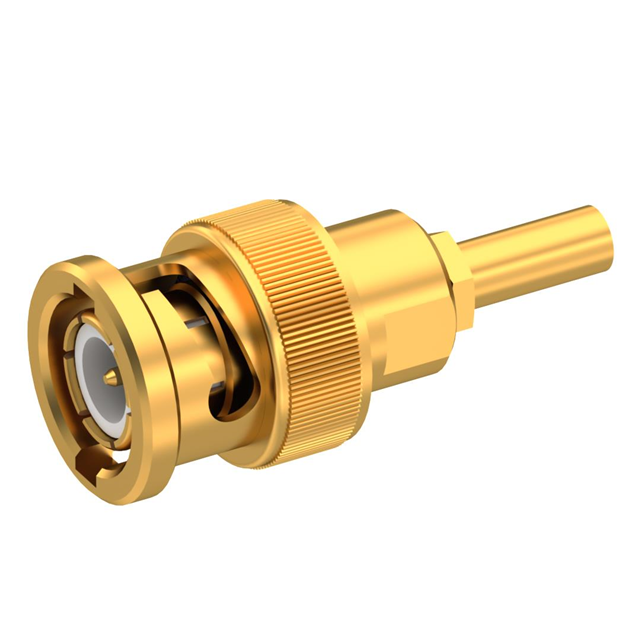

BNC / STRAIGHT PLUG MALE CRIMP T
| Part | Center Contact Plating | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Body Material | Body Finish | Impedance | Cable Group | Connector Type | Number of Ports | Center Contact Material | Fastening Type | Contact Termination | Housing Color | Frequency - Max [Max] | Mounting Type | Connector Style | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | 1000 | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Brass | Gold | 50 Ohms | RG-178DS | Plug Male Pin | 1 | Beryllium Copper | Bayonet Lock | Crimp | Gold | 4 GHz | Free Hanging (In-Line) | BNC | Crimp |
Radiall USA, Inc. | Gold | 1000 | -65 ░C | 165 °C | Gold | 50 Ohms | 196 M17/169 M17/93 RG-178 | Plug Male Pin | 1 | Bayonet Lock | Crimp | Gold | 4 GHz | Free Hanging (In-Line) | BNC | Crimp |
