QS30F Series
Manufacturer: BANNER ENGINEERING
Beta
⌘K

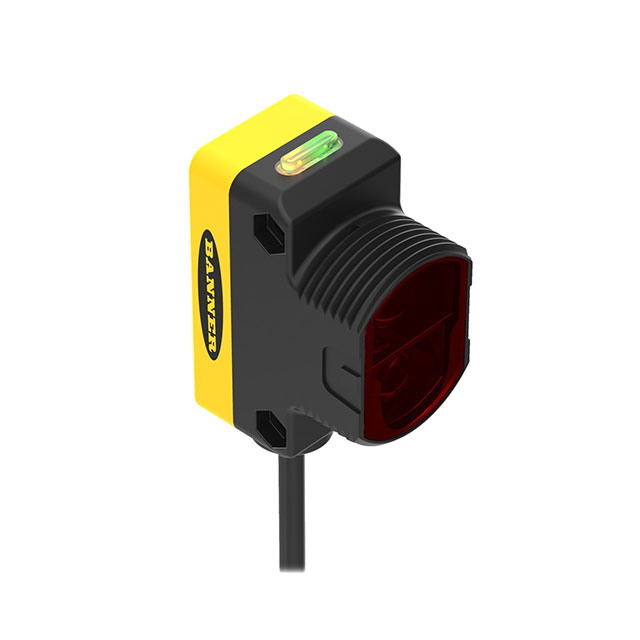

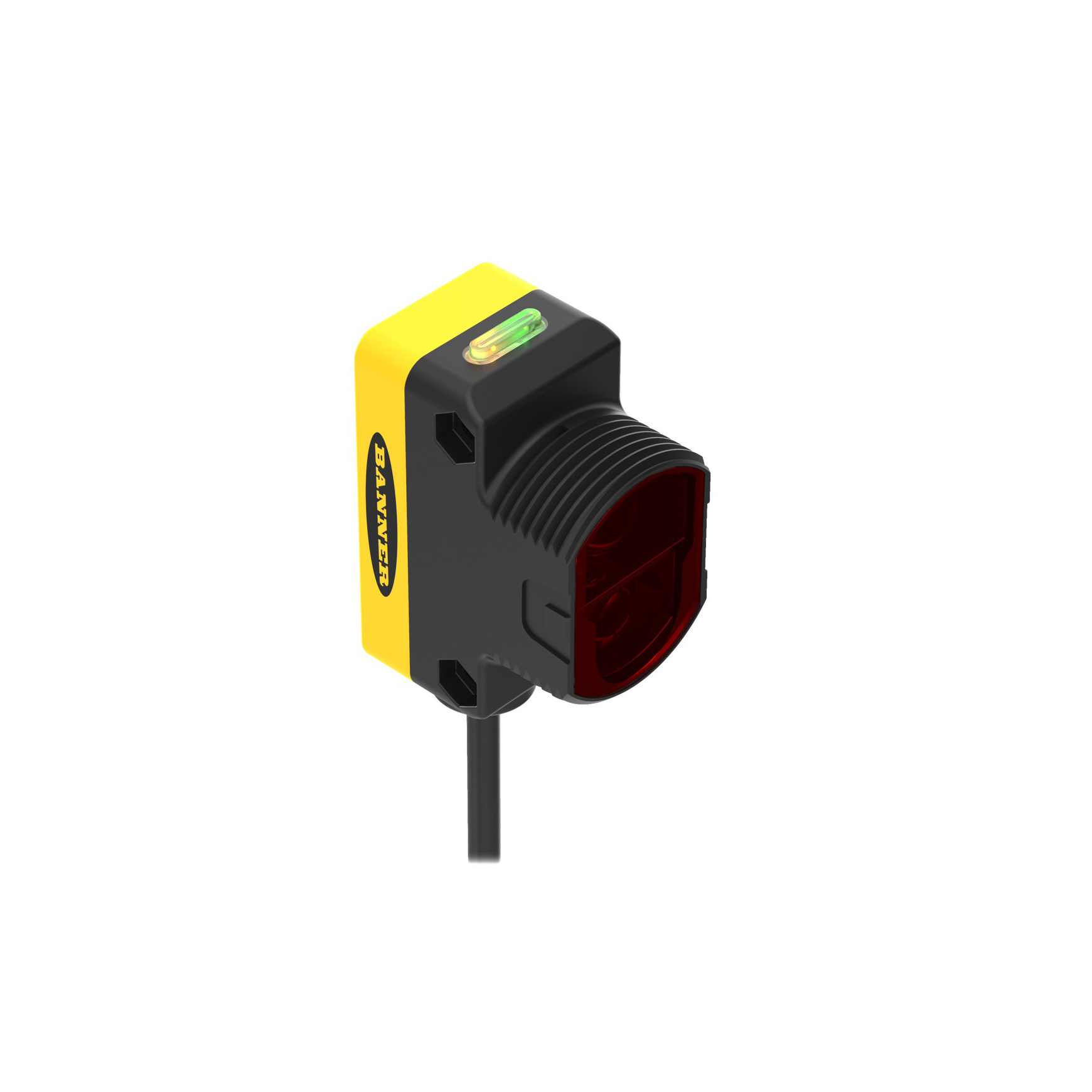

PHOTOELECTRIC SENSOR, QS30 SERIES, WORLD-BEAM, FIXED, 400MM, NPN / PNP, 10-30V, QUICK DISCONNECT
| Part | Ingress Protection | Voltage - Supply [Min] | Voltage - Supply [Max] | Output Configuration | Operating Temperature [Min] | Operating Temperature [Max] | Sensing Distance | Sensing Distance | Response Time | Connection Method | Light Source | Sensing Method | Cable Length | Cable Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BANNER ENGINEERING | IP67 NEMA 6P | 10 VDC | 30 VDC | Dark-ON/Light-ON NPN/PNP | -20 ░C | 70 °C | 40 cm | 15.748 in | 2 ms | Connector | Red (680nm) | Background Suppression | ||
 BANNER ENGINEERING | IP67 NEMA 6P | 10 VDC | 30 VDC | Dark-ON/Light-ON NPN/PNP | -20 ░C | 70 °C | 200 mm | 7.874 in | 2 ms | Cable | Red (680nm) | Background Suppression | 78.74 " | 2 m |
 BANNER ENGINEERING | IP67 NEMA 6P | 10 VDC | 30 VDC | Dark-ON/Light-ON NPN/PNP | -20 ░C | 70 °C | 60 cm | 23.622 " | 2 ms | Connector | Red (680nm) | Background Suppression | ||
 BANNER ENGINEERING | IEC IEC IP67 IP67 NEMA 6P | 10 VDC | 30 VDC | NPN/PNP - Dark-ON/Light-ON - Selectable | -20 ░C | 70 °C | 40 cm | 15.748 in | 2 ms | Connector | Red (680nm) | Background Suppression | ||
 BANNER ENGINEERING | IP67 NEMA 6P | 10 VDC | 30 VDC | Dark-ON/Light-ON NPN/PNP | -20 ░C | 70 °C | 200 mm | 7.874 in | 2 ms | Connector | Red (680nm) | Background Suppression | ||
 BANNER ENGINEERING | IP67 NEMA 6P | 10 VDC | 30 VDC | Dark-ON/Light-ON NPN/PNP | -20 ░C | 70 °C | 40 cm | 15.748 in | 2 ms | Cable | Red (680nm) | Background Suppression | 78.74 " | 2 m |
 BANNER ENGINEERING | IP67 NEMA 6P | 10 VDC | 30 VDC | Dark-ON/Light-ON NPN/PNP | -20 ░C | 70 °C | 60 cm | 23.622 " | 2 ms | Cable | Red (680nm) | Background Suppression | 78.74 " | 2 m |
 BANNER ENGINEERING | IP67 NEMA 6P | 10 VDC | 30 VDC | Dark-ON/Light-ON NPN/PNP | -20 ░C | 70 °C | 200 mm | 7.874 in | 2 ms | Connector | Red (680nm) | Background Suppression |
