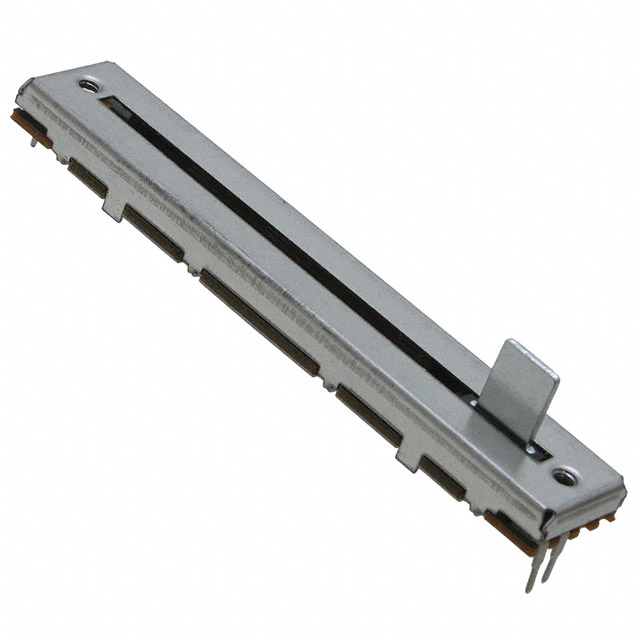

PTB6044 Series
Manufacturer: Bourns Inc.
Beta
⌘K
SLIDE POT 100K OHM 0.125W TOP
| Part | Size / Dimension | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Mounting Type | Adjustment Type | Resistance | Travel Range [Max] | Tolerance | Fader Type | Power (Watts) | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | Rectangular | 8 mm | 0.63 " | 0.315 in | 88 mm | 3.465 in | 16 mm | Through Hole | Top | 100 kOhms | 60 mm | 20 % | Dual | 0.125 W | 0.125 W |
Bourns Inc. | Rectangular | 8 mm | 0.63 " | 0.315 in | 88 mm | 3.465 in | 16 mm | Through Hole | Top | 10000 Ohms | 60 mm | 20 % | Dual | 0.125 W | 0.125 W |
