M9MX40 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

MOTOR INDUCT 90MM 100V 40W

Part	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Operating Temperature [Min]	Operating Temperature [Max]	Power - Rated	Termination Style	Function	Approval Agency	Voltage - Rated	Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Mounting Hole Spacing [x]	Mounting Hole Spacing [x]	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Length - Shaft and Bearing	RPM	Length - Shaft and Bearing	Weight	Weight
Panasonic Industrial Automation Sales M9MX40SB4YS	37 mm	1.457 in	-10 °C	40 °C	40 W	Wire Leads	Standard	CCC CE cULus	200 VAC 220 VAC	AC Motor	3.54 in	90 mm	3.54 in	90 mm	104 mm	4.094 "
Panasonic Industrial Automation Sales M9MX40S4YS	37 mm	1.457 in	-10 °C	40 °C	40 W	Wire Leads	Standard	CCC CE cULus	200 VAC 220 VAC	AC Motor	3.54 in	90 mm	3.54 in	90 mm	104 mm	4.094 "
Panasonic Industrial Automation Sales M9MX40H4Y		0.669 in	-10 °C	40 °C	40 W	Wire Leads	Standard	CCC CE cULus	200 VAC 220 VAC	AC Motor	3.54 in	90 mm	3.54 in	90 mm	104 mm	4.094 "	230 mNm	32.57 oz-in	17 mm	1675 RPM
Panasonic Industrial Automation Sales M9MX40G4Y			-10 °C	40 °C	40 W	Wire Leads	Standard	CCC CE cULus	200 VAC 220 VAC	AC Motor	3.54 in	90 mm	3.54 in	90 mm	104 mm	4.094 "	230 mNm	32.57 oz-in	12.8 mm	1675 RPM	0.504 in

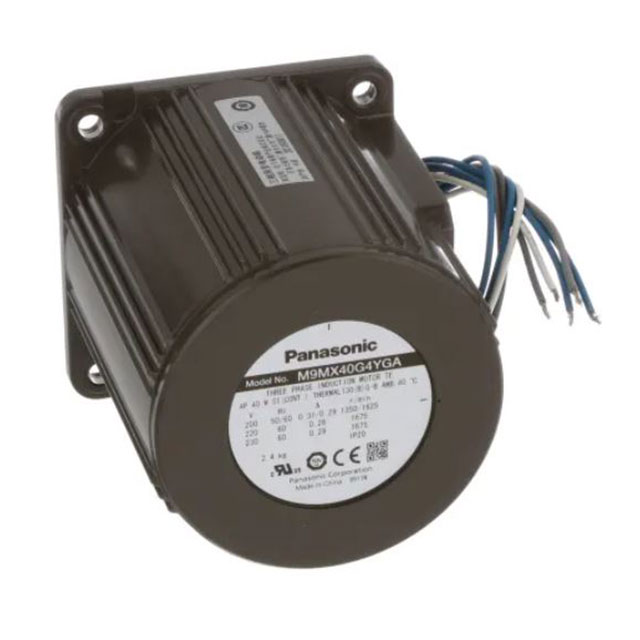

Panasonic Industrial Automation Sales M9MX40GK4YGA		0.079 in	-10 °C	40 °C	40 W	Connector	Standard	CCC CE cULus	220 VAC	AC Motor	3.543 "	90 mm	3.543 in	90 mm	104 mm	4.094 "	230 mNm	32.57 oz-in	2 mm	1675 RPM		5.2 lbs	2.4 kg
Panasonic Industrial Automation Sales M9MX40SK4YGA	37 mm	1.457 in	-10 °C	40 °C	40 W	Connector	Standard	CCC CE cULus	200 VAC 220 VAC	AC Motor	3.54 in	90 mm	3.54 in	90 mm	104 mm	4.094 "	230 mNm	32.57 oz-in		1625 RPM
Panasonic Industrial Automation Sales M9MX40SK4YS	37 mm	1.457 in	-10 °C	40 °C	40 W	Connector	Standard	CCC CE cULus	200 VAC 220 VAC	AC Motor	3.54 in	90 mm	3.54 in	90 mm	104 mm	4.094 "
Panasonic Industrial Automation Sales M9MX40S4YGA	37 mm	1.457 in	-10 °C	40 °C	40 W	Wire Leads	Standard	CCC CE cULus	200 VAC 220 VAC	AC Motor	3.54 in	90 mm	3.54 in	90 mm	104 mm	4.094 "	230 mNm	32.57 oz-in		1675 RPM
Panasonic Industrial Automation Sales M9MX40GB4Y			-10 °C	40 °C	40 W	Wire Leads	Standard	CCC CE cULus	200 VAC 220 VAC	AC Motor	3.54 in	90 mm	3.54 in	90 mm	104 mm	4.094 "	230 mNm	32.57 oz-in	12.8 mm	1675 RPM	0.504 in
