1NT1 Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SWITCH TOGGLE SPDT 10A 125V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Length [x]	Illumination	Panel Cutout Dimensions [diameter]	Mounting Type	Features	Current Rating (Amps)	Circuit	Switch Function	Ingress Protection	Bushing Thread	Termination Style	Voltage Rating - AC	Actuator Type

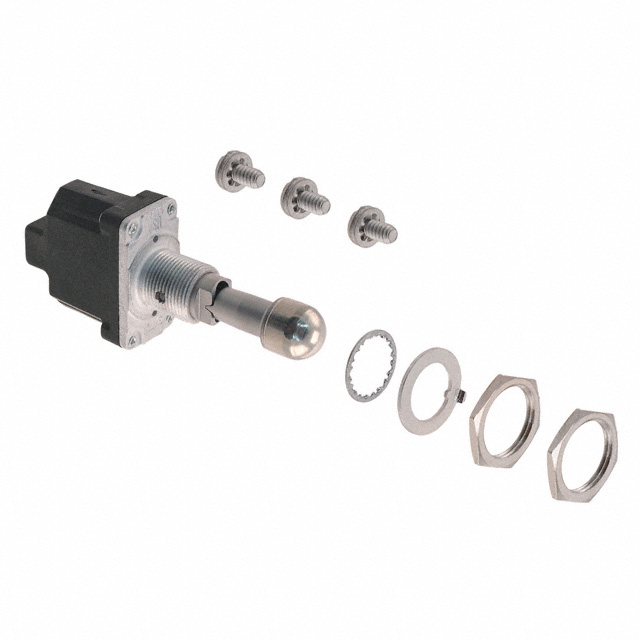

Honeywell Sensing and Productivity Solutions 1NT1-7E	71 °C	-40 C	26.67 mm	Non-Illuminated	12.4 mm	Panel Mount	Sealed	10 A	SPDT	Mom-Off-Mom	IP67/IP68	15/32-32	Screw Terminal	125 V	Locking Lever
Honeywell Sensing and Productivity Solutions 1NT1-7-JLG	71 °C	-40 C	17.02 mm	Non-Illuminated	12.4 mm	Panel Mount	Sealed	10 A	SPDT	Mom-Off-Mom	IP67/IP68	15/32-32	Screw Terminal	125 V	Standard Round
Honeywell Sensing and Productivity Solutions 1NT1-3-NH	71 °C	-40 C	17.02 mm	Non-Illuminated	12.4 mm	Panel Mount	Sealed	15 A	SPDT	On-On	IP67/IP68	15/32-32	Screw Terminal	125 V	Standard Round
Honeywell Sensing and Productivity Solutions 1NT1-7-SKY	71 °C	-40 C	17.02 mm	Non-Illuminated	12.4 mm	Panel Mount	Sealed	10 A	SPDT	Mom-Off-Mom	IP67/IP68	15/32-32	Screw Terminal	125 V	Standard Round
Honeywell Sensing and Productivity Solutions 1NT1-1N	71 °C	-40 C	26.67 mm	Non-Illuminated	12.4 mm	Panel Mount	Sealed	15 A	SPDT	On-Off-On	IP67/IP68	15/32-32	Screw Terminal	125 V	Locking Lever

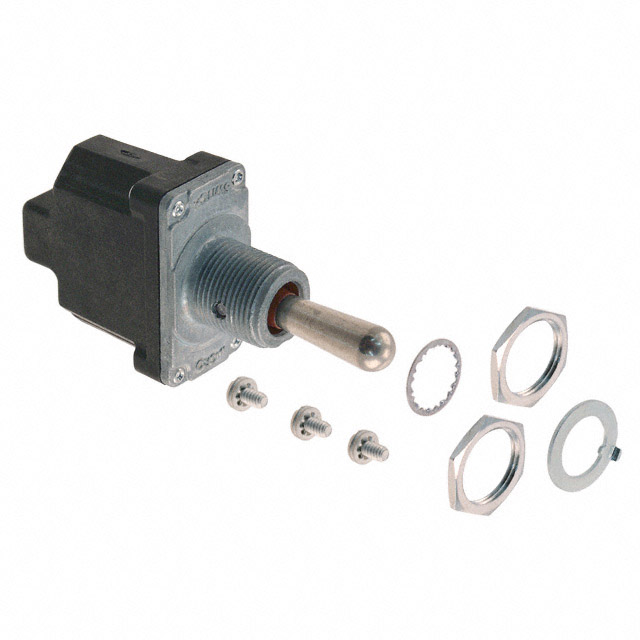

Honeywell Sensing and Productivity Solutions 1NT1-1	71 °C	-40 C	17.02 mm	Non-Illuminated	12.4 mm	Panel Mount	Sealed	15 A	SPDT	On-Off-On	IP67/IP68	15/32-32	Screw Terminal	125 V	Standard Round
Honeywell Sensing and Productivity Solutions 1NT1-8	71 °C	-40 C	17.02 mm	Non-Illuminated	12.4 mm	Panel Mount	Sealed	10 A	SPDT	On-Mom	IP67/IP68	15/32-32	Screw Terminal	125 V	Standard Round
Honeywell Sensing and Productivity Solutions 1NT1-2F	71 °C	-40 C	26.67 mm	Non-Illuminated	12.4 mm	Panel Mount	Sealed	15 A	SPST	On-Off	IP67/IP68	15/32-32	Screw Terminal	125 V	Locking Lever
Honeywell Sensing and Productivity Solutions 1NT1-3	71 °C	-40 C	17.02 mm	Non-Illuminated	12.4 mm	Panel Mount	Sealed	15 A	SPDT	On-On	IP67/IP68	15/32-32	Screw Terminal	125 V	Standard Round
Honeywell Sensing and Productivity Solutions 1NT1-3D	71 °C	-40 C	26.67 mm	Non-Illuminated	12.4 mm	Panel Mount	Sealed	15 A	SPDT	On-On	IP67/IP68	15/32-32	Screw Terminal	125 V	Locking Lever
