M2015BB Series

Catalog

SWITCH TOGGLE SPDT 0.4VA 28V

Part	Electrical Life	Actuator Material	Features	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Illumination	Termination Style	Actuator Length [x]	Circuit	Current Rating (Amps)	Actuator Type	Voltage Rating - AC	Switch Function	Bushing Thread	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Ingress Protection

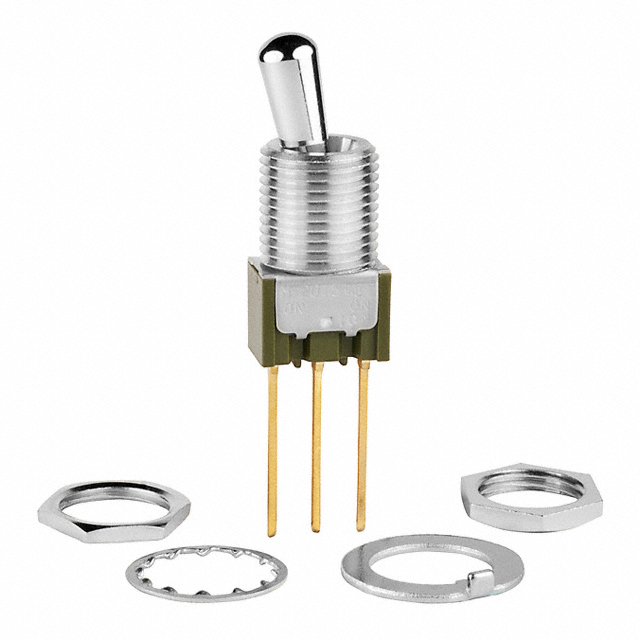

NKK Switches M2015BB1G06	50000 Cycles	Brass Chrome Plated	Epoxy Sealed Terminals	28 V	12.5 mm	Non-Illuminated	Wire Wrap	11.5 mm	SPDT	0.4 VA	Standard Round	28 V	On-Mom	M12 x 1	85 °C	-30 ░C	Panel Mount
NKK Switches M2015BB1A03	25000 Steps	Brass Chrome Plated	Epoxy Sealed Terminals	30 V	12.5 mm	Non-Illuminated	PC Pin	11.5 mm	SPDT	3 A 6 A	Standard Round	125 V	On-Mom	M12 x 1	85 °C	-30 ░C	Panel Mount

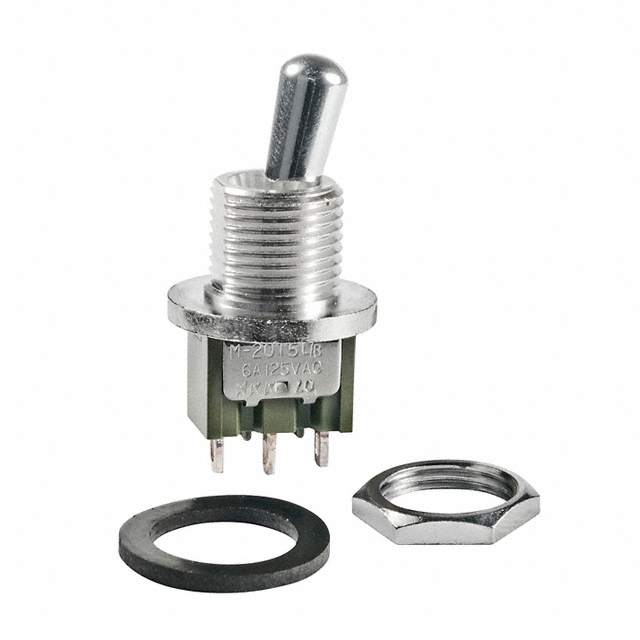

NKK Switches M2015BB3W01	25000 Steps	Brass Chrome Plated	Epoxy Sealed Terminals	30 V	12.5 mm	Non-Illuminated	Solder Lug	11.5 mm	SPDT	3 A 6 A	Standard Round	125 V	On-Mom	M12 x 1	85 °C	-30 ░C	Panel Mount	IP67 - Dust Tight Waterproof

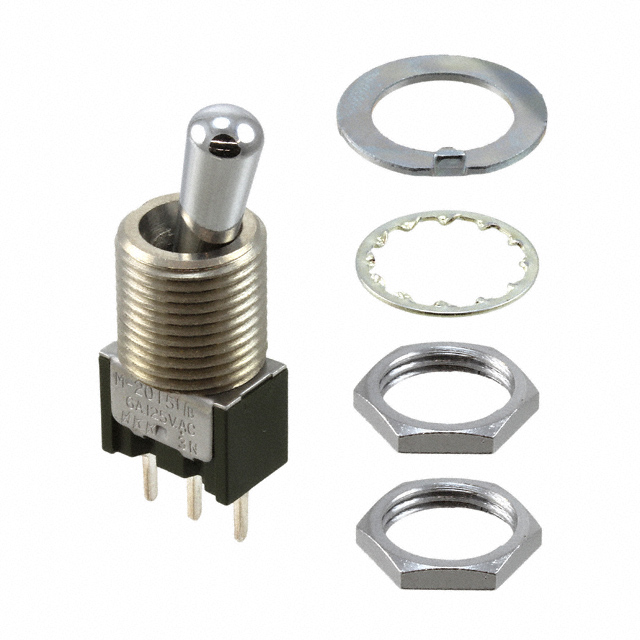

NKK Switches M2015BB1W03	25000 Steps	Brass Chrome Plated	Epoxy Sealed Terminals	30 V	12.5 mm	Non-Illuminated	PC Pin	11.5 mm	SPDT	3 A 6 A	Standard Round	125 V	On-Mom	M12 x 1	85 °C	-30 ░C	Panel Mount
