2EDL Series

Catalog

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Termination	Voltage Rating - Appliance Inlet [Max]	Voltage Rating - Appliance Inlet [Min]	Mounting Type	Connector Style	Features	Connector Type	Current Rating - Appliance Inlet	Fuse Holder, Drawer	Filter Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Current Rating - Filter	Approval Agency	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]

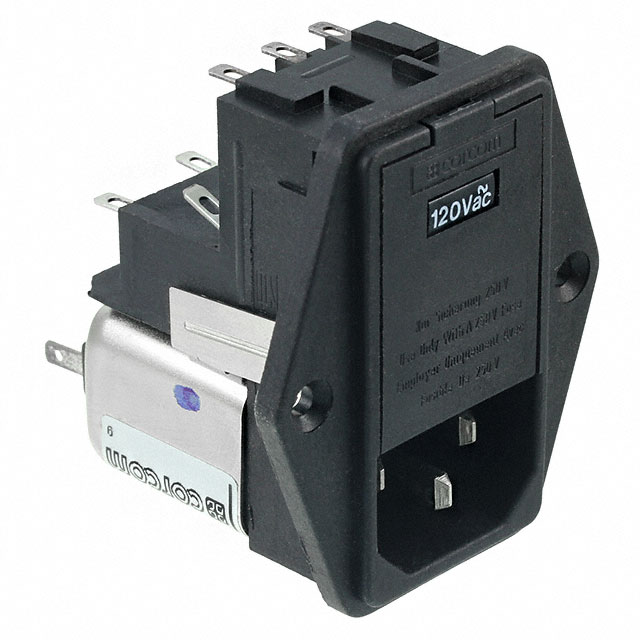

TE Connectivity Raychem Cable Protection 2EDL4	Quick Connect - 0.110" (2.8mm)	250 VAC	120 VAC	Flange Panel Mount	IEC 320-C14	Voltage Selector	Receptacle Male Blades - Module	2 A	Fuse Holder	Filtered (EMI RFI) - Commercial	28.5 mm	55.91 mm	2 A	CSA SEMKO SEV UL VDE
TE Connectivity Raychem Cable Protection 2EDL4CM	Quick Connect - 0.110" (2.8mm)	250 VAC	120 VAC	Panel Mount Snap-In	IEC 320-C14	Voltage Selector	Receptacle Male Blades - Module	2 A	Fuse Holder	Filtered (EMI RFI) - Commercial	28.5 mm	55.91 mm	2 A	CSA SEMKO SEV UL VDE	0.126 in	0.79 mm	3.2 mm	0.031 "
TE Connectivity Raychem Cable Protection 2EDL4C	Quick Connect - 0.110" (2.8mm)	250 VAC	120 VAC	Panel Mount Snap-In	IEC 320-C14	Voltage Selector	Receptacle Male Blades - Module	2 A	Fuse Holder	Filtered (EMI RFI) - Commercial	28.5 mm	55.91 mm	2 A	CSA SEMKO SEV UL VDE	0.126 in	0.79 mm	3.2 mm	0.031 "
