321897 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

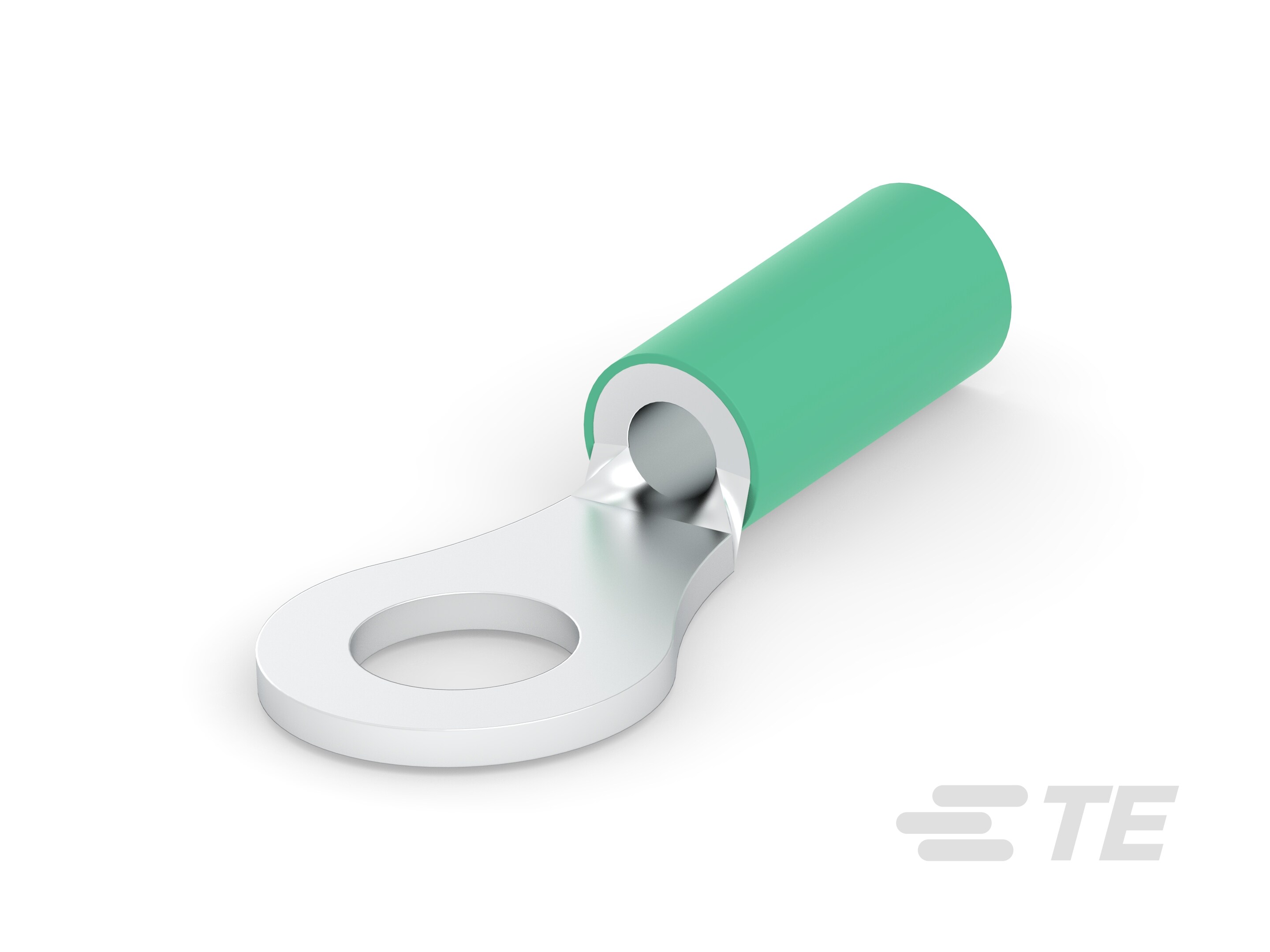

DG 22-16 HT ALUMEL R 8
| Part | Terminal Type | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Thickness | Thickness | Features | Insulation | Contact Material | Color | Stud/Tab Size | Width - Outer Edges [y] | Width - Outer Edges [y] | Mounting Type | Length - Overall [x] | Length - Overall [x] | Termination | Wire Gauge [Max] | Wire Gauge [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Circular | 0.14 in | 0.105 in | 3.56 mm | 2.67 mm | 0.031 in | 0.79 mm | High Temperature Serrated Termination | Insulated | Alumel | Green | M4 Stud | 7.92 mm | 0.312 in | Free Hanging (In-Line) | 20.22 mm | 0.796 in | Crimp | 22 AWG | 17.5 AWG |
