NG-95 Series

Catalog

CABLE GLAND, WITH LOCKNUT, NEMA 4X, PG9, 4 MM, 6.4 MM, NYLON 6.6 (POLYAMIDE 6.6), BLACK, NEMA 4X

Part	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Type	Panel Hole Size	Panel Hole Size	Material	Color	Operating Temperature [Min]	Operating Temperature [Max]	Thread Length	Thread Length	Includes	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Thread Size	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max)
BUD INDUSTRIES NG-9512	4 mm	0.157 in	Cable Gland	0.598 in	15.2 mm	Polyamide (PA) Nylon	Black	-40 C	105 ░C	0.323 in	8.2 mm	Gasket Nut Seal	6.4 mm	0.252 in	PG9
BUD INDUSTRIES NG-9515	10 mm	0.394 "	Cable Gland	0.886 in	22.5 mm	Polyamide (PA) Nylon	Black	-40 C	105 ░C	0.382 in	9.7 mm	Gasket Nut Seal			PG16	0.512 in	13 mm

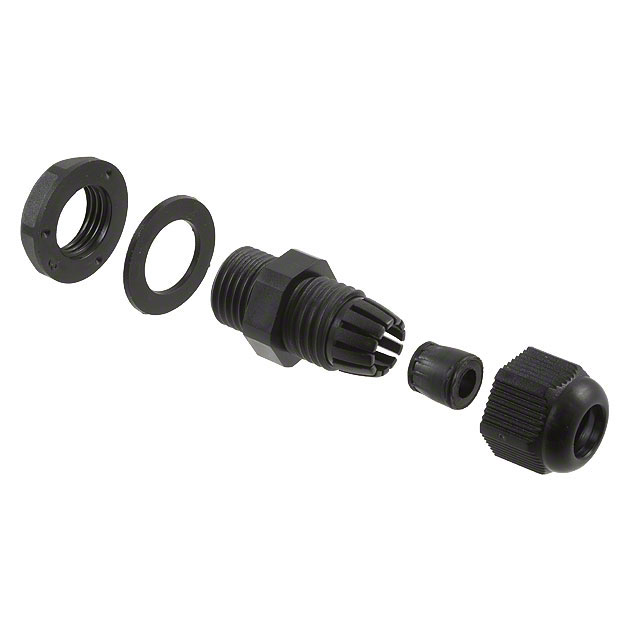

BUD INDUSTRIES NG-9511			Cable Gland	0.492 in	12.5 mm	Polyamide (PA) Nylon	Black	-40 C	105 ░C	0.315 "	8 mm	Gasket Nut Seal		0.169 in	PG7			3 mm	0.118 in	4.29 mm
