DRV8243-Q1 Series

Automotive 40-V, 12-A H-bridge driver with integrated current sensing and feedback

Catalog

Automotive 40-V, 12-A H-bridge driver with integrated current sensing and feedback

Part	Grade	Voltage - Load [Max]	Voltage - Load [Min]	Output Configuration	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output	Function	Technology	Motor Type - Stepper	Interface	Qualification	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Motor Type - AC, DC	Package / Case [y]	Package / Case [y]	Interface [custom]	Interface [custom]

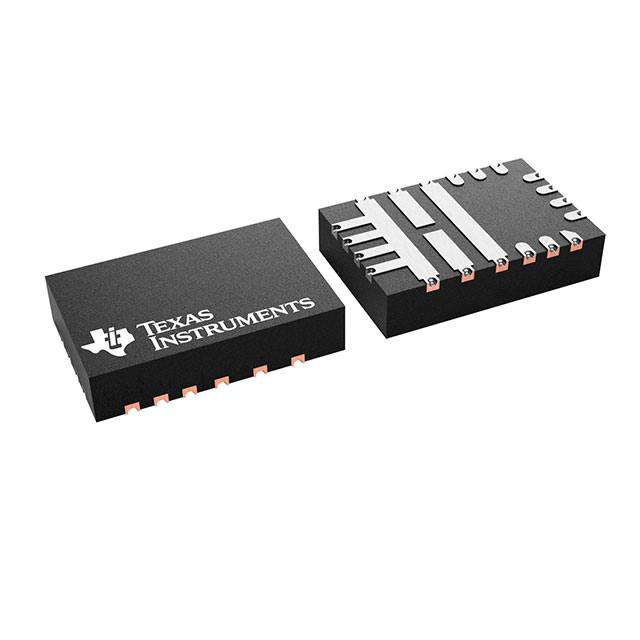

Texas Instruments DRV8243SQRXYRQ1	Automotive	35 V	4.5 V	Half Bridge (2)	14-VQFN-HR (3x4.5)	-40 °C	125 °C	12 A	Driver - Fully Integrated Control and Power Stage	Bi-CMOS	Bipolar	PWM SPI	AEC-Q100	14-VFQFN	4.5 V	35 V	Surface Mount Wettable Flank	Brushed DC
Texas Instruments DRV8243SQDGQRQ1	Automotive	35 V	4.5 V	Half Bridge (2)	28-HTSSOP	-40 °C	125 °C	12 A	Driver - Fully Integrated Control and Power Stage	NMOS	Bipolar	SPI	AEC-Q100	28-PowerTSSOP	4.5 V	35 V	Surface Mount	Brushed DC	0.118 in	3 mm
Texas Instruments DRV8243PQDGQRQ1	Automotive	35 V	4.5 V	Half Bridge (2)	28-HTSSOP	-40 °C	125 °C	12 A	Driver - Fully Integrated Control and Power Stage	NMOS	Bipolar	SPI	AEC-Q100	28-PowerTSSOP	4.5 V	35 V	Surface Mount	Brushed DC	0.118 in	3 mm
Texas Instruments DRV8243HQRXYRQ1	Automotive	35 V	4.5 V	Half Bridge (2)	14-VQFN-HR (3x4.5)	-40 °C	125 °C	12 A	Driver - Fully Integrated Control and Power Stage	Bi-CMOS	Bipolar		AEC-Q100	14-VFQFN	4.5 V	35 V	Surface Mount Wettable Flank	Brushed DC			HW	Hardwired

Catalog

Automotive 40-V, 12-A H-bridge driver with integrated current sensing and feedback

Key Features

• AEC-Q100 qualified for automotive applications:Temperature grade 1: –40°C to +125°C, TAFunctional Safety-CapableDocumentation available to aid functional safety system design4.5-V to 35-V (40-V abs. max) operating rangeVQFN-HR package: RON_LS+ RON_HS: 84 mΩHVSSOP package: RON_LS+ RON_HS: 98 mΩIOUTMax = 12 APWM frequency operation up to 25 KHz with automatic dead time assertionConfigurable slew rate and spread spectrum clocking for low electromagnetic interference (EMI)Integrated current sense (eliminates shunt resistor)Proportional load current output on IPROPI pinConfigurable current regulationProtection and diagnostic features with configurable fault reaction (latched or retry)Load diagnostics in both the off-state and on-state to detect open load and short circuitVoltage monitoring on supply (VM)Over current protectionOver temperature protectionFault indication on nFAULT pinSupports 3.3-V, 5-V logic inputsLow sleep current - 1µA typical at 25°C3 variants - HW (H), SPI (S) or SPI (P)Configurable control modes:Single full bridge using PWM or PH/EN modeTwo half-bridges using Independent modeDevice family comparison tableAEC-Q100 qualified for automotive applications:Temperature grade 1: –40°C to +125°C, TAFunctional Safety-CapableDocumentation available to aid functional safety system design4.5-V to 35-V (40-V abs. max) operating rangeVQFN-HR package: RON_LS+ RON_HS: 84 mΩHVSSOP package: RON_LS+ RON_HS: 98 mΩIOUTMax = 12 APWM frequency operation up to 25 KHz with automatic dead time assertionConfigurable slew rate and spread spectrum clocking for low electromagnetic interference (EMI)Integrated current sense (eliminates shunt resistor)Proportional load current output on IPROPI pinConfigurable current regulationProtection and diagnostic features with configurable fault reaction (latched or retry)Load diagnostics in both the off-state and on-state to detect open load and short circuitVoltage monitoring on supply (VM)Over current protectionOver temperature protectionFault indication on nFAULT pinSupports 3.3-V, 5-V logic inputsLow sleep current - 1µA typical at 25°C3 variants - HW (H), SPI (S) or SPI (P)Configurable control modes:Single full bridge using PWM or PH/EN modeTwo half-bridges using Independent modeDevice family comparison table

Description

The DRV824x-Q1 family of devices is a fully integrated H-bridge driver intended for a wide range of automotive applications. The device can be configured as a single full-bridge driver or as two independent half-bridge drivers. Designed in a BiCMOS high power process technology node, this monolithic family of devices in a power package offer excellent power handling and thermal capability while providing compact package size, ease of layout, EMI control, accurate current sense, robustness, and diagnostic capability. This family provides an identical pin function with scalable RON(current capability) to support different loads. The devices integrate a N-channel H-bridge, charge pump regulator, high-side current sensing with regulation, current proportional output, and protection circuitry. A low-power sleep mode is provided to achieve low quiescent current. The devices offer voltage monitoring and load diagnostics as well as protection features against over current and over temperature. Fault conditions are indicated on nFAULT pin. The devices are available in three variants - hardwired interface: HW (H) and two SPI interface variants: SPI(P) and SPI(S), with SPI (P) for externally supplied logic supply and SPI (S) for internally generated logic supply. The SPI interface variants offer more flexibility in device configuration and fault observability. The DRV824x-Q1 family of devices is a fully integrated H-bridge driver intended for a wide range of automotive applications. The device can be configured as a single full-bridge driver or as two independent half-bridge drivers. Designed in a BiCMOS high power process technology node, this monolithic family of devices in a power package offer excellent power handling and thermal capability while providing compact package size, ease of layout, EMI control, accurate current sense, robustness, and diagnostic capability. This family provides an identical pin function with scalable RON(current capability) to support different loads. The devices integrate a N-channel H-bridge, charge pump regulator, high-side current sensing with regulation, current proportional output, and protection circuitry. A low-power sleep mode is provided to achieve low quiescent current. The devices offer voltage monitoring and load diagnostics as well as protection features against over current and over temperature. Fault conditions are indicated on nFAULT pin. The devices are available in three variants - hardwired interface: HW (H) and two SPI interface variants: SPI(P) and SPI(S), with SPI (P) for externally supplied logic supply and SPI (S) for internally generated logic supply. The SPI interface variants offer more flexibility in device configuration and fault observability.
