FCD Series

Manufacturer: OptiFuse

Catalog

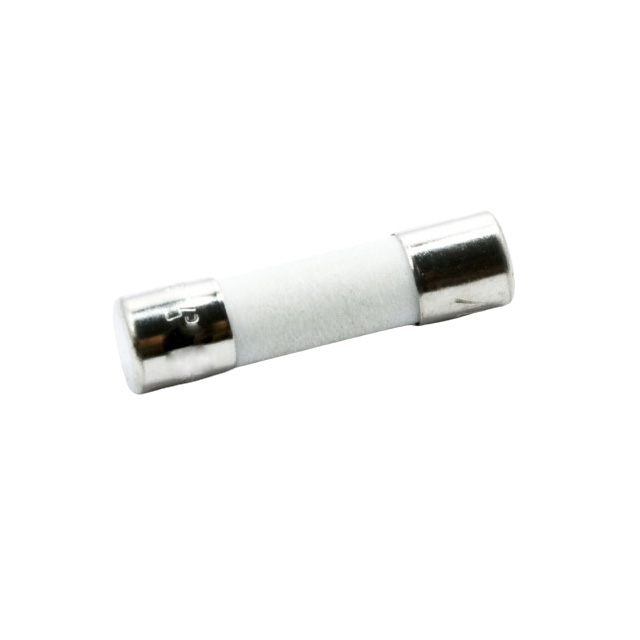

FUSE CERM 12.5A 250VAC 250VDC

Part	Melting I˛t	Approval Agency	Package / Case [x]	Package / Case [y]	Fuse Type	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Melting I²t	Voltage Rating - AC	Voltage Rating - DC	Response Time	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Breaking Capacity @ Rated Voltage
OptiFuse FCD-12.5A	407.6	cURus IEC 60127	5 mm	20 mm	Cartridge Ceramic	12.5 Amps	-55 C	125 °C	Requires Holder	407.6	250 V	250 V	Fast Blow	20 mm	0.205 in	0.787 "	5.2 mm	1.5 kA
OptiFuse FCD-2.5A	1.995	IEC 60127	5 mm	20 mm	Cartridge Ceramic	2.5 A	-55 C	125 °C	Requires Holder	1.995	250 V	250 V	Fast Blow	20 mm	0.205 in	0.787 "	5.2 mm	1.5 kA
OptiFuse FCD-630MA	0.0672	IEC 60127	5 mm	20 mm	Cartridge Ceramic	0.63 A	-55 C	125 °C	Requires Holder	0.0672 I²t	250 V	250 V	Fast Blow	20 mm	0.205 in	0.787 "	5.2 mm	1.5 kA
OptiFuse FCD-250MA	0.004	IEC 60127	5 mm	20 mm	Cartridge Ceramic	0.25 A	-55 C	125 °C	Requires Holder	0.004	250 V	250 V	Fast Blow	20 mm	0.205 in	0.787 "	5.2 mm	1.5 kA
OptiFuse FCD-315MA	0.0142	IEC 60127	5 mm	20 mm	Cartridge Ceramic	0.315 A	-55 C	125 °C	Requires Holder	0.0142	250 V	250 V	Fast Blow	20 mm	0.205 in	0.787 "	5.2 mm	1.5 kA
OptiFuse FCD-1.25A	0.4489	IEC 60127	5 mm	20 mm	Cartridge Ceramic	1.25 A	-55 C	125 °C	Requires Holder	0.4489 I²t	250 V	250 V	Fast Blow	20 mm	0.205 in	0.787 "	5.2 mm	1.5 kA
OptiFuse FCD-16A	642.7	cURus IEC 60127	5 mm	20 mm	Cartridge Ceramic	16 A	-55 C	125 °C	Requires Holder	642.7	250 V	250 V	Fast Blow	20 mm	0.205 in	0.787 "	5.2 mm	1.5 kA
OptiFuse FCD-1A	0.2019	IEC 60127	5 mm	20 mm	Cartridge Ceramic	1 A	-55 C	125 °C	Requires Holder		250 V	250 V	Fast Blow	20 mm	0.205 in	0.787 "	5.2 mm	1.5 kA
OptiFuse FCD-6.3A	51.3	IEC 60127	5 mm	20 mm	Cartridge Ceramic	6.3 A	-55 C	125 °C	Requires Holder	51.3	250 V	250 V	Fast Blow	20 mm	0.205 in	0.787 "	5.2 mm	1.5 kA
OptiFuse FCD-2A	2.204	IEC 60127	5 mm	20 mm	Cartridge Ceramic	2 A	-55 C	125 °C	Requires Holder	2.204 I²t	250 V	250 V	Fast Blow	20 mm	0.205 in	0.787 "	5.2 mm	1.5 kA
