TS2C2F Series
Manufacturer: Switchcraft Inc.
Beta
⌘K

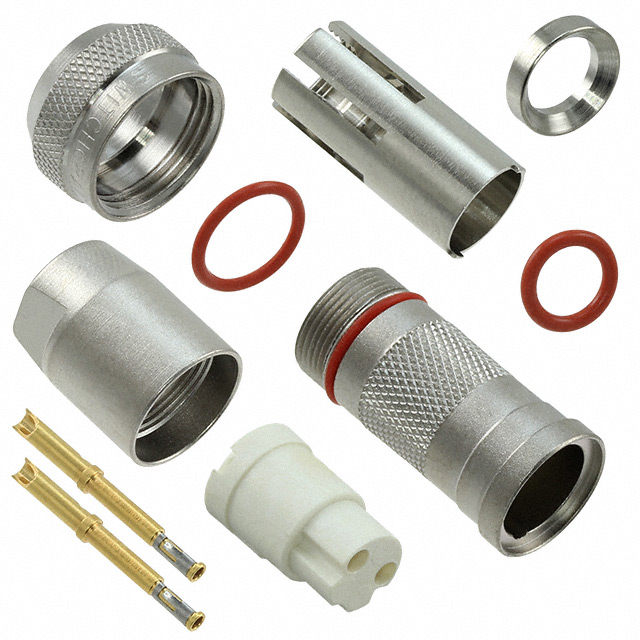

CONN PLUG FMALE 2POS GOLD CRIMP
| Part | Shell Material | Features | Shell Finish | Number of Positions | Contact Material | Backshell Material, Plating | Termination | Primary Material | Voltage Rating | Insert Material | Mounting Type | Orientation | Contact Finish - Mating | Ingress Protection | Applications | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Connector Type | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switchcraft Inc. | Copper Alloy | Backshell Coupling Nut | Electroless Nickel | 2 | Copper Alloy | Copper Alloy Nickel | Crimp Solder Cup | Metal | 125 VAC | Liquid Crystal Polymer (LCP) | Free Hanging (In-Line) | Keyed | Gold | IP66 IP67 IP68 | Agriculture Audio General Medical Testing Equipment & Measurement | 5.49 mm | 4.57 mm | 0.18 in | 0.216 in | Female Sockets Plug | Shielded | 135 °C | -40 °C | Silver |
