796645 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

PLUGGABLE TERMINAL BLOCKS 7POS 5.0MM CE R/A HDR,TRM BLK

Part	Material Flammability Rating	Contact Material	Contact Tail Length	Contact Tail Length	Insulation Height [z]	Insulation Height [z]	Mounting Type	Termination Style	Header Orientation	Color	Voltage - UL	Type	Number of Positions	Contact Mating Finish	Pitch	Pitch	Positions Per Level [custom]	Number of Levels	Operating Temperature [Min]	Operating Temperature [Max]	Positions Per Level
TE Connectivity AMP Connectors 796645-7	UL94 V-0	Copper Alloy	0.138 in	3.5 mm	0.329 in	8.36 mm	Through Hole	Solder	90° Right Angle	Black	300 V	Header Male Pins Shrouded (4 Side)	7	Tin	0.197 in	5 mm	7	1	-40 C	110 °C

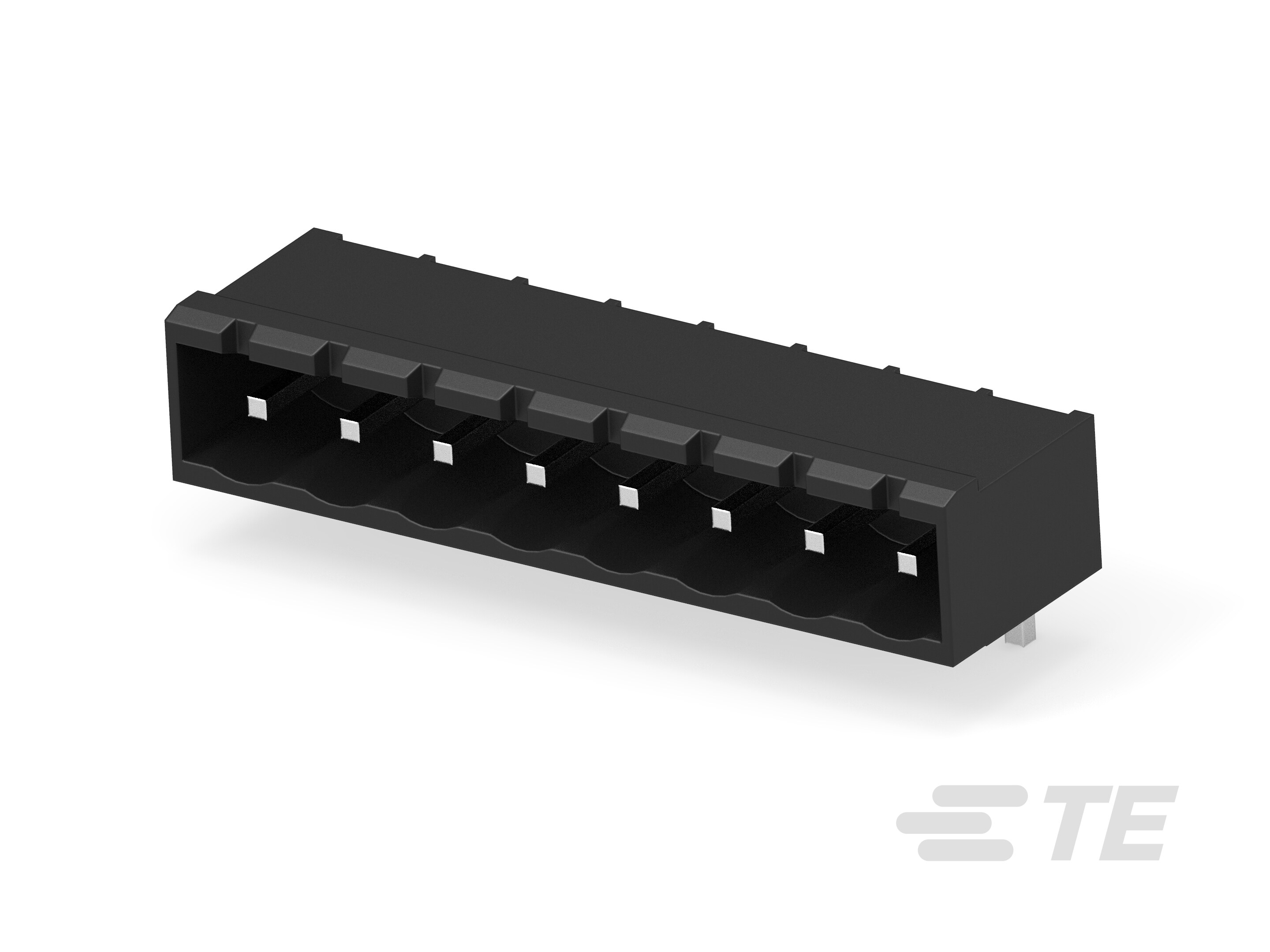

TE Connectivity AMP Connectors 796645-8	UL94 V-0	Copper Alloy	0.138 in	3.5 mm	0.329 in	8.36 mm	Through Hole	Solder	90° Right Angle	Black	300 V	Header Male Pins Shrouded (4 Side)	8	Tin	0.197 in	5 mm		1	-40 C	110 °C	8
TE Connectivity AMP Connectors 796645-9	UL94 V-0	Copper Alloy	0.138 in	3.5 mm	0.329 in	8.36 mm	Through Hole	Solder	90° Right Angle	Black	300 V	Header Male Pins Shrouded (4 Side)	9	Tin	0.197 in	5 mm		1	-40 C	110 °C	9

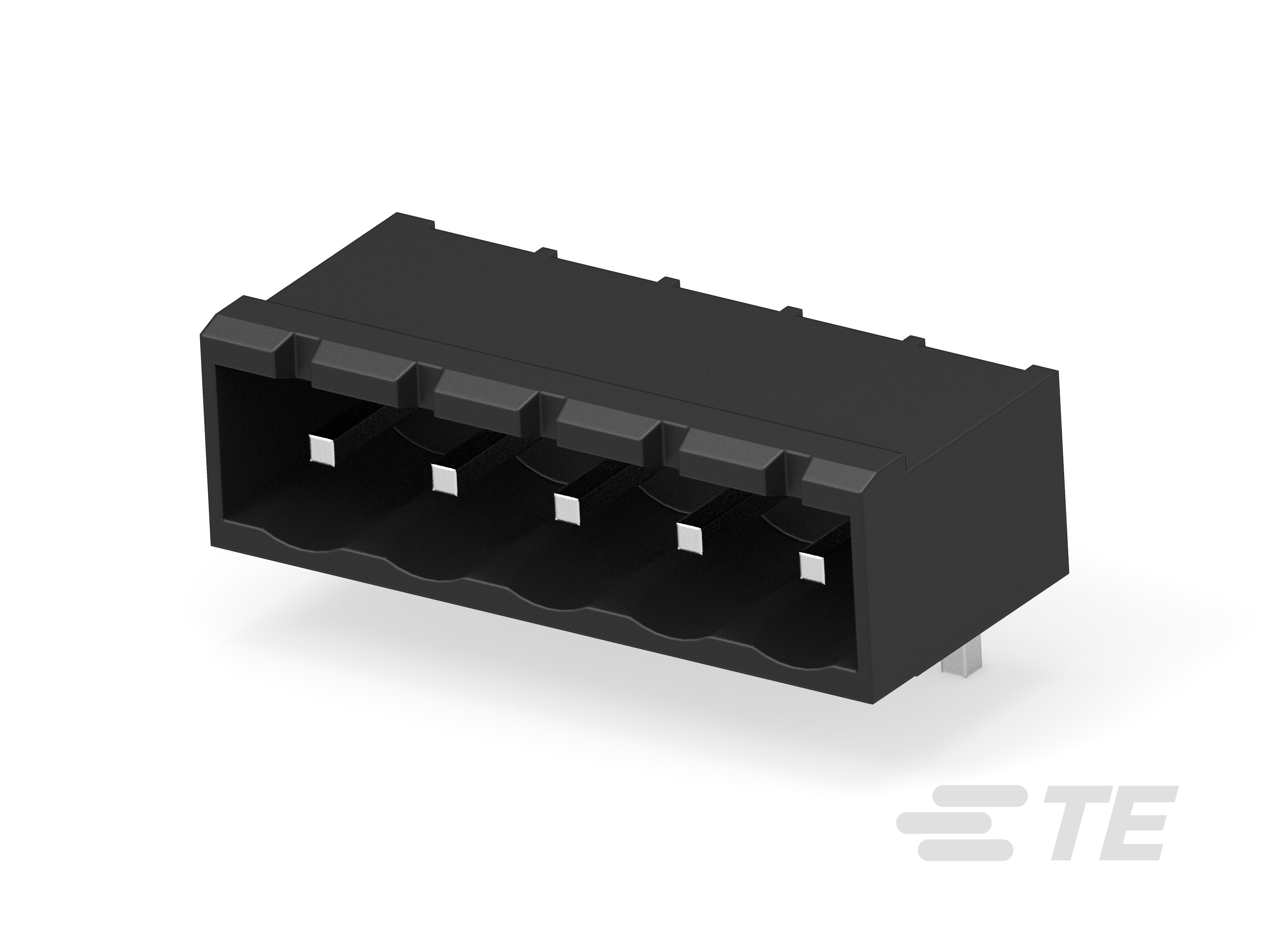

TE Connectivity AMP Connectors 796645-5	UL94 V-0	Copper Alloy	0.138 in	3.5 mm	0.329 in	8.36 mm	Through Hole	Solder	90° Right Angle	Black	300 V	Header Male Pins Shrouded (4 Side)	5	Tin	0.197 in	5 mm		1	-40 C	110 °C	5
TE Connectivity AMP Connectors 796645-2	UL94 V-0	Copper Alloy	0.138 in	3.5 mm	0.329 in	8.36 mm	Through Hole	Solder	90° Right Angle	Black	300 V	Header Male Pins Shrouded (4 Side)	2	Tin	0.197 in	5 mm		1	-40 C	110 °C	2

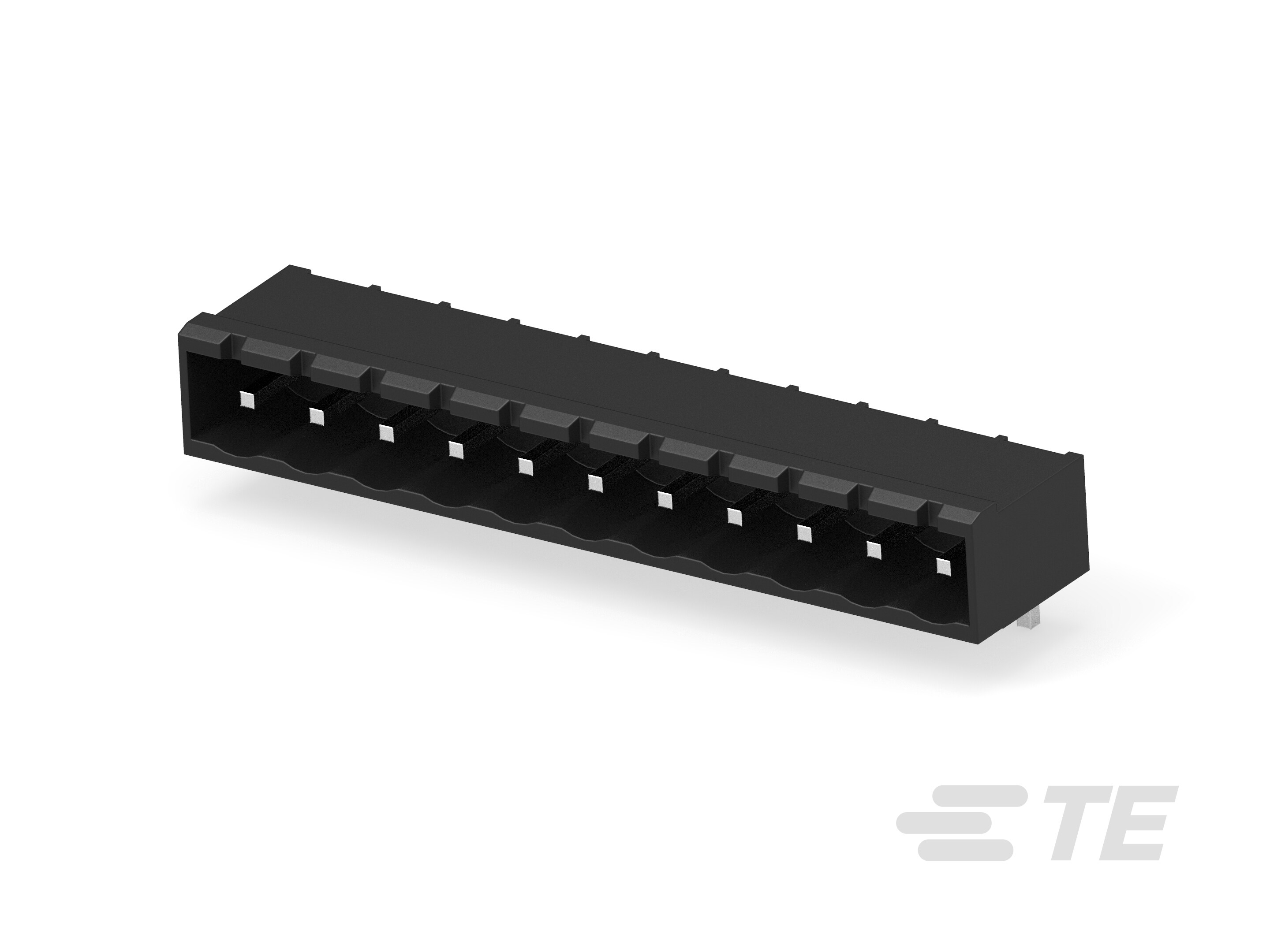

TE Connectivity AMP Connectors 1-796645-1	UL94 V-0	Copper Alloy	0.138 in	3.5 mm	0.329 in	8.36 mm	Through Hole	Solder	90° Right Angle	Black	300 V	Header Male Pins Shrouded (4 Side)	11	Tin	0.197 in	5 mm		1	-40 C	110 °C	11
