045586 Series

Manufacturer: Molex

Catalog

CONN WIRE TO BOARD HDR 8 POS 4.2MM SOLDER RA THRU-HOLE MINI-FIT JR. T/R

Part	Contact Type	Contact Material	Contact Length - Post	Contact Length - Post	Shrouding	Termination	Contact Shape	Current Rating (Amps)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Contact Finish - Mating	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating	Pitch - Mating	Insulation Color	Voltage Rating	Connector Type	Style	Contact Finish - Post	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Insulation Material	Mounting Type	Applications	Number of Positions
Molex 0455860006	Male Pin	Brass	3.5 mm	0.138 in	Shrouded - 4 Wall	Solder	Square	Varies by Wire Gauge	2.54 µm	100 µin	3 µin	0.076 µm	All	Gold	UL94 V-0	4.2 mm	0.165 in	4.2 mm	0.165 in	Black	600 VAC	Header	Board to Cable/Wire	Tin	2	-40 °C	105 ░C	Locking Ramp	Nylon Polyamide (PA)	Through Hole Right Angle	General Purpose Industrial Telecommunications	8
Molex 0455860004	Male Pin	Brass	3.5 mm	0.138 in	Shrouded - 4 Wall	Solder	Square		2.54 µm	100 µin	30 Áin	0.76 Ám	All	Gold	UL94 V-0	4.2 mm	0.165 in	4.2 mm	0.165 in	Black		Header	Board to Cable/Wire	Tin	2			Locking Ramp	Nylon Polyamide (PA)	Through Hole Right Angle	General Purpose Industrial Telecommunications	8

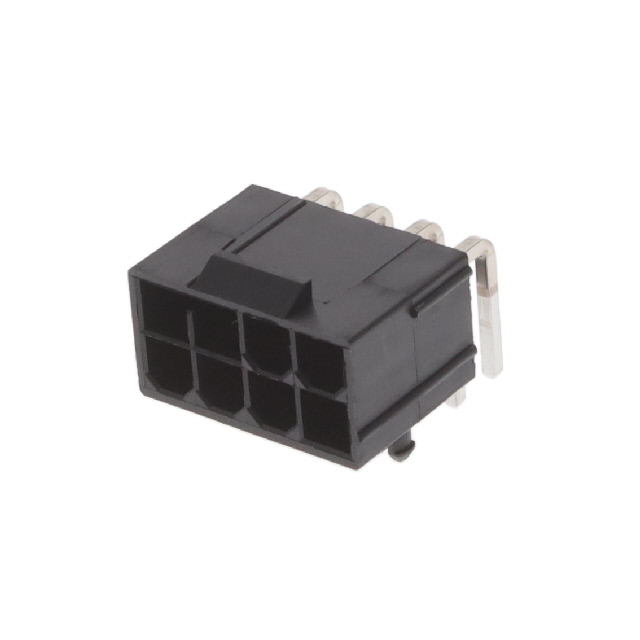

Molex 0455860005	Male Pin	Brass	3.5 mm	0.138 in	Shrouded - 4 Wall	Solder	Square		2.54 µm	100 µin	30 Áin	0.76 Ám	All	Gold	UL94 V-0	4.2 mm	0.165 in	4.2 mm	0.165 in	Black		Header	Board to Cable/Wire	Tin	2			Locking Ramp	Nylon Polyamide (PA)	Through Hole Right Angle	General Purpose Industrial Telecommunications	8
Molex 0455860003	Male Pin	Brass	3.5 mm	0.138 in	Shrouded - 4 Wall	Solder	Square		2.54 µm	100 µin	15 µin	0.38 µm		Gold	UL94 V-0	4.2 mm	0.165 in	4.2 mm	0.165 in	Black		Header	Board to Cable/Wire	Tin	2			Locking Ramp	Nylon Polyamide (PA)	Through Hole Right Angle	General Purpose Industrial Telecommunications	8
