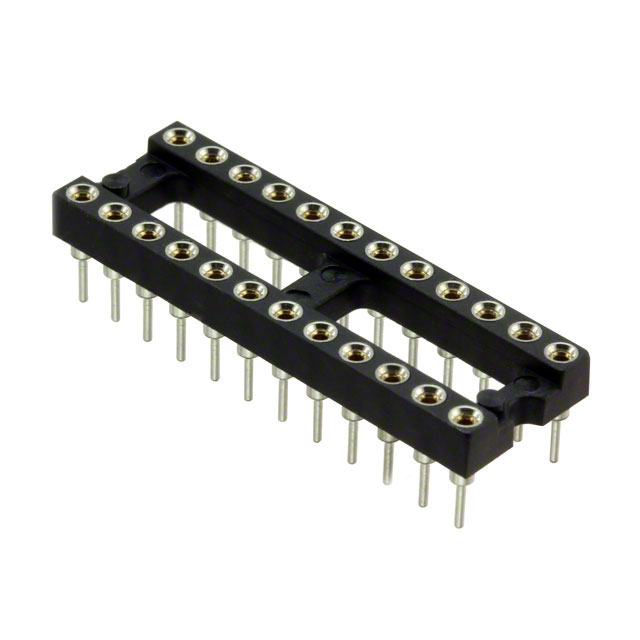

D2924 Series
Manufacturer: Harwin Inc.
Beta
⌘K
DIP, 24POS, 2.54MM, GOLD ROHS COMPLIANT: YES
| Part | Contact Resistance | Current Rating (Amps) | Material Flammability Rating | Termination Post Length [x] | Termination Post Length [x] | Type | Type | Type | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Post | Pitch - Post | Housing Material | Number of Positions or Pins (Grid) [x] | Number of Positions or Pins (Grid) [y] | Number of Positions or Pins (Grid) | Contact Finish - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Mating | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Contact Material - Mating | Mounting Type | Contact Material - Post [custom] | Features | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | 10 mOhm | 1 A | UL94 V-0 | 3.2 mm | 0.126 in | 7.62 mm | 0.3 in | DIP | -55 C | 125 °C | 0.1 in | 2.54 mm | Plastic | 12 | 2 | 24 | Gold | 5 µm | 196.9 µin | Flash | Tin | 0.1 " | 2.54 mm | Beryllium Copper | Through Hole | Brass | Open Frame | Solder |
