LM2825 Series

Catalog

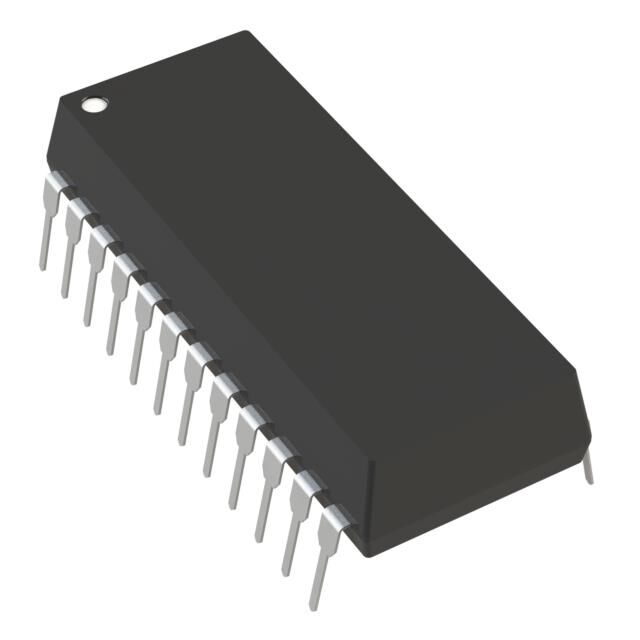

IC REG BUCK ADJ 1A 24DIP

Part	Voltage - Output (Min/Fixed)	Current - Output	Topology	Number of Outputs	Package / Case	Package / Case	Package / Case	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Function	Output Type	Output Configuration	Voltage - Input (Min) [Min]	Output Type
Texas Instruments LM2825HN-ADJ	1.23 V	1 A	Buck	1	24-DIP	0.6 in	15.24 mm	Through Hole	85 °C	-40 °C	24-PDIP	Step-Down	Adjustable	Positive	4.5 V
Texas Instruments LM2825N-12	12 V	1 A	Buck	1	24-DIP	0.6 in	15.24 mm	Through Hole	85 °C	-40 °C	24-PDIP	Step-Down		Positive	15 V	1.81 mOhm
Texas Instruments LM2825N-ADJ/NOPB	1.23 V	1 A	Buck	1	24-DIP	0.6 in	15.24 mm	Through Hole	85 °C	-40 °C	24-PDIP	Step-Down	Adjustable	Positive	4.5 V
Texas Instruments LM2825HN-ADJ/NOPB	1.23 V	1 A	Buck	1	24-DIP	0.6 in	15.24 mm	Through Hole	85 °C	-40 °C	24-PDIP	Step-Down	Adjustable	Positive	4.5 V
Texas Instruments LM2825N-12/NOPB	12 V	1 A	Buck	1	24-DIP	0.6 in	15.24 mm	Through Hole	85 °C	-40 °C	24-PDIP	Step-Down		Positive	15 V	1.81 mOhm
Texas Instruments LM2825N-5.0/NOPB	5 V	1 A	Buck	1	24-DIP	0.6 in	15.24 mm	Through Hole	85 °C	-40 °C	24-PDIP	Step-Down		Positive	7 V	1.81 mOhm
Texas Instruments LM2825N-3.3/NOPB	3.3 V	1 A	Buck	1	24-DIP	0.6 in	15.24 mm	Through Hole	85 °C	-40 °C	24-PDIP	Step-Down		Positive	4.75 V	1.81 mOhm
Texas Instruments LM2825N-5.0	5 V	1 A	Buck	1	24-DIP	0.6 in	15.24 mm	Through Hole	85 °C	-40 °C	24-PDIP	Step-Down		Positive	7 V	1.81 mOhm
