79206 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

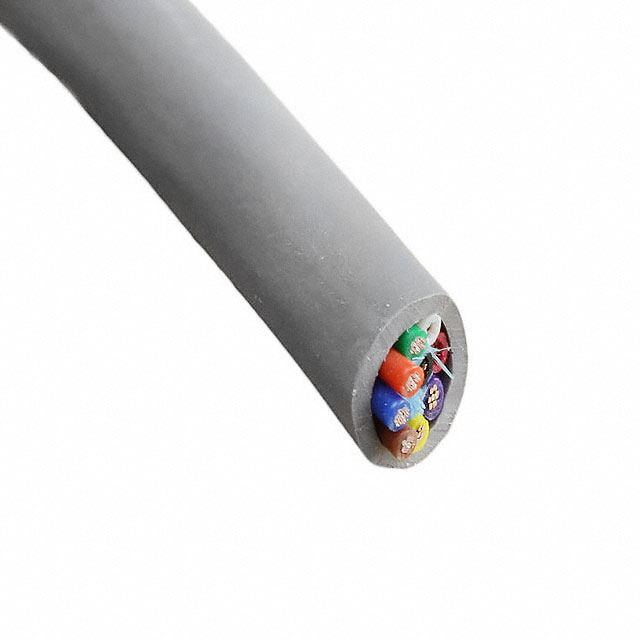

MULTICONDUCTOR CABLE, ECOGEN™ ECOFLEX®, SHIELDED, 9 CONDUCTOR, 20 AWG, 0.51 MM², 1000 FT, 305 M
| Part | Shield Coverage | Shield Material | Ratings | Wire Gauge | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Features | Jacket (Insulation) Material | Cable Type | Number of Conductors | Conductor Insulation | Shield Type | Conductor Material | Voltage | Length | Length | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | ISO 10993 | 20 AWG | -40 C | 105 ░C | 0.328 in | 8.33 mm | 10 | 30 AWG | 0.035 in | 0.889 mm | Slate | Biological Compatibility | Polyphenylene Ether Modified (mPPE) | Multi-Conductor | 9 | Polyphenylene Ether Modified (mPPE) | Braid Foil | Copper Tinned | 600 V | 304.8 m | 1000 ft | ||
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | ISO 10993 | 20 AWG | -40 C | 105 ░C | 0.328 in | 8.33 mm | 10 | 30 AWG | 0.035 in | 0.889 mm | Slate | Biological Compatibility | Polyphenylene Ether Modified (mPPE) | Multi-Conductor | 9 | Polyphenylene Ether Modified (mPPE) | Braid Foil | Copper Tinned | 600 V | ||||
ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | ISO 10993 | 20 AWG | -40 C | 105 ░C | 0.328 in | 8.33 mm | 10 | 30 AWG | 0.035 in | 0.889 mm | Slate | Biological Compatibility | Polyphenylene Ether Modified (mPPE) | Multi-Conductor | 9 | Polyphenylene Ether Modified (mPPE) | Braid Foil | Copper Tinned | 600 V | 100 ft | 30.5 m |
