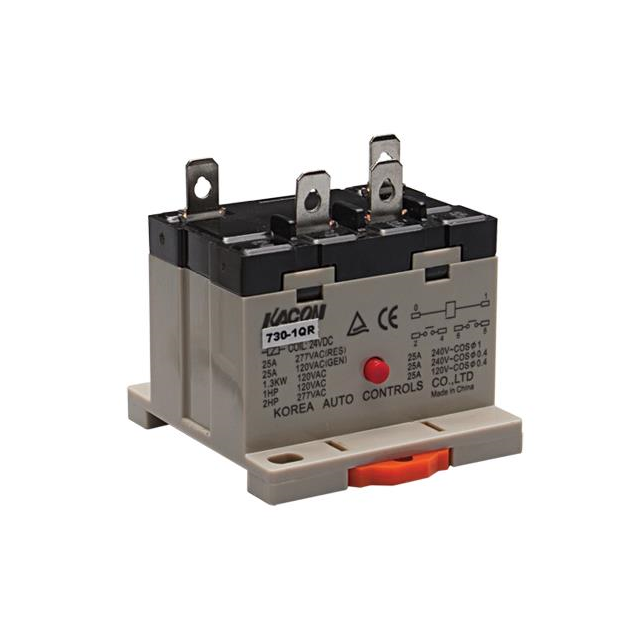

730-1QR Series
Manufacturer: Kacon
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
RELAY GEN PURPOSE SPST 30A 220V
| Part | Mounting Type | Contact Material | Quick Connect Size (0.250") | Termination Style | Release Time | Coil Voltage | Switching Voltage DC (Max) | Switching Voltage AC (Max) | Coil Current | Relay Type | Contact Rating (Current) | Operate Time | Operating Temperature (Max) | Operating Temperature (Min) | Form A Count | Contact Form | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kacon | DIN Rail | Silver Alloy | 0.25 in | Quick Connect | 30 ms | 220 V | 30 VDC | 277 VAC | 11.8 mA | General Purpose | 30 A | 30 ms | 60 °C | -10 °C | 1 | SPST-NO | Test Button |
