IME18 Series
Manufacturer: SICK, Inc.
Beta
⌘K

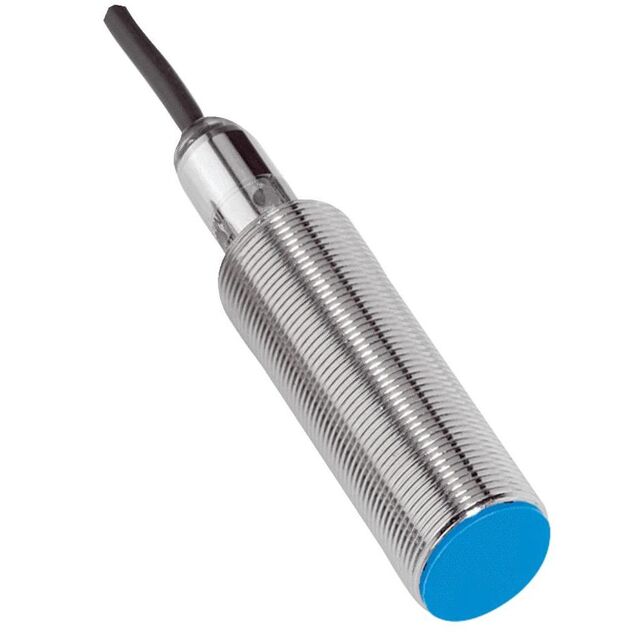

SENSOR PROX INDUC 8MM CYL 3M CBL
| Part | Material - Body | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Voltage - Supply [Min] | Voltage - Supply [Max] | Termination Style | Response Frequency | Output Type | Output Type | Sensor Type | Shielding | Indicator | Sensing Distance | Sensing Distance | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SICK, Inc. | Plastic | -25 °C | 75 °C | Cylinder Threaded - M18 | 10 VDC | 30 VDC | Cable Leads | 1 kHz | PNP-NO | 3 | Inductive | Shielded | LED | 8 mm | 0.315 in | IP67 |
 SICK, Inc. | Plastic | -25 °C | 75 °C | Cylinder Threaded - M18 | 10 VDC | 30 VDC | Cable Leads | 1 kHz | 2-Wire NC | Inductive | Shielded | LED | 8 mm | 0.315 in | IP67 | |
 SICK, Inc. | Plastic | -25 °C | 75 °C | Cylinder Threaded - M18 | 10 VDC | 30 VDC | Connector | 1 kHz | PNP-NC | 3 | Inductive | Shielded | LED | 8 mm | 0.315 in | IP67 |
SICK, Inc. | Plastic | -25 °C | 75 °C | Cylinder Threaded - M18 | 10 VDC | 30 VDC | Connector | 1 kHz | 2-Wire NC | Inductive | Shielded | LED | 12 mm | 0.472 in | IP67 | |
 SICK, Inc. | Plastic | -25 °C | 75 °C | Cylinder Threaded - M18 | 10 VDC | 30 VDC | Cable Leads | 1 kHz | 3-Wire NPN-NC | Inductive | Shielded | LED | 8 mm | 0.315 in | IP67 | |
SICK, Inc. | Plastic | -25 °C | 75 °C | Cylinder Threaded - M18 | 10 VDC | 30 VDC | Cable Leads | 1 kHz | 3-Wire NPN-NO | Inductive | Shielded | LED | 8 mm | 0.315 in | IP67 | |
 SICK, Inc. | Plastic | -25 °C | 75 °C | Cylinder Threaded - M18 | 10 VDC | 30 VDC | Cable Leads | 1 kHz | PNP-NC | 3 | Inductive | Shielded | LED | 8 mm | 0.315 in | IP67 |
 SICK, Inc. | Plastic | -25 °C | 75 °C | Cylinder Threaded - M18 | 10 VDC | 30 VDC | Connector | 1 kHz | 3-Wire NPN-NO | Inductive | Shielded | LED | 5 mm | 0.197 in | IP67 | |
 SICK, Inc. | Plastic | -25 °C | 75 °C | Cylinder Threaded - M18 | 10 VDC | 30 VDC | Cable Leads | 1 kHz | 3-Wire NPN-NO | Inductive | Shielded | LED | 8 mm | 0.315 in | IP67 | |
SICK, Inc. | Plastic | -25 °C | 75 °C | Cylinder Threaded - M18 | 10 VDC | 30 VDC | Cable Leads | 1 kHz | PNP-NC | 3 | Inductive | Shielded | LED | 8 mm | 0.315 in | IP67 |
