0555-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT .015-.025 SOLDER

Part	Flange Diameter [diameter]	Flange Diameter [diameter]	Socket Depth [z]	Socket Depth [z]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Tail Type	Contact Finish Thickness	Contact Finish Thickness	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Termination	Length - Overall [x]	Length - Overall [x]

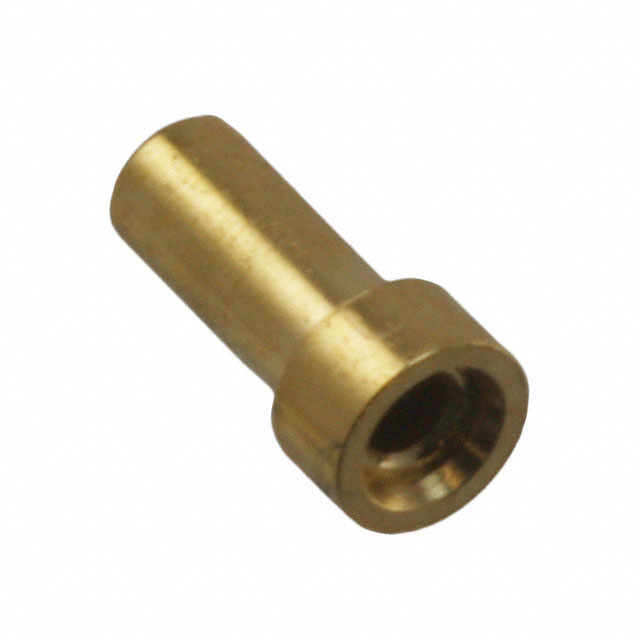

Mill-Max Manufacturing Corp. 0555-0-15-15-20-27-10-0	1.83 mm	0.072 in	3.43 mm	0.135 in	0.025 "	0.64 mm	0.015 "	0.38 mm	Beryllium Copper	-55 °C	125 °C	Gold	No Tail	0.76 Ám	30 Áin	0.053 in	1.35 mm	Solder	4.06 mm	0.16 in

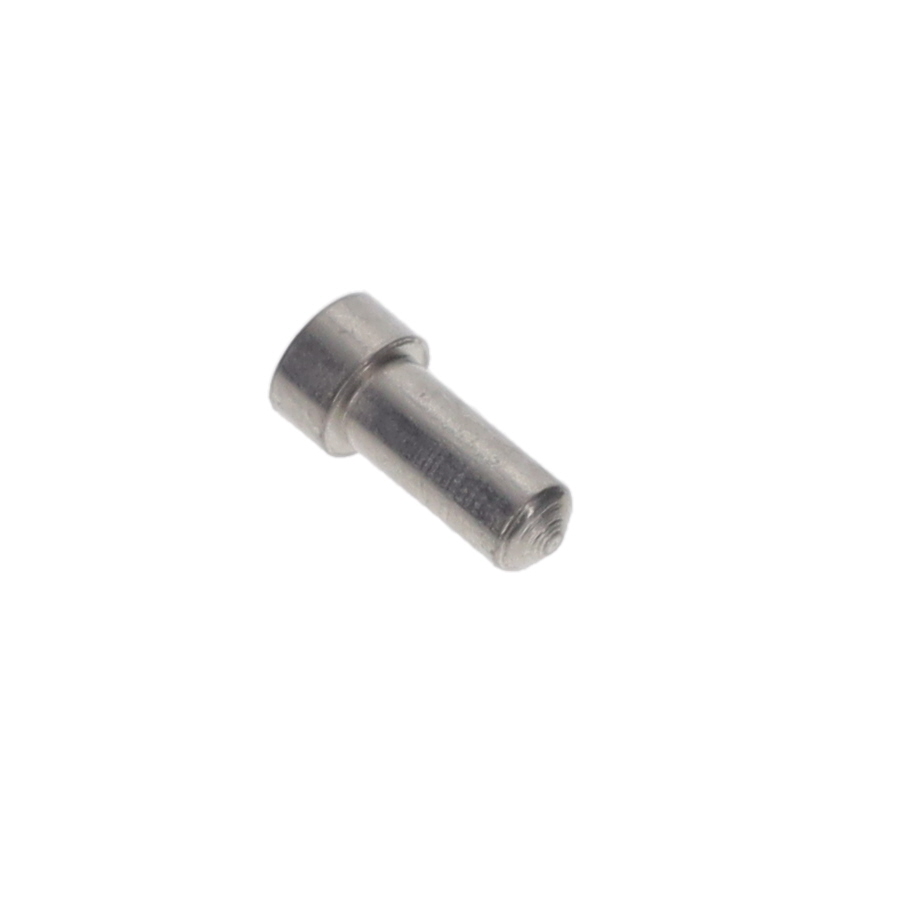

Mill-Max Manufacturing Corp. 0555-0-15-80-30-27-10-0	1.83 mm	0.072 in	3.43 mm	0.135 in	0.025 "	0.64 mm	0.015 "	0.38 mm	Beryllium Copper	-55 °C	125 °C	Gold	No Tail	0.76 Ám	30 Áin	0.053 in	1.35 mm	Solder	4.06 mm	0.16 in
Mill-Max Manufacturing Corp. 0555-0-15-80-32-84-10-0	1.83 mm	0.072 in	3.43 mm	0.135 in	0.025 "	0.64 mm	0.015 "	0.38 mm	Beryllium Copper	-55 °C	125 °C	Tin	No Tail	2.54 µm	100 µin	0.053 in	1.35 mm	Solder	4.06 mm	0.16 in
Mill-Max Manufacturing Corp. 0555-0-15-15-32-14-10-0	1.83 mm	0.072 in	3.43 mm	0.135 in	0.025 "	0.64 mm	0.015 "	0.38 mm	Beryllium Copper	-55 °C	125 °C	Gold	No Tail	0.25 Ám	10 Áin	0.053 in	1.35 mm	Solder	4.06 mm	0.16 in
Mill-Max Manufacturing Corp. 0555-0-15-15-30-14-10-0	1.83 mm	0.072 in	3.43 mm	0.135 in	0.025 "	0.64 mm	0.015 "	0.38 mm	Beryllium Copper	-55 °C	125 °C	Gold	No Tail	0.25 Ám	10 Áin	0.053 in	1.35 mm	Solder	4.06 mm	0.16 in

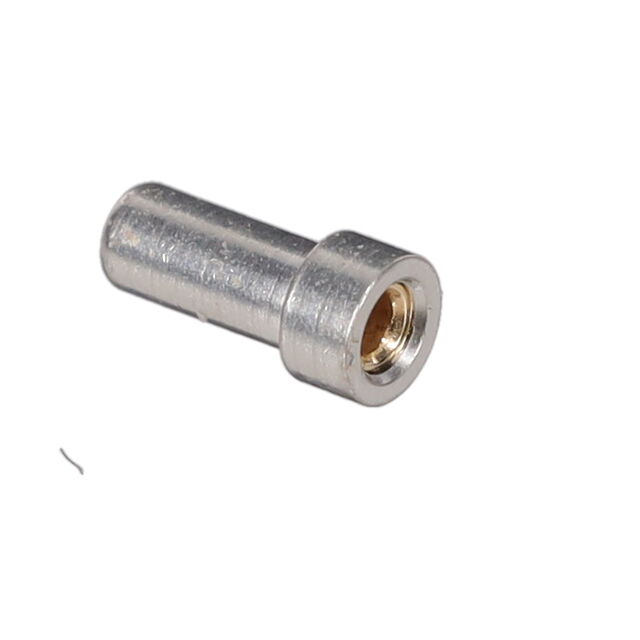

Mill-Max Manufacturing Corp. 0555-0-15-80-20-27-10-0	1.83 mm	0.072 in	3.43 mm	0.135 in	0.025 "	0.64 mm	0.015 "	0.38 mm	Beryllium Copper	-55 °C	125 °C	Gold	No Tail	0.76 Ám	30 Áin	0.053 in	1.35 mm	Solder	4.06 mm	0.16 in
Mill-Max Manufacturing Corp. 0555-0-15-01-20-02-10-0	1.83 mm	0.072 in	3.43 mm	0.135 in	0.025 "	0.64 mm	0.015 "	0.38 mm	Beryllium Copper	-55 °C	125 °C	Tin-Lead	No Tail	2.54 µm	100 µin	0.053 in	1.35 mm	Solder	4.06 mm	0.16 in
Mill-Max Manufacturing Corp. 0555-0-15-01-32-02-10-0	1.83 mm	0.072 in	3.43 mm	0.135 in	0.025 "	0.64 mm	0.015 "	0.38 mm	Beryllium Copper	-55 °C	125 °C	Tin-Lead	No Tail	2.54 µm	100 µin	0.053 in	1.35 mm	Solder	4.06 mm	0.16 in
Mill-Max Manufacturing Corp. 0555-0-15-01-32-14-10-0	1.83 mm	0.072 in	3.43 mm	0.135 in	0.025 "	0.64 mm	0.015 "	0.38 mm	Beryllium Copper	-55 °C	125 °C	Gold	No Tail	0.25 Ám	10 Áin	0.053 in	1.35 mm	Solder	4.06 mm	0.16 in
Mill-Max Manufacturing Corp. 0555-0-15-01-30-14-10-0	1.83 mm	0.072 in	3.43 mm	0.135 in	0.025 "	0.64 mm	0.015 "	0.38 mm	Beryllium Copper	-55 °C	125 °C	Gold	No Tail	0.25 Ám	10 Áin	0.053 in	1.35 mm	Solder	4.06 mm	0.16 in
