S18U Series
Manufacturer: BANNER ENGINEERING
Beta
⌘K

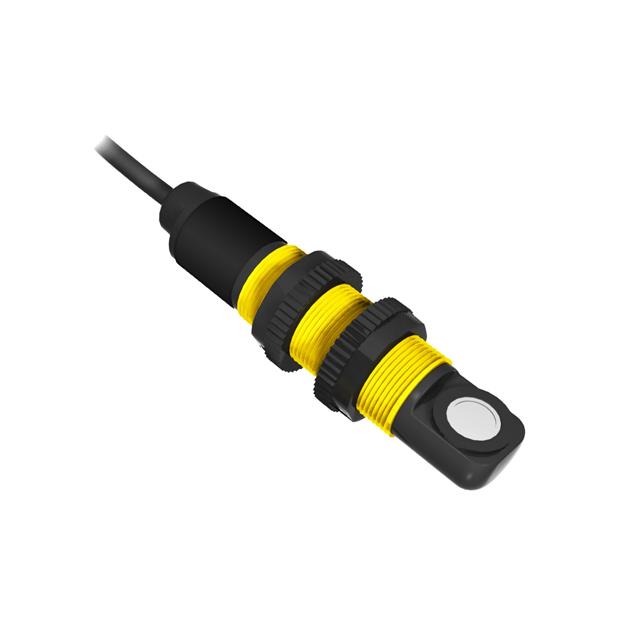

PHOTOELECTRIC SENSORS ANALOG S18U RIGHT-ANGLE SERIES: PROXIMITY MODE; RANGE: 30-300 MM; INPUT 12-30 V DC; OUTPUTS: ANALOG 0-10 V; 2 M (6.5 FT) CABLE
| Part | Sensing Distance [Max] | Sensing Distance [Min] | Sensing Distance [Max] | Sensing Distance [Min] | Package / Case | Sensor Type | Operating Temperature [Min] | Operating Temperature [Max] | Output Type | Material - Body | Termination Style | Shielding | Ingress Protection | Voltage - Supply [Min] | Voltage - Supply [Max] | Indicator | Sensing Distance [Max] | Adjustment Type | Output Configuration | Light Source | Connection Method | Response Time | Response Frequency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

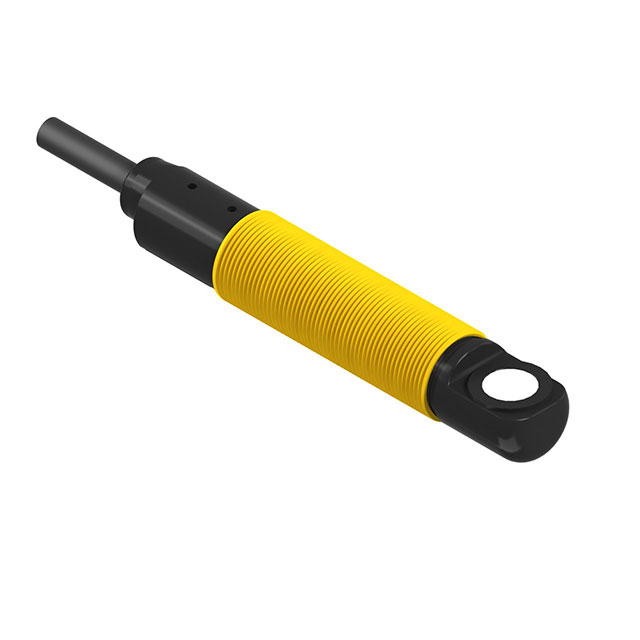

 BANNER ENGINEERING | 300 mm | 30 mm | 11.811 " | 1.181 in | Cylinder Threaded | Ultrasonic | -20 ░C | 60 °C | Analog Voltage | Acrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | Cable Leads | Unshielded | IP67 NEMA 6P | 10 VDC | 30 VDC | LED | |||||||

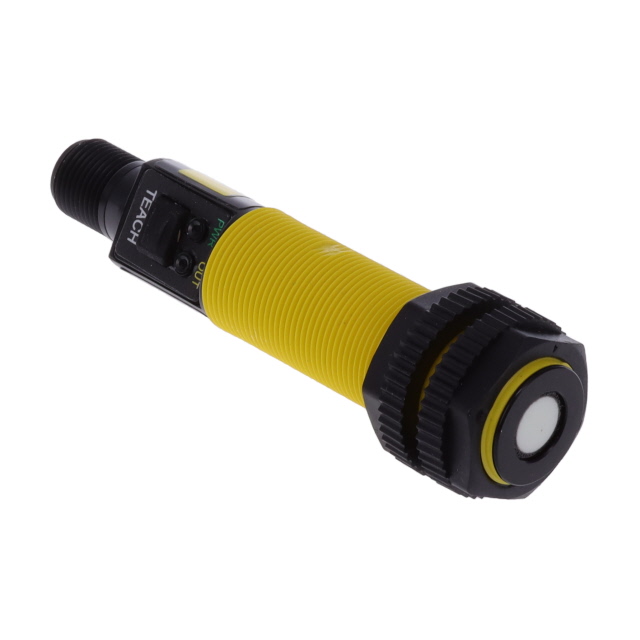

BANNER ENGINEERING | 30 mm | 11.81 in | 1.18 " | -40 C | 85 °C | IP67 NEMA 6P | 10 VDC | 30 VDC | 30 cm | Adjustable | Analog | LED | Connector | 2.5 ms | |||||||||

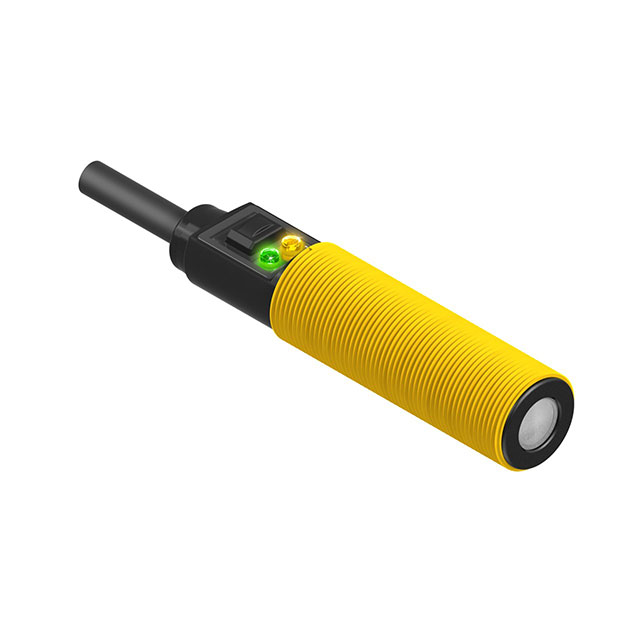

 BANNER ENGINEERING | 300 mm | 30 mm | 11.811 " | 1.181 in | Cylinder Threaded - M18 | Ultrasonic | -20 ░C | 60 °C | 4-Wire NPN/PNP-NC/NO | Connector | Unshielded | IP67 | 10 VDC | 30 VDC | LED | 300 kHz |
