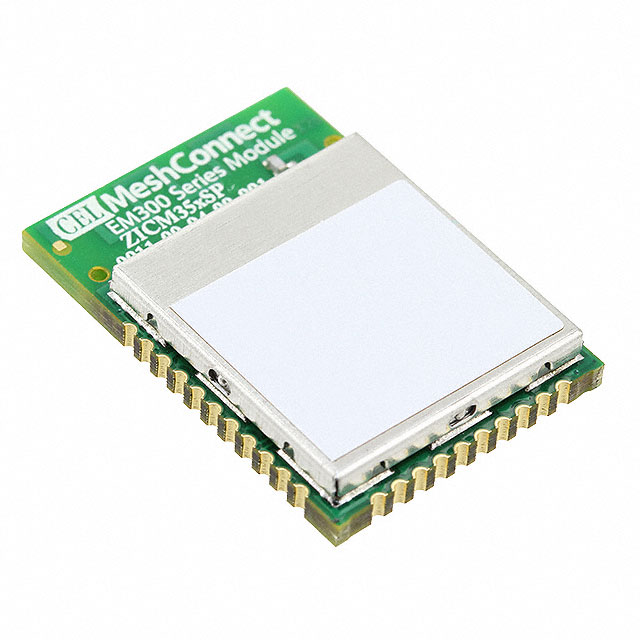

ZICM357 Series

Manufacturer: Renesas Electronics Corporation

Catalog

RF TXRX MOD 802.15.4 CAST SMD

Part	Antenna Type	Protocol	Voltage - Supply [Max]	Voltage - Supply [Min]	Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Data Rate	RF Family/Standard	Package / Case	Mounting Type	Sensitivity	Serial Interfaces	Utilized IC / Part	Current - Transmitting [Min]	Current - Transmitting [Max]	Memory Size	Power - Output	Current - Receiving
Renesas Electronics Corporation ZICM357SP2-1C-R	Antenna Not Included Castellation	Zigbee®	3.6 V	2.1 V	2.4 GHz	85 °C	-40 C	250 KBd	802.15.4	Module	Surface Mount	-103 dBm	JTAG SPI UART	EM357	58 mA	150 mA	12 kB 192 kB	20 dBm	34 mA
Renesas Electronics Corporation ZICM357SP2-1C-HT-R	Antenna Not Included Castellation	Zigbee®	3.6 V	2.1 V	2.4 GHz	110 °C	-40 C	250 KBd	802.15.4	Module	Surface Mount	-103 dBm	JTAG SPI UART	EM357	150 mA	175 mA	12 kB 192 kB	20 dBm	34 mA
Renesas Electronics Corporation ZICM357SP2-1C-HT	Antenna Not Included Castellation	Zigbee®	3.6 V	2.1 V	2.4 GHz	110 °C	-40 C	250 KBd	802.15.4	Module	Surface Mount	-103 dBm	JTAG SPI UART	EM357	150 mA	175 mA	12 kB 192 kB	20 dBm	34 mA
Renesas Electronics Corporation ZICM357SP0-1C-R	Antenna Not Included Castellation	Zigbee®	3.6 V	2.1 V	2.4 GHz	85 °C	-40 C	250 KBd	802.15.4	Module	Surface Mount	-100 dBm	JTAG SPI UART	EM357	31 mA	44 mA	12 kB 192 kB	8 dBm	30 mA
Renesas Electronics Corporation ZICM357SP2-1-R	Integrated Trace	Zigbee®	3.6 V	2.1 V	2.4 GHz	85 °C	-40 C	250 KBd	802.15.4	Module	Surface Mount	-103 dBm	JTAG SPI UART	EM357	58 mA	150 mA	12 kB 192 kB	20 dBm	34 mA
Renesas Electronics Corporation ZICM357SP2-2C-R	Antenna Not Included Castellation	Zigbee®	3.6 V	2.1 V	2.4 GHz	85 °C	-40 C	250 KBd	802.15.4	Module	Surface Mount	-103 dBm	JTAG SPI UART	EM357	58 mA	150 mA	12 kB 192 kB	20 dBm	34 mA
Renesas Electronics Corporation ZICM357SP2-2-R	Integrated Trace	Zigbee®	3.6 V	2.1 V	2.4 GHz	85 °C	-40 C	250 KBd	802.15.4	Module	Surface Mount	-103 dBm	JTAG SPI UART	EM357	58 mA	150 mA	12 kB 192 kB	20 dBm	34 mA
