796864 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
TERM BLOCK HDR 3POS 90DEG 5MM
| Part | Insulation Height [z] | Insulation Height [z] | Contact Material | Contact Tail Length | Contact Tail Length | Material Flammability Rating | Number of Levels | Header Orientation | Type | Color | Mounting Type | Voltage - UL | Features | Contact Mating Finish | Pitch | Pitch | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Positions Per Level | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

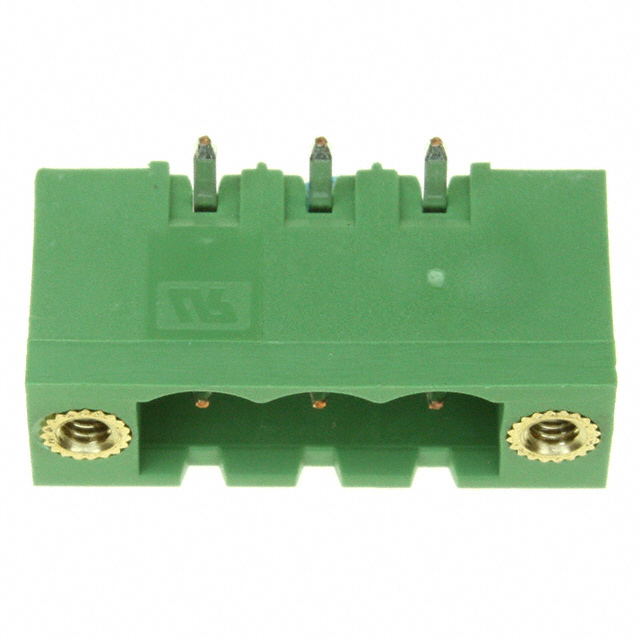

 TE Connectivity AMP Connectors | 0.329 in | 8.36 mm | Phosphor Bronze | 0.138 in | 3.5 mm | UL94 V-0 | 1 | 90° Right Angle | Header Male Pins Shrouded (4 Side) | Green | Through Hole | 300 V | Mating Flange | Tin | 0.197 in | 5 mm | -40 C | 110 °C | Solder | 3 | |
 TE Connectivity AMP Connectors | 0.329 in | 8.36 mm | Phosphor Bronze | 0.138 in | 3.5 mm | UL94 V-0 | 1 | 90° Right Angle | Header Male Pins Shrouded (4 Side) | Green | Through Hole | 300 V | Mating Flange | Tin | 0.197 in | 5 mm | -40 C | 110 °C | Solder | 4 | 4 |

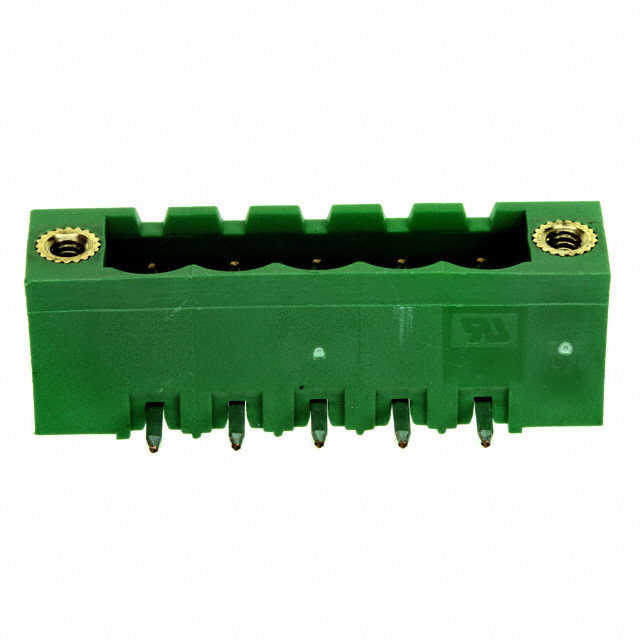

 TE Connectivity AMP Connectors | 0.329 in | 8.36 mm | Phosphor Bronze | 0.138 in | 3.5 mm | UL94 V-0 | 1 | 90° Right Angle | Header Male Pins Shrouded (4 Side) | Green | Through Hole | 300 V | Mating Flange | Tin | 0.197 in | 5 mm | -40 C | 110 °C | Solder | 5 | 5 |

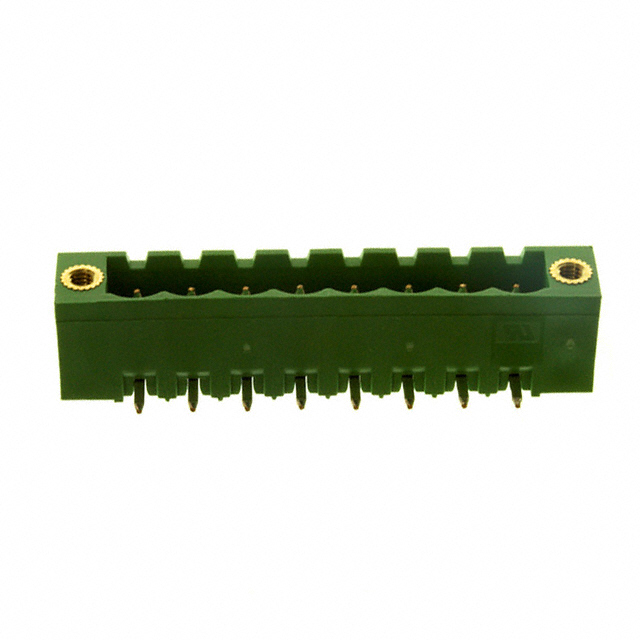

 TE Connectivity AMP Connectors | 0.329 in | 8.36 mm | Phosphor Bronze | 0.138 in | 3.5 mm | UL94 V-0 | 1 | 90° Right Angle | Header Male Pins Shrouded (4 Side) | Green | Through Hole | 300 V | Mating Flange | Tin | 0.197 in | 5 mm | -40 C | 110 °C | Solder | 8 | 8 |
 TE Connectivity AMP Connectors | 0.329 in | 8.36 mm | Phosphor Bronze | 0.138 in | 3.5 mm | UL94 V-0 | 1 | 90° Right Angle | Header Male Pins Shrouded (4 Side) | Green | Through Hole | 300 V | Mating Flange | Tin | 0.197 in | 5 mm | -40 C | 110 °C | Solder | 2 | 2 |
 TE Connectivity AMP Connectors | 0.329 in | 8.36 mm | Phosphor Bronze | 0.138 in | 3.5 mm | UL94 V-0 | 1 | 90° Right Angle | Header Male Pins Shrouded (4 Side) | Green | Through Hole | 300 V | Mating Flange | Tin | 0.197 in | 5 mm | -40 C | 110 °C | Solder | 6 | 6 |
