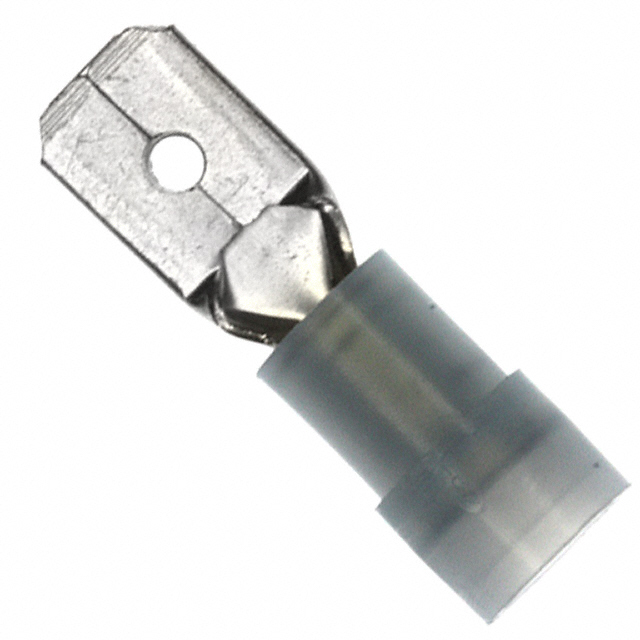

696369 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN QC TAB 14-16AWG 0.250 CRIMP
| Part | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation | Color | Contact Finish | Tab Width [x] | Tab Width [x] | Mounting Type | Length - Overall [x] | Length - Overall [x] | Terminal Type | Wire Gauge [Min] | Wire Gauge [Max] | Termination | Contact Material | Gender | Tab Thickness | Tab Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.115 in | 0.16 in | 4.06 mm | 2.92 mm | Non-Mating End Insulated | Blue | Tin | 6.35 mm | 0.25 in | Free Hanging (In-Line) | 23.14 mm | 0.911 in | Standard | 14 AWG | 16 AWG | Crimp | Brass | Male | 0.81 mm | 0.032 in |
