APCA Series

Catalog

POWER INDUCTORS - SMD CHILISIN POWER - INDUCTOR (IND) FERRITE SMD SHIELDED TYPE & ULTRA HIGH CURRENT

Part	Ratings	Package / Case	Inductance Frequency - Test	Shielding	Mounting Type	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)	Material - Core	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Current - Saturation (Isat)	Type	Inductance	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Current Rating (Amps)	DC Resistance (DCR)
Pulse Electronics APCA00070745331M00	AEC-Q200	Nonstandard	100 kHz	Shielded	Surface Mount	960 mOhm	0.189 "	4.8 mm	Ferrite	125 °C	-40 C	20 %	450 mA	Drum Core Wirewound	330 µH	0.276 in	7 mm	0.291 in	7.4 mm	580 mA
Pulse Electronics APCA000707451R0T00	AEC-Q200	Nonstandard	100 kHz	Shielded	Surface Mount	11.7 mOhm	0.189 "	4.8 mm	Ferrite	125 °C	-40 C	30 %	7.6 A	Drum Core Wirewound	1 µH	0.276 in	7 mm	0.291 in	7.4 mm	6.5 A
Pulse Electronics APCA000606452R2T00	AEC-Q200	Nonstandard	100 kHz	Shielded	Surface Mount	19.5 mOhm	0.189 "	4.8 mm	Ferrite	125 °C	-40 C	30 %	3.6 A	Drum Core Wirewound	2.2 µH	0.236 "	6 mm	0.248 in	6.3 mm	4.1 A

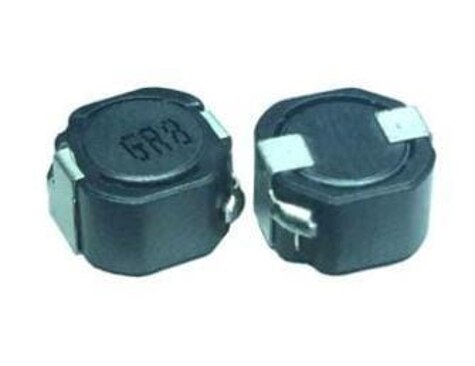

Pulse Electronics APCA00060645150M00	AEC-Q200	Nonstandard	100 kHz	Shielded	Surface Mount		0.189 "	4.8 mm	Ferrite	125 °C	-40 C	20 %	1.4 A	Drum Core Wirewound	15 µH	0.236 "	6 mm	0.248 in	6.3 mm	2 A	72 mOhm
Pulse Electronics APCA00060645100M00	AEC-Q200	Nonstandard	100 kHz	Shielded	Surface Mount	42 mOhm	0.189 "	4.8 mm	Ferrite	125 °C	-40 C	20 %	1.7 A	Drum Core Wirewound	10 µH	0.236 "	6 mm	0.248 in	6.3 mm	2.6 A
Pulse Electronics APCA00070745470M00	AEC-Q200	Nonstandard	100 kHz	Shielded	Surface Mount	156 mOhm	0.189 "	4.8 mm	Ferrite	125 °C	-40 C	20 %	1.1 A	Drum Core Wirewound	47 µH	0.276 in	7 mm	0.291 in	7.4 mm	1.7 A
Pulse Electronics APCA00060645331M00	AEC-Q200	Nonstandard	100 kHz	Shielded	Surface Mount	1.104 Ohm	0.189 "	4.8 mm	Ferrite	125 °C	-40 C	20 %	280 mA	Drum Core Wirewound	330 µH	0.236 "	6 mm	0.248 in	6.3 mm	490 mA
Pulse Electronics APCA000606453R3T00	AEC-Q200	Nonstandard	100 kHz	Shielded	Surface Mount	24.7 mOhm	0.189 "	4.8 mm	Ferrite	125 °C	-40 C	30 %	3.2 A	Drum Core Wirewound	3.3 µH	0.236 "	6 mm	0.248 in	6.3 mm	3.7 A
Pulse Electronics APCA000707451R5T00	AEC-Q200	Nonstandard	100 kHz	Shielded	Surface Mount	13 mOhm	0.189 "	4.8 mm	Ferrite	125 °C	-40 C	30 %	6.2 A	Drum Core Wirewound	1.5 µH	0.276 in	7 mm	0.291 in	7.4 mm	5.4 A
