UVQ-15 Series

Catalog

DC DC CONVERTER 15V 105W

Part	Package / Case	Voltage - Isolation	Applications	Number of Outputs	Power (Watts)	Voltage - Input (Min) [Min]	Mounting Type	Current - Output (Max) [Max]	Voltage - Output 1	Features	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Type	Control Features	Voltage - Input (Max) [Max]

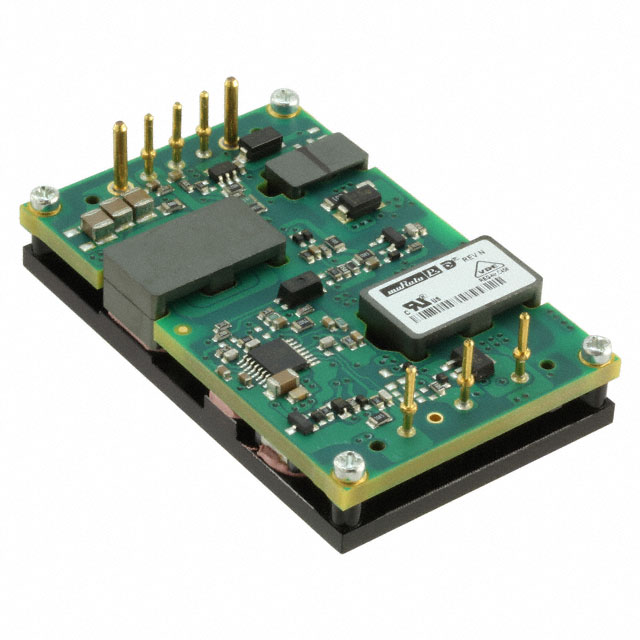

Murata Electronics UVQ-15/7-D24PB-C	8-DIP Module 1/4 Brick	2000 V	ITE (Commercial)	1	105 W	18 V	Through Hole	7 A	15 V	OCP OTP OVP Remote On/Off SCP UVLO	-40 C	110 °C	90.3 %	12.7 mm	36.8 mm	0.5 in	58.4 mm	2.3 in	1.45 in	Isolated Module	Active High Enable	36 V

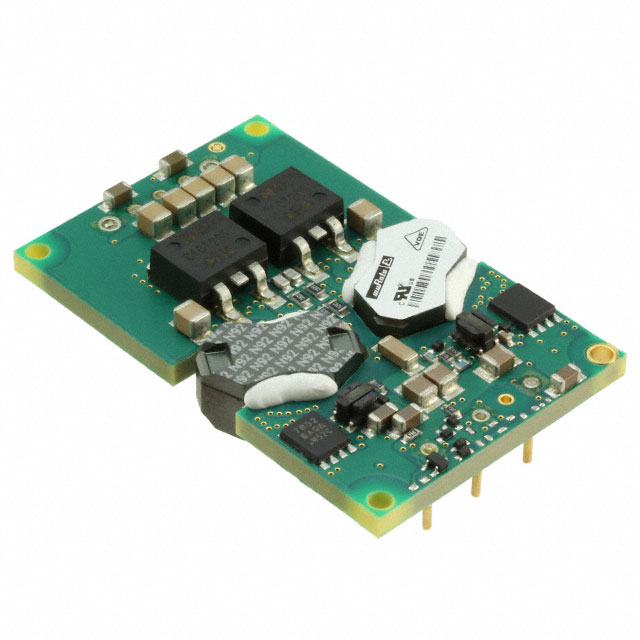

Murata Electronics UVQ-15/7-D24P-C	8-DIP Module 1/4 Brick	2000 V	ITE (Commercial)	1	105 W	18 V	Through Hole	7 A	15 V	OCP OTP OVP Remote On/Off SCP UVLO	-40 C	110 °C	90.3 %	10.7 mm	36.8 mm	0.42 "	58.4 mm	2.3 in	1.45 in	Isolated Module	Active High Enable	36 V
