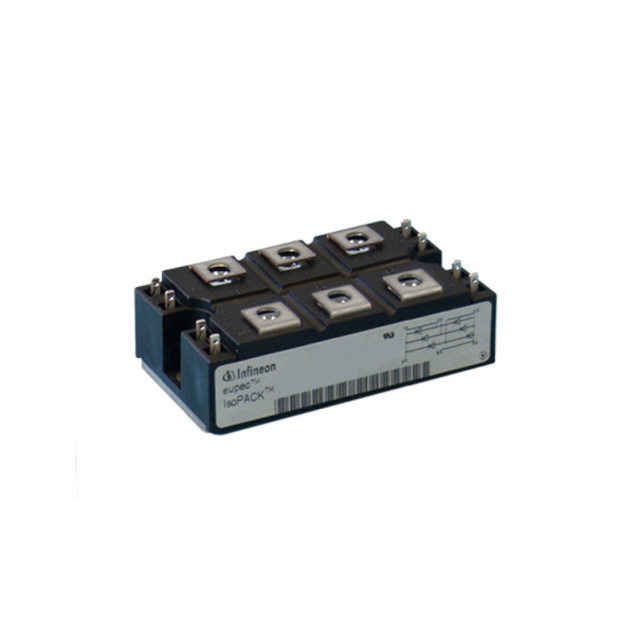

TTB6C135 Series

Manufacturer: INFINEON

Catalog

SCR MODULE 1.6KV 100A MODULE

Part	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Current - On State (It (AV)) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Number of SCRs, Diodes	Current - Gate Trigger (Igt) (Max) [Max]	Mounting Type	Current - Hold (Ih) (Max) [Max]	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - On State (It (RMS)) (Max) [Max]	Voltage - Off State
INFINEON TTB6C135N16LOFHOSA1	Module	125 °C	-40 C	173 A	1000 A	6 SCRs	150 mA	Chassis Mount	200 mA	2.5 V	100 A	1.6 kV
