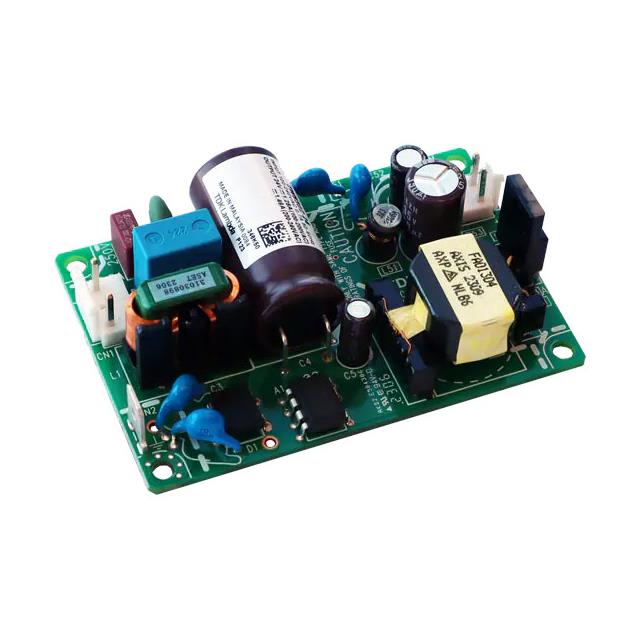

ZWS10-50C Series
Manufacturer: TDK Corporation
Beta
⌘K
AC/DC OPEN FRAME POWER SUPPLY (PSU), ITE, INDUSTRIAL & HOUSEHOLD, 1 OUTPUT, 20 W
| Part | Standard Number | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Applications | Voltage - Output 1 | Mounting Type | Voltage - Input [Max] | Voltage - Input [Min] | Features | Voltage - Isolation | Power (Watts) | Current - Output 1 | Type | Number of Outputs | Size / Dimension [z] | Size / Dimension [y] | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | 60335-1 62368-1 | 70 °C | -10 °C | 24.13 mm | 3 " | 50.8 mm | 76.2 mm | 2 in | 24.2 mm | Household Appliances ITE (Commercial) | 5 V | Chassis Mount | 265 VAC | 85 VAC | Universal Input | 3000 V | 20 W | 4 A | Open Frame | 1 | |||
 TDK Corporation | 60335-1 62368-1 | 70 °C | -10 °C | 0.87 in | 2.5 " | 63.5 mm | 1.8 in | Household Appliances ITE (Commercial) | 15 V | Chassis Mount | 265 VAC | 85 VAC | 3000 V | 20 W | 1.35 A | Open Frame | 1 | 22 mm | 45.7 mm | 84 % |
