PT06SE Series

Manufacturer: Amphenol Aerospace Operations

Catalog

PTSE 8C 8#20 SKT PLUG

Part	Backshell Material	Plating	Insert Material	Applications	Contact Material	Shell Finish	Ingress Protection	Fastening Type	Termination	Color	Shell Size - Insert Length	Shell Size - Insert Width	Number of Positions	Orientation	Mounting Type	Voltage Rating	Shielding	Primary Material	Contact Finish - Mating	Shell Material	Qualification	Connector Type	Features	Operating Temperature (Max)	Operating Temperature (Min)	Current Rating	Backshell Material, Plating	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Note	Contact Shape	Contact Size	Housing Color	Type	Contact Type
Amphenol Aerospace Operations PT06SE12-8S-470	Aluminum	Black Zinc Cobalt	Neoprene	Aerospace Communication Systems Industrial Instrumentation Mass Transit	Copper Alloy	Black Zinc Cobalt	Environment Resistant	Bayonet Lock	Crimp	Black	12 mm	8 mm	8	N (Normal)	Free Hanging (In-Line)	600 V	Unshielded	Metal	Gold	Aluminum	MIL-DTL-26482 Series I	Female Sockets Plug	Backshell Coupling Nut Strain Relief	125 °C	-55 °C
Amphenol Aerospace Operations PT06SE-14-19P(SR)			Neoprene	Aerospace Industrial Instrumentation Mass Transit Military	Copper Alloy	Cadmium Olive Drab Chromate	Environment Sealed	Bayonet Lock	Crimp	Olive Drab			19	N (Normal)	Free Hanging (In-Line)		Unshielded	Metal	Gold	Aluminum	MIL-DTL-26482 Series I	Male Pins Plug	Strain Relief	125 °C	-55 °C	7.5 A	Aluminum Olive Drab Cadmium	19	14 S
Amphenol Aerospace Operations PT06SE-10-6P(470)	Aluminum	Black Zinc Cobalt	Neoprene	Aerospace Industrial Instrumentation Mass Transit Military	Copper Alloy	Black Zinc Cobalt	Environment Sealed	Bayonet Lock	Crimp	Black	10 mm	6 mm	6	N (Normal)	Free Hanging (In-Line)		Unshielded	Metal	Gold	Aluminum	MIL-DTL-26482 Series I	Male Pins Plug	Strain Relief	125 °C	-55 °C	7.5 A
Amphenol Aerospace Operations PT06SE-16-26SLC			Neoprene			Cadmium Chromate	Environment Resistant	Bayonet Lock					26	N (Normal)	Free Hanging (In-Line)		Unshielded			Aluminum	MIL-DTL-26482 Series I	Plug Housing	Backshell Coupling Nut	125 °C	-55 °C			26	16 S	Contacts Not Included	Circular	20	Olive Drab	For Female Sockets	Crimp
Amphenol Aerospace Operations PT06SE8-33S-SR			Neoprene	Aerospace Industrial Instrumentation Mass Transit Military	Copper Alloy	Cadmium Olive Drab Chromate	Environment Resistant	Bayonet Lock	Crimp	Olive Drab			3	N (Normal)	Free Hanging (In-Line)		Unshielded	Metal	Gold	Aluminum	MIL-DTL-26482 Series I	Female Sockets Plug	Strain Relief	125 °C	-55 °C		Aluminum Olive Drab Cadmium	33	8
Amphenol Aerospace Operations PT06SE-12-10P(470)	Aluminum	Black Zinc Cobalt	Neoprene	Aerospace Industrial Instrumentation Mass Transit Military	Copper Alloy	Black Zinc Cobalt	Environment Sealed	Bayonet Lock	Crimp	Black	12 mm	10 mm	10	N (Normal)	Free Hanging (In-Line)		Unshielded	Metal	Gold	Aluminum	MIL-DTL-26482 Series I	Male Pins Plug	Strain Relief	125 °C	-55 °C	7.5 A

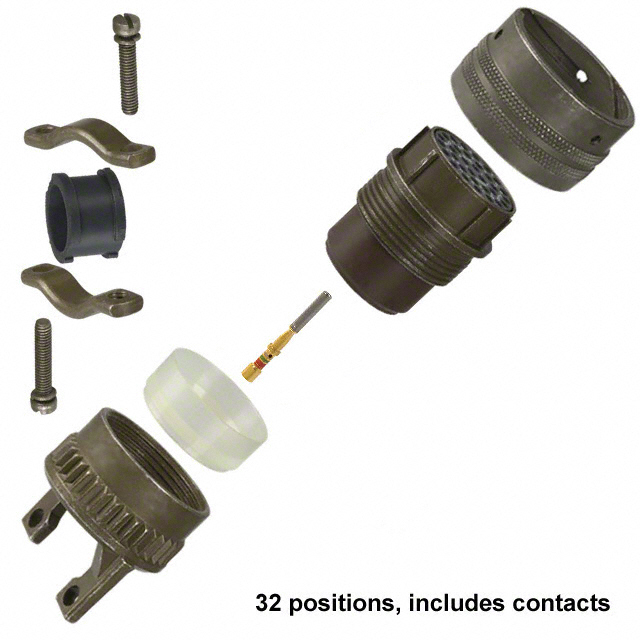

Amphenol Aerospace Operations PT06SE-18-32S(SR)			Neoprene	Aerospace Industrial Instrumentation Mass Transit Military	Copper Alloy	Cadmium Olive Drab Chromate	Environment Sealed	Bayonet Lock	Crimp	Olive Drab			32	N (Normal)	Free Hanging (In-Line)		Unshielded	Metal	Gold	Aluminum	MIL-DTL-26482 Series I	Female Sockets Plug	Strain Relief	125 °C	-55 °C	7.5 A	Aluminum Olive Drab Cadmium	32	18
Amphenol Aerospace Operations PT06SE-16-8S(470)	Aluminum	Black Zinc Cobalt	Neoprene	Aerospace Industrial Instrumentation Mass Transit Military	Copper Alloy	Black Zinc Cobalt	Environment Sealed	Bayonet Lock	Crimp	Black	16 mm	8 mm	8	N (Normal)	Free Hanging (In-Line)		Unshielded	Metal	Gold	Aluminum	MIL-DTL-26482 Series I	Female Sockets Plug	Strain Relief	125 °C	-55 °C	13 A
Amphenol Aerospace Operations PT06SE-24-61P(470)	Aluminum	Black Zinc Cobalt	Neoprene	Aerospace Industrial Instrumentation Mass Transit Military	Copper Alloy	Black Zinc Cobalt	Environment Sealed	Bayonet Lock	Crimp	Black			61	N (Normal)	Free Hanging (In-Line)		Unshielded	Metal	Gold	Aluminum	MIL-DTL-26482 Series I	Male Pins Plug	Strain Relief	125 °C	-55 °C	7.5 A		61	24
Amphenol Aerospace Operations PT06SE-12-8P			Neoprene	Aerospace Industrial Instrumentation Mass Transit Military	Copper Alloy	Cadmium Olive Drab Chromate	Environment Sealed	Bayonet Lock	Crimp	Olive Drab	12 mm	8 mm	8	N (Normal)	Free Hanging (In-Line)		Unshielded	Metal	Gold	Aluminum	MIL-DTL-26482 Series I	Male Pins Plug	Backshell Coupling Nut	125 °C	-55 °C		Aluminum Olive Drab Cadmium
