BAC1 Series

Catalog

AC/DC PCB MOUNT POWER SUPPLY (PSU), ITE, 1 OUTPUT, 1 W, 12 V, 83 MA

Part	Type	Number of Outputs	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Current - Output (Max) [Max]	Approval Agency	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input [Min]	Voltage - Input [Max]	Mounting Type	Applications	Efficiency	Voltage - Output 1	Standard Number	Power (Watts)

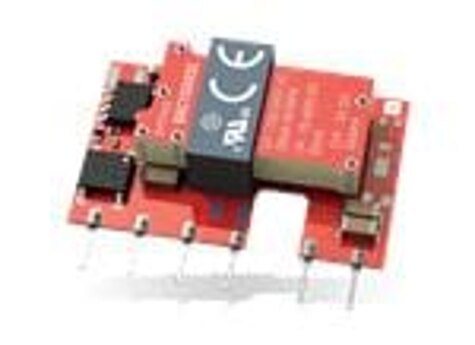

Murata Electronics BAC1S12SC	Open Frame	1	Universal Input	10 mm	1.32 in	0.84 in	33.5 mm	0.39 in	21.4 mm	83 mA	CE cURus DEMKO	12-SIP Module 6 Leads	85 °C	-40 C	70 VDC 85 VAC	305 VAC 400 VDC	Through Hole	Household Appliances ITE (Commercial) Medical	74 %	12 V
Murata Electronics BAC1S05SC	Open Frame	1	Universal Input	10 mm	1.32 in	0.84 in	33.5 mm	0.39 in	21.4 mm	200 mA	CE cURus DEMKO	12-SIP Module 6 Leads	85 °C	-40 C	70 VDC 85 VAC	305 VAC 400 VDC	Through Hole	Household Appliances ITE (Commercial) Medical	74 %	5 V
Murata Electronics BAC10S12DC	Enclosed	1	Universal Input	27.4 mm	1.52 in	0.65 in	38.6 mm	1.08 in	16.6 mm	830 mA	CE cURus	4-DIP Module	85 °C	-40 °C	85 VAC 120 VDC	264 VAC 370 VDC	Through Hole	ITE (Commercial) Medical		12 V	60601-1; 62368-1	10 W
Murata Electronics BAC1S24SC	Open Frame	1	Universal Input	10 mm	1.32 in	0.84 in	33.5 mm	0.39 in	21.4 mm	42 mA	CE cURus DEMKO	12-SIP Module 6 Leads	85 °C	-40 C	70 VDC 85 VAC	305 VAC 400 VDC	Through Hole	Household Appliances ITE (Commercial) Medical	73 %	24 V
