UHM-S095 Series
Manufacturer: 3M Electronic Specialty
Beta
⌘K

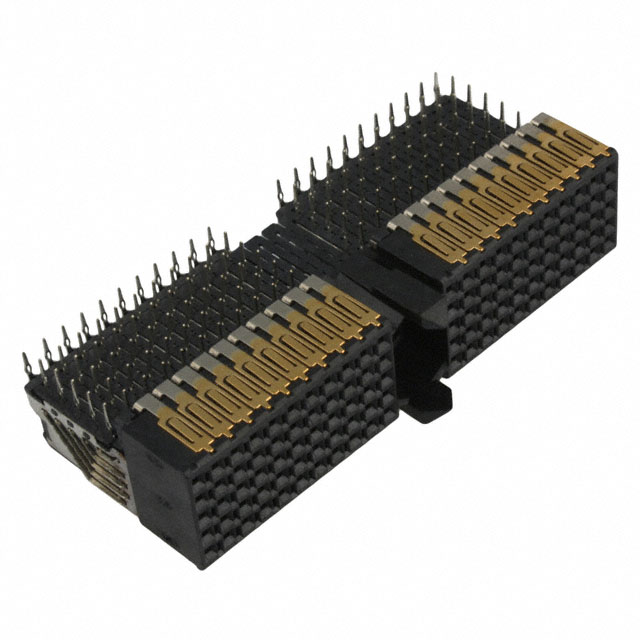

CONN RECEPT 95POS 2MM PRESS-FIT
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Features | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Number of Rows | Contact Finish | Connector Type | Number of Positions Loaded | Pitch [x] | Pitch [x] | Number of Positions | Termination | Connector Style | Connector Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 3M Electronic Specialty | -55 C | 125 °C | Upper and Lower Shield | 1 A | 30 Áin | 0.76 Ám | Right Angle Through Hole | 5 | Gold | Receptacle Female Sockets | All | 0.079 in | 2 mm | 95 | Press-Fit | B 19 | CompactPCI |
