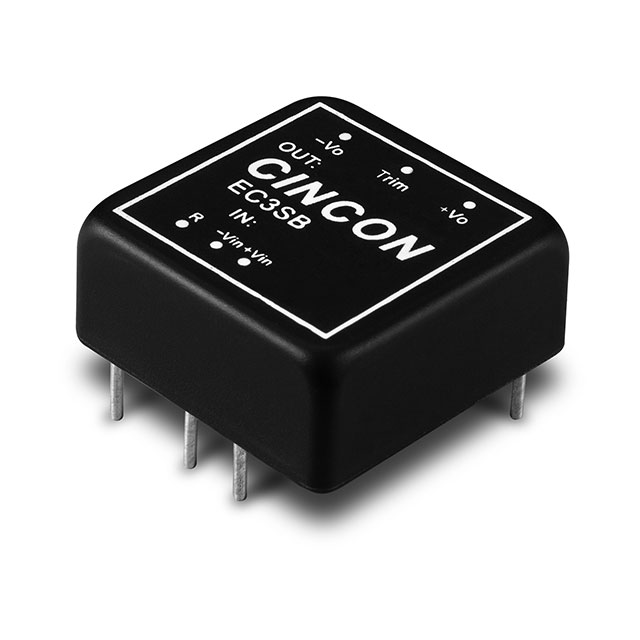

EC3SB Series
Manufacturer: Cincon Electronics Co. LTD
Beta
⌘K
DC DC CONVERTER 12V 15W
| Part | Voltage - Isolation | Current - Output (Max) [Max] | Voltage - Output 1 | Control Features | Type | Package / Case | Standard Number | Voltage - Input (Max) [Max] | Features | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Applications | Power (Watts) | Efficiency | Approval Agency | Mounting Type | Voltage - Input (Min) [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Number of Outputs | Voltage - Output 2 | Current - Output (Max) [Max] | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cincon Electronics Co. LTD | 1.5 kV | 1.25 A | 12 V | Active High Enable | Isolated Module | 6-DIP Module | 60950-1 | 36 V | OCP OVP Remote On/Off SCP UVLO | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | ITE (Commercial) | 15 W | 87 % | CE | Through Hole | 9 V | -40 °C | 85 °C | 1 | |||
 Cincon Electronics Co. LTD | 1.5 kV | 625 mA | 12 V | Active High Enable | Isolated Module | 6-DIP Module | 60950-1 | 18 V | OCP OVP Remote On/Off SCP UVLO | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | ITE (Commercial) | 15 W | 87 % | CE | Through Hole | 9 V | -40 °C | 105 C | 2 | -12 V | 625 mA | |
Cincon Electronics Co. LTD | 1.5 kV | 1.25 A | 12 V | Active High Enable | Isolated Module | 6-DIP Module | 60950-1 | 36 V | OCP OVP Remote On/Off SCP UVLO | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | ITE (Commercial) | 15 W | 90 % | CE | Through Hole | 18 V | -40 °C | 105 C | 1 | |||
Cincon Electronics Co. LTD | 1.5 kV | 3 A | 5 V | Active High Enable | Isolated Module | 6-DIP Module | 60950-1 | 36 V | OCP OVP Remote On/Off SCP UVLO | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | ITE (Commercial) | 15 W | 87 % | CE | Through Hole | 9 V | -40 °C | 85 °C | 1 | |||
Cincon Electronics Co. LTD | 1.5 kV | 625 mA | 12 V | Active High Enable | Isolated Module | 6-DIP Module | 60950-1 | 75 V | OCP OVP Remote On/Off SCP UVLO | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | ITE (Commercial) | 15 W | 87 % | CE | Through Hole | 18 V | -40 °C | 85 °C | 2 | -12 V | 625 mA | |
Cincon Electronics Co. LTD | 1.5 kV | 5 V | Active High Enable | Isolated Module | 6-DIP Module | 60950-1 | 18 V | OCP OVP Remote On/Off SCP UVLO | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | ITE (Commercial) | 15 W | 85 % | CE | Through Hole | 9 V | -40 °C | 105 C | 2 | -5 V | 1.5 A | ||
Cincon Electronics Co. LTD | 1.5 kV | 4 A | 3.3 V | Active High Enable | Isolated Module | 6-DIP Module | 60950-1 | 75 V | OCP OVP Remote On/Off SCP UVLO | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | ITE (Commercial) | 13 W | 86 % | CE | Through Hole | 36 V | -40 °C | 105 C | 1 | |||
Cincon Electronics Co. LTD | 1.5 kV | 5 V | Active High Enable | Isolated Module | 6-DIP Module | 60950-1 | 36 V | OCP OVP Remote On/Off SCP UVLO | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | ITE (Commercial) | 15 W | 85 % | CE | Through Hole | 9 V | -40 °C | 85 °C | 2 | -5 V | 1.5 A | ||

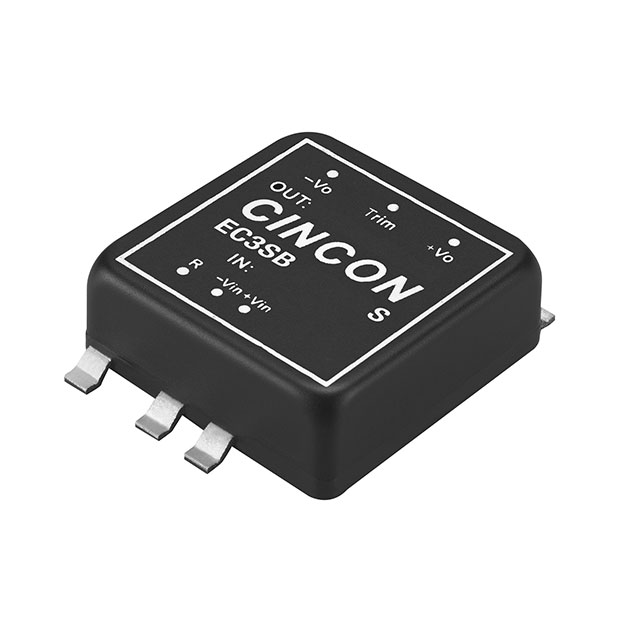

 Cincon Electronics Co. LTD | 1.5 kV | 4 A | 3.3 V | Active High Enable | Isolated Module | 6-SMD Module | 60950-1 | 18 V | OCP OVP Remote On/Off SCP UVLO | 1 " | 1 in | 25.4 mm | 9.2 mm | 0.36 in | 25.4 mm | ITE (Commercial) | 13 W | 85 % | CE | Surface Mount | 9 V | -40 °C | 105 C | 1 | |||
Cincon Electronics Co. LTD | 1.5 kV | 1 A | 15 V | Active High Enable | Isolated Module | 6-DIP Module | 60950-1 | 75 V | OCP OVP Remote On/Off SCP UVLO | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | ITE (Commercial) | 15 W | 87 % | CE | Through Hole | 18 V | -40 °C | 85 °C | 1 |
