BWCS Series

RF Inductors - SMD Chilisin RF inductor Wire Wound-STD

Manufacturer: Pulse Electronics

Catalog

RF Inductors - SMD Chilisin RF inductor Wire Wound-STD

Catalog

RF Inductors - SMD Chilisin RF inductor Wire Wound-STD

...

Part	Shielding	Q @ Freq [custom]	Q @ Freq [custom]	Frequency - Self Resonant	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR)	Inductance Frequency - Test	Inductance	Type	Current Rating (Amps)	Tolerance	Material - Core	Mounting Type	Q @ Freq	Package / Case	DC Resistance (DCR) [Max]	Frequency - Self Resonant [custom]	Supplier Device Package	Height - Seated (Max) [Max] [z]	Q @ Freq [custom]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]

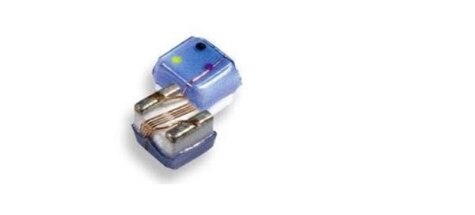

Pulse Electronics BWCS0023171539NK00	Unshielded	60	500 MHz	2 GHz	0805	125 °C	-40 C	0.093 in	2.35 mm	1.73 mm	0.068 "	1.52 mm	0.06 in	290 mOhm	250 MHz	39 nH	Drum Core Wirewound	0.5 A	10 %	Ceramic	Surface Mount
Pulse Electronics BWCS00161008R15J00	Unshielded			990 MHz	0603	125 °C	-40 C	0.063 "	1.6 mm	1.02 mm	0.04 in	1.02 mm	0.04 in		150 MHz	150 nH	Drum Core Wirewound	0.28 A	5 %	Ceramic	Surface Mount	28 150 MHz	1608 Metric	920 mOhm
Pulse Electronics BWCS00161008R18G00	Unshielded			990 MHz	0603	125 °C	-40 C	0.063 "	1.6 mm	1.02 mm	0.04 in	1.02 mm	0.04 in		100 MHz	180 nH	Wirewound	0.24 A	2 %	Ceramic	Surface Mount	25 100 MHz	1608 Metric	1.25 Ohm
Pulse Electronics BWCS00231715R62G00	Unshielded			220 MHz	0805	125 °C	-40 C	0.093 in	2.35 mm	1.73 mm	0.068 "	1.52 mm	0.06 in		25 MHz	620 nH	Drum Core Wirewound	0.21 A	2 %	Ceramic	Surface Mount	23 50 MHz		2.2 Ohm
Pulse Electronics BWCS0016100851NK00	Unshielded			1.9 GHz	0603	125 °C	-40 C	0.063 "	1.6 mm	1.02 mm	0.04 in	1.02 mm	0.04 in		200 MHz	51 nH	Drum Core Wirewound	600 mA	10 %	Ceramic	Surface Mount	38 200 MHz	1608 Metric	310 mOhm
Pulse Electronics BWCS0012070724NG00	Unshielded	25	250 MHz		0402 (1005 Metric)	125 °C	-40 C	0.047 in	1.19 mm	0.64 mm	0.025 in	0.66 mm			250 MHz	24 nH	Drum Core Wirewound	400 mA	2 %	Ceramic	Surface Mount			300 mOhm	2.7 GHz	0402	0.026 in
Pulse Electronics BWCS0012070716NG00	Unshielded		250 MHz	3.1 GHz	0402 (1005 Metric)	125 °C	-40 C	0.047 in	1.19 mm	0.64 mm	0.025 in	0.66 mm			250 MHz	16 nH	Drum Core Wirewound	0.56 A	2 %	Ceramic	Surface Mount			220 mOhm		0402	0.026 in	24
Pulse Electronics BWCS00292821R68K00	Unshielded			375 MHz	1008	125 °C	-40 C	0.115 "	2.92 mm	2.79 mm	0.11 "				25 MHz	0.68 µH	Drum Core Wirewound	400 mA	10 %	Ceramic	Surface Mount	45 100 MHz	2520 Metric	1.47 Ohm		1008	0.083 in		2.1 mm
Pulse Electronics BWCS004938342R7G00	Unshielded			160 MHz	1812 (4532 Metric)	125 °C	-40 C	0.195 "	4.95 mm	3.81 mm	0.15 "	0.135 in		3.2 Ohm	7.9 MHz	2.7 µH	Drum Core Wirewound	0.3 A	2 %	Ceramic	Surface Mount	50 MHz 60								3.43 mm
Pulse Electronics BWCS0012070756NK00	Unshielded			1.76 GHz	0402 (1005 Metric)	125 °C	-40 C	0.047 in	1.19 mm	0.64 mm	0.025 in	0.66 mm		970 mOhm	250 MHz	56 nH	Drum Core Wirewound	100 mA	10 %	Ceramic	Surface Mount	22 250 MHz				0402	0.026 in
