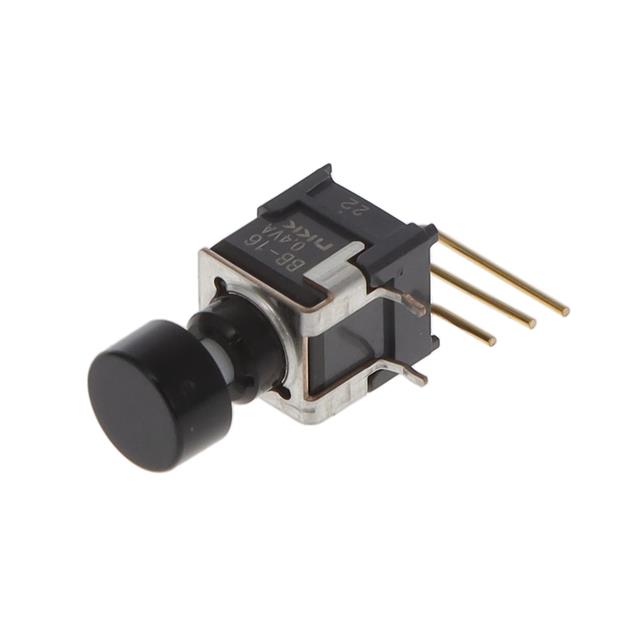

BB16AV Series
Manufacturer: NKK Switches
Beta
⌘K
PROCESS SEALED SUBMINIATURE ANTISTATIC PUSHBUTTON
| Part | Electrical Life | Mechanical Life | Mounting Type | Color - Actuator/Cap | Actuator Type | Termination Style | Voltage Rating - DC | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Voltage Rating - AC | Type | Current Rating (Amps) | Switch Function | Actuator Marking | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | 25000 Steps | Right Angle Through Hole Vertical | Red | Button Round | PC Pin | 28 V | 85 °C | -30 ░C | SPDT | 28 V | Standard | 0.4 VA | On-On | No Marking | Antistatic |
 NKK Switches | 25000 Steps | 25000 Steps | Right Angle Through Hole Vertical | Black | Button Round | PC Pin | 28 V | 85 °C | -30 ░C | SPDT | 28 V | Standard | 0.4 VA | On-On | No Marking | Antistatic |
NKK Switches | 25000 Steps | 25000 Steps | Right Angle Through Hole Vertical | White | Button Round | PC Pin | 28 V | 85 °C | -30 ░C | SPDT | 28 V | Standard | 0.4 VA | On-On | No Marking | Antistatic |
