ATS2012 Series

Manufacturer: Susumu

Catalog

HIGH FREQUENCY CHIP ATTENUATOR

Part	Power (Watts)	Attenuation Value	Package / Case	Impedance	Frequency Range (Max)
Susumu ATS2012-8DB-T1	100 mW	8 dB	0805 (2012 Metric)	50 Ohm	30 GHz
Susumu ATS2012-10DB-FD-T05	100 mW	10 dB	0805 (2012 Metric)	50 Ohm	55 GHz
Susumu ATS2012-07DB-FD-T1	100 mW	7 dB	0805 (2012 Metric)	50 Ohm	55 GHz
Susumu ATS2012-08DB-FD-T1	100 mW	8 dB	0805 (2012 Metric)	50 Ohm	55 GHz

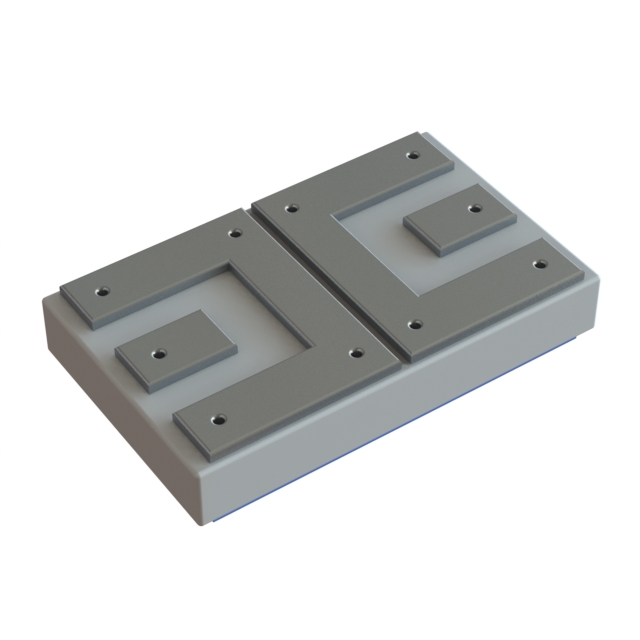

Susumu ATS2012-9DB-T05	100 mW	9 dB	0805 (2012 Metric)	50 Ohm	30 GHz

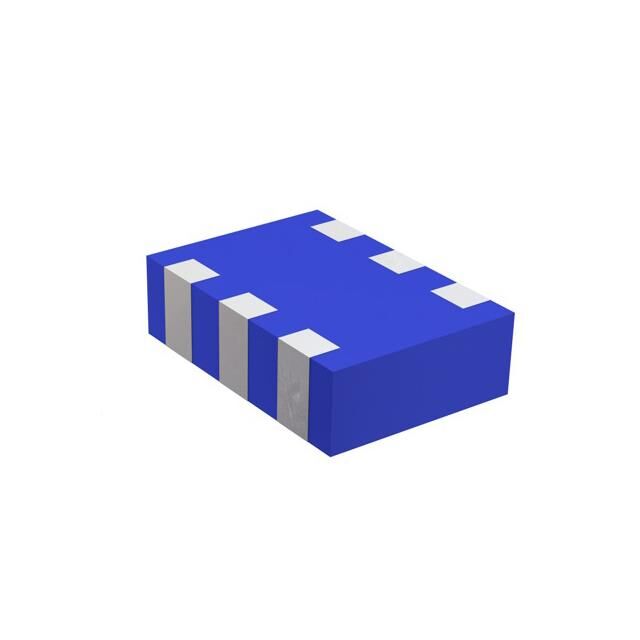

Susumu ATS2012-06DB-FD-T05	100 mW	6 dB	0805 (2012 Metric)	50 Ohm	55 GHz
Susumu ATS2012-02DB-FD-T05	100 mW	2 dB	0805 (2012 Metric)	50 Ohm	55 GHz
Susumu ATS2012-04DB-FD-T05	100 mW	4 dB	0805 (2012 Metric)	50 Ohm	55 GHz
Susumu ATS2012-05DB-FD-T1	100 mW	5 dB	0805 (2012 Metric)	50 Ohm	55 GHz
Susumu ATS2012-04DB-FD-T1	100 mW	4 dB	0805 (2012 Metric)	50 Ohm	55 GHz
