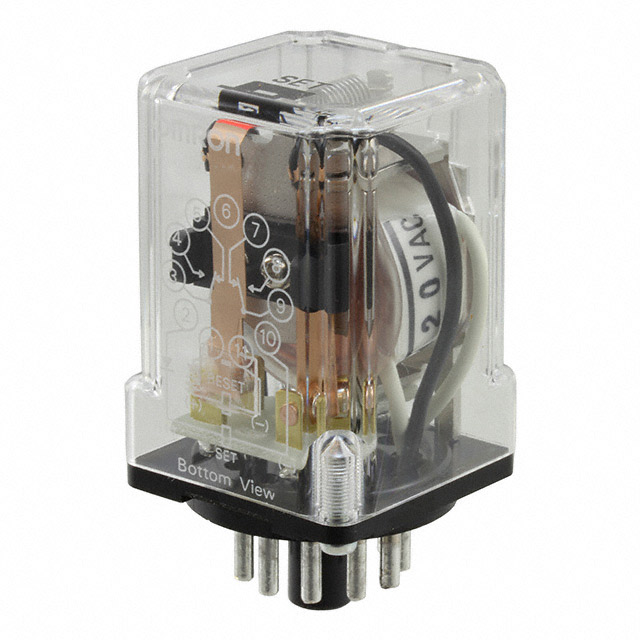

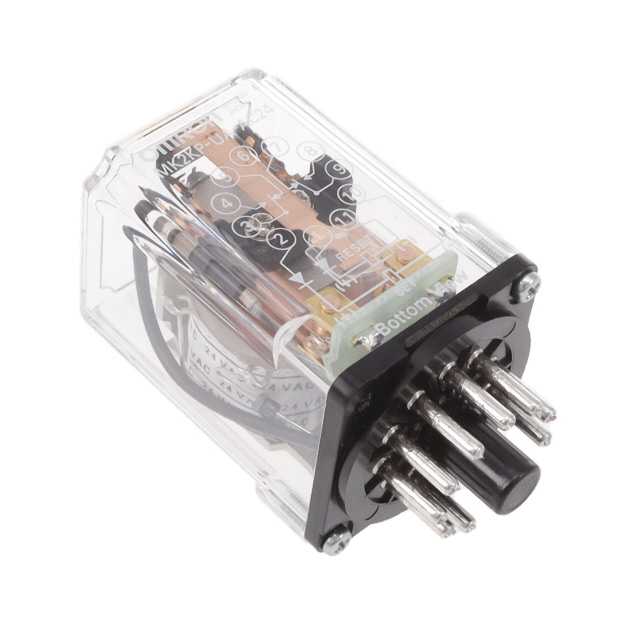

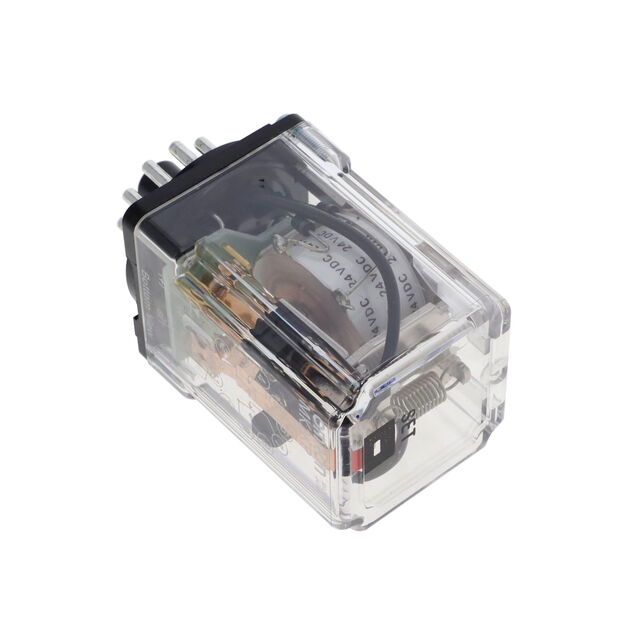

MK2KP Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE DPDT 5A 24V
| Part | Coil Type | Mounting Type | Contact Material | Contact Rating (Current) | Switching Voltage | Release Time | Contact Form | Load - Max Switching | Coil Current | Coil Voltage | Termination Style | Coil Resistance | Operate Time | Relay Type | Operating Temperature [Min] | Operating Temperature [Max] | Must Operate Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | Latching Dual Coil | Socketable | Silver (Ag) | 5 A | 250 VAC 250 VDC | 30 ms | DPDT (2 Form C) | 72 W 1100 VA | 66 mA | 24 VAC | Plug In 11 Pin (Octal) | 105 Ohms | 30 ms | General Purpose | -10 °C | 40 °C | 19.2 VAC |
Omron Electronics Inc-EMC Div | Latching Dual Coil | Socketable | Silver (Ag) | 5 A | 250 VAC 250 VDC | 30 ms | DPDT (2 Form C) | 72 W 1100 VA | 48.5 mA | 48 VDC | Plug In 11 Pin (Octal) | 990 Ohms | 30 ms | General Purpose | -10 °C | 40 °C | 38.4 VDC |
 Omron Electronics Inc-EMC Div | Latching Dual Coil | Socketable | Silver (Ag) | 5 A | 250 VAC 250 VDC | 30 ms | DPDT (2 Form C) | 72 W 1100 VA | 19 mA | 120 VAC | Plug In 11 Pin (Octal) | 1.9 kOhms | 30 ms | General Purpose | -10 °C | 40 °C | 96 VAC |
 Omron Electronics Inc-EMC Div | Latching Dual Coil | Socketable | Silver (Ag) | 5 A | 250 VAC 250 VDC | 30 ms | DPDT (2 Form C) | 72 W 1100 VA | 110 mA | 24 VDC | Plug In 11 Pin (Octal) | 210 Ohms | 30 ms | General Purpose | -10 °C | 40 °C | 19.2 VDC |
Omron Electronics Inc-EMC Div | Latching Dual Coil | Socketable | Silver (Ag) | 5 A | 250 VAC 250 VDC | 30 ms | DPDT (2 Form C) | 72 W 1100 VA | 12 mA | 220 VAC/DC | Plug In 11 Pin (Octal) | 18.3 kOhms | 30 ms | General Purpose | -10 °C | 40 °C | 176 VAC |
