CGS SQ Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

Catalog

SQMB10 R27 (WIRE) 5%

...

Part	Temperature Coefficient	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Resistance	Package / Case	Features	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Composition	Operating Temperature [Min]	Operating Temperature [Max]	Number of Terminations [custom]	Power (Watts)	Supplier Device Package	Size / Dimension [z]	Size / Dimension [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
TE Connectivity AMP Connectors SQMB10WBR27J	300 ppm/°C	5 %	10 mm	20 mm	0.787 "	0.394 in	270 mOhms	Radial	Cement Coated Flame Proof Moisture Resistant Safety	30 mm	1.181 "	Wirewound	-55 C	250 °C	2	10 W

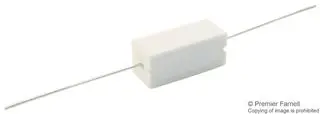

TE Connectivity AMP Connectors SQPR515KJ	300 ppm/°C	5 %	9 mm	10 mm	0.394 in	0.354 in	15 kOhms	Axial	Cement Coated Flame Proof Moisture Resistant Safety			Metal Oxide Film	-55 C	250 °C	2	5 W	Axial	22 mm	0.866 "
TE Connectivity AMP Connectors SQMW733RJ	300 ppm/°C	5 %	9 mm	13 mm	0.512 "	0.354 in	33 Ohms	Radial	Cement Coated Flame Proof Moisture Resistant Safety			Wirewound	-55 C	250 °C	2	7 W	Radial Lead			40 mm	1.575 in
TE Connectivity AMP Connectors SQPW5R022J	300 ppm/°C	5 %	9 mm	10 mm	0.394 in	0.354 in	22 mOhms	Axial	Cement Coated Flame Proof Moisture Resistant Safety			Wirewound	-55 C	250 °C	2	5 W	Axial	22 mm	0.866 "
TE Connectivity AMP Connectors SQPR5680RJ	300 ppm/°C	5 %	9 mm	10 mm	0.394 in	0.354 in	680 Ohms	Axial	Cement Coated Flame Proof Moisture Resistant Safety			Metal Film Metal Oxide Film	-55 C	250 °C	2	5 W	Axial	22 mm	0.866 "
TE Connectivity AMP Connectors SQBW5027RJ	300 ppm/°C	5 %	19 mm	90 mm	3.543 in	0.748 in	27 Ohms	Radial	Cement Coated Flame Proof Moisture Resistant Safety	19 mm	0.748 in	Wirewound	-55 C	250 °C		50 W
TE Connectivity AMP Connectors SQPW76R8J	300 ppm/°C	5 %	9 mm	10 mm	0.394 in	0.354 "	6.8 Ohms	Axial	Cement Coated Flame Proof Moisture Resistant Safety			Wirewound	-55 C	250 °C	2	7 W	Axial	35 mm	1.378 in
TE Connectivity AMP Connectors SQHW1020RF
TE Connectivity AMP Connectors SQPW5R22J	300 ppm/°C	5 %	9 mm	10 mm	0.394 in	0.354 in	220 mOhms	Axial	Cement Coated Flame Proof Moisture Resistant Safety			Wirewound	-55 C	250 °C	2	5 W	Axial	22 mm	0.866 "

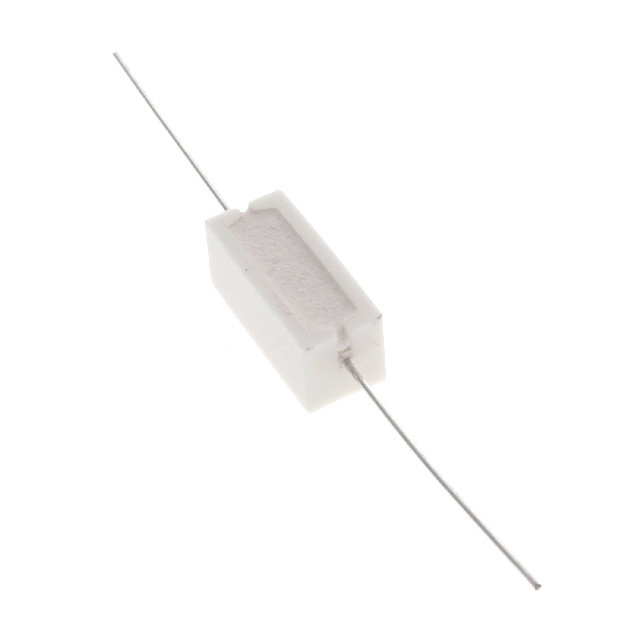

TE Connectivity AMP Connectors SQPW52R2J	300 ppm/°C	5 %	9 mm	10 mm	0.394 in	0.354 in	2.2 Ohms	Axial	Cement Coated Flame Proof Moisture Resistant Safety			Wirewound	-55 C	250 °C	2	5 W	Axial	22 mm	0.866 "
